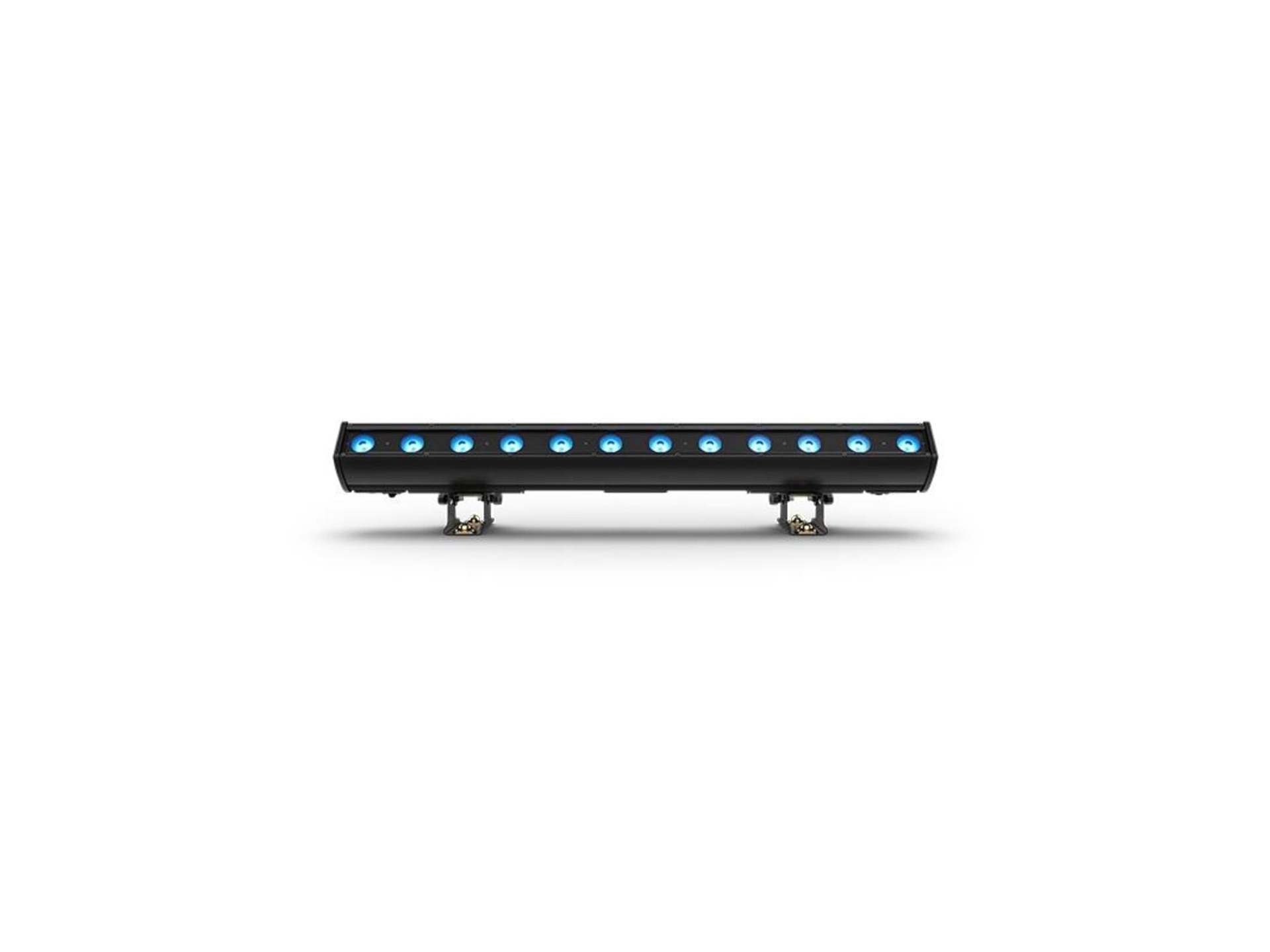

Chauvet DJ COLORdash Batten Hex 12XIP

Product #122439 | SKU COLORDASHBATTENH12XIP | Chauvet
In Stock with Supplier Usually ships in 3 - 5 working days what does this mean?
Our Price $1,709
In Stock with Supplier Usually ships in 3 - 5 working days what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 3 - 5 working days. Deliver to Auckland for $21 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 3 - 5 working days
Click & Collect

Features

  • Rugged RGBWA-UV LED batten
  • IP rated power
  • Adjustable PWM
  • Selectable, smooth dimming curves

Description

​The rugged Chauvet DJ COLORdash Batten Hex 12XIP linear wash with 12 individually-controllable hex-colored LEDs efficiently delivers a broad palette of subtle to saturated color with beautiful precision, weighing in under 18 lbs while delivering over 4,700 lumens of output. Flawlessly smooth 16-bit fades with four selectable dimming curves. Flicker-free output with multiple PWM frequencies. Maintains an even pixel pitch for perfect pixel mapped looks when used in multiples. Setup is easy with hanging brackets that double as floor stands. With RDM to remotely choose its DMX personality and an OLED display to easily read its onboard menu, COLORdash Batten H12X IP offers convenient operation and excellent performance as an IP65-rated all-weather die-cast workhorse at home in any environment, in the rig or on the floor, live or on camera, indoor or out.

Features
  • Rugged RGBWA-UV LED batten for events where indoor/outdoor flexibility is needed
  • At home in any weather conditions with IP rated power and DMX connections
  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
  • RDM (Remote Device Management) for added flexibility
  • Selectable, smooth dimming curves for eliminate flicker and choppiness in fades
  • Easy to read OLED display with password protection and touchscreen interface
  • Advanced optics provide exceptional color mixing and high efficiency
  • Floor trunions with omega bracket for easy hanging

Specifications

Optical
Light Source 12 LEDs (RGBAW+UV) 10 W, (532 mA), 50,000 hours life expectancy
Color Temperature (at full) 11567 K
Beam Angle 24.9°
Field Angle 40.7°
Lumens 4,796 lm
Illuminance (total) 881 lux @ 5 m
Selectable PWM 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz
Dynamic Effects
Dimmer Electronic
Shutter/Strobe Electronic
Strobe Rate 0 to 23 Hz
Standalone Color Mixing Yes
Color Temperature Presets Yes/No
Dim Modes 4
Built-in Automated Programs Yes
Physical
Dimensions: 39.4 x 8.129 x 3.78 in (1000 x 208 x 96 mm)
Weight 17.4 lb (8 kg)
Exterior Color Black
Housing Material Aluminum diecast
Connections
Power Connection Edison (local) plug to Seetronic Powerkon IP65
Power Input Seetronic Powerkon IP65
Power Output Seetronic Powerkon IP65
Data Connectors 3- and 5-pin XLR
Cable Length (power) 5 ft (1.5 m)
Control
Control Protocol DMX, RDM
DMX Channels 6, 8, 9, 13, 14, 42, 47 or 59
Modes/Personalities 8 personalities (6, 8, 9, 13, 14, 42, 47, 59)
Electrical
Input Voltage 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking 9 units @ 120 V; 16 units @ 208 V; 17 units @ 230 V
Power and Current 154 W, 1.284 A @ 120 V, 60 Hz
Power and Current 151 W, 0.741 A @ 208 V, 60 Hz
Power and Current 151 W, 0.667 A @ 230 V, 50 Hz

In The Box

  • Chauvet DJ COLORdash Batten Hex 12XIP
  • Neutrik powerCON TRUE1 power cord
  • Omega Bracket (2pc)
