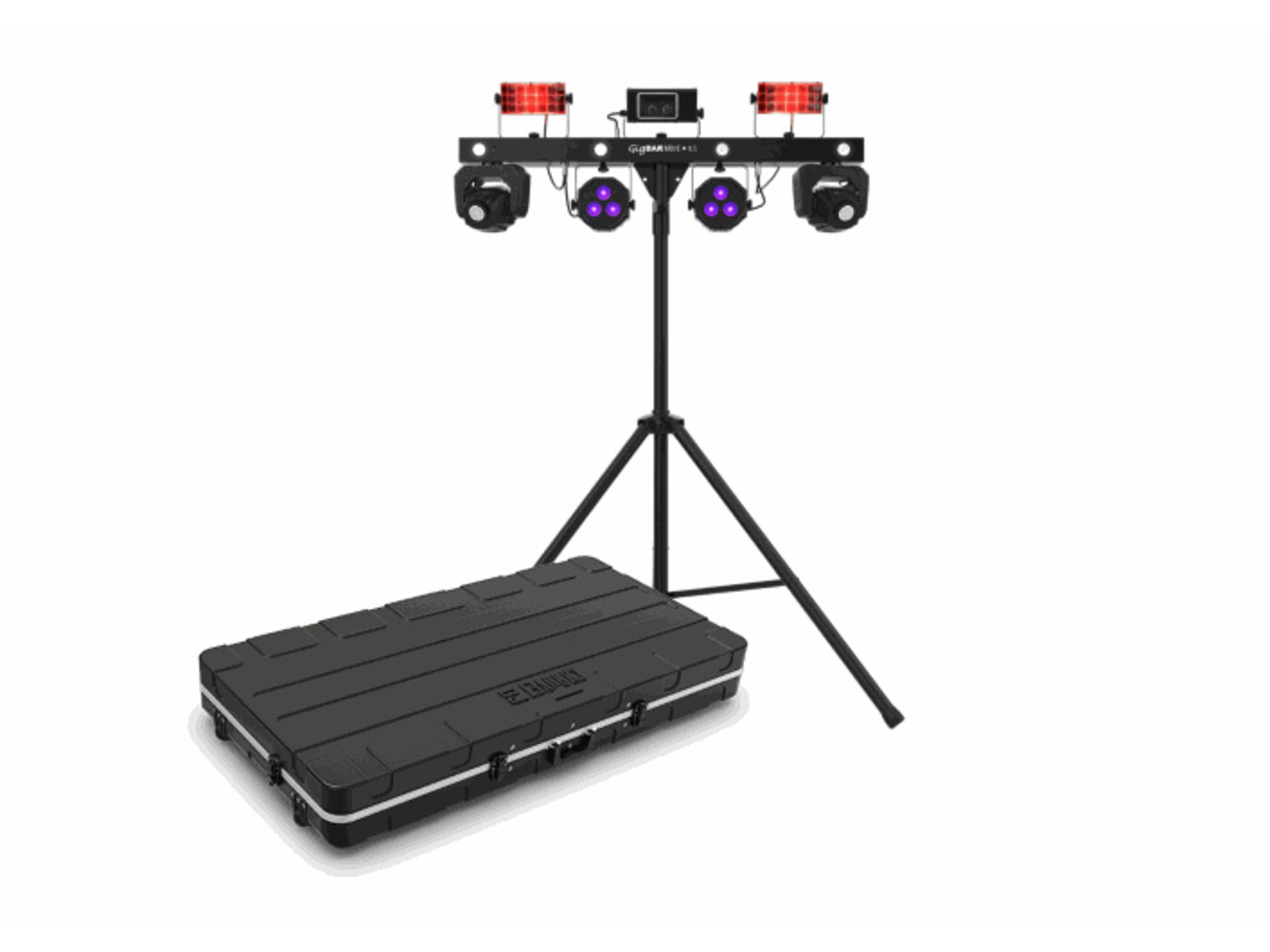

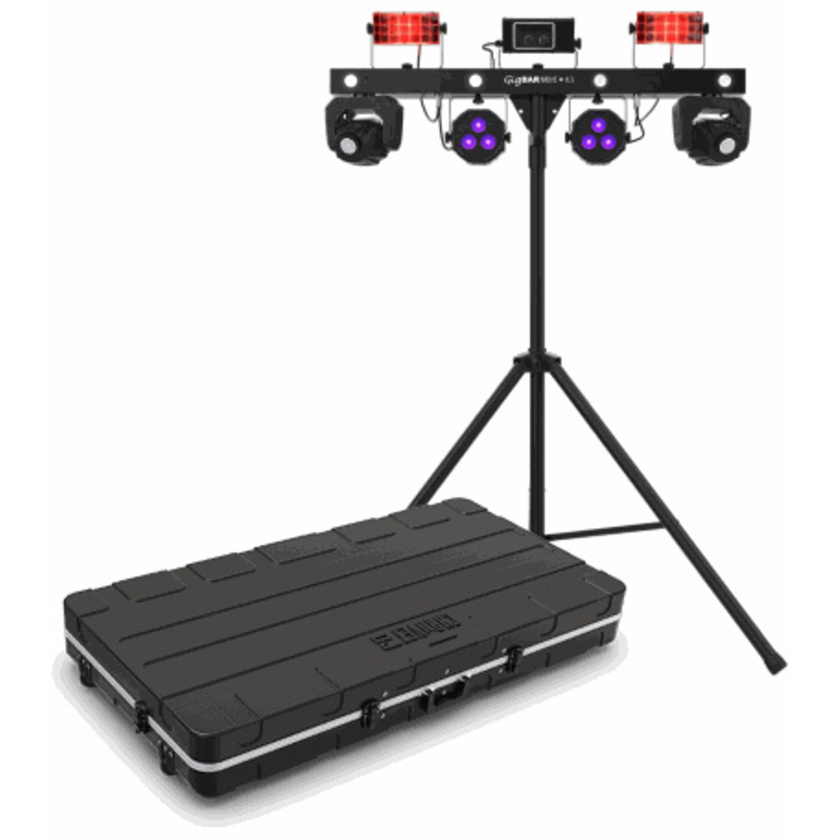

Chauvet DJ GigBAR Move + ILS 5-in-1 Lighting System Bundle

Product #115334 | SKU GigBAR Move PLUS with ILS + Hardcase | Chauvet
Usually ships in 2 - 3 weeks what does this mean?
Our Price $2,939
Usually ships in 2 - 3 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 weeks. Deliver to Auckland for $106 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 3 weeks
Click & Collect

Features

  • Integrated Lighting System (ILS)
  • 2 Moving Heads with Colour & Gobo Wheels
  • 2 RGBW LED Rotating Derby Effects
  • 2 RGBAW+UV LED Par Wash Lights
  • 4 Cool-White LED Strobes
  • 1 Laser with Red/Green/Blue Diodes

Description

The future of easy lighting synchronisation is here with the Chauvet DJ GigBAR Move + ILS 5-in-1 Lighting System with Moving Heads. This powerful member of the GigBAR family controls the Integrated Lighting System (ILS), the dynamic lighting technology that provides an advanced, coordinated light show across multiple fixture types. GigBAR Move + ILS can control any ILS-enabled fixture, wired or wirelessly. GigBAR Move + ILS is a 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar.

Easy navigation and access to all the powerful 32-watt moving head functions can be accessed directly from the full-color LCD display and Totem Mode keeps the moving heads focused on the dance floor. Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects. GigBAR Move + ILS gives you individual control of each effect to ensure your show looks the way you need it to, but gone is the need to aim a remote directly at the unit!

The included RF remote triggers built-in shows without needing line of sight operation. Other easy control options include stand-alone mode, DMX, or wireless footswitch. The GigBAR Move + ILS package includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup.

Key Features
  • Integrated Lighting System (ILS)
  • 2 Moving Heads with Colour & Gobo Wheels
  • 2 RGBW LED Rotating Derby Effects
  • 2 RGBAW+UV LED Par Wash Lights
  • 4 Cool-White LED Strobes
  • 1 Laser with Red/Green/Blue Diodes

Specifications

Light
Fixture Type Moving Head / PAR / Special Design
Number of Included Heads/Lights 6
Light Source PAR:
3 x Colour/UV LED - 6 W / 2 A
Strobe:
4 x White LED - 5 W / 1.2 A
Derby:
8 x Colour LED - 6.5 W / 2 A
Moving Head:
1 x White LED - 32 W / 3 A
Laser:
1 x Laser Diode - 30 mW
1 x Laser Diode - 20 mW
1 x Laser Diode - 50 mW
Light Source Life Expectancy 50,000 Hours
Colours PAR:
Amber, Blue, Green, Red, Ultraviolet, White
Strobe:
Cool White
Derby:
Blue, Green, Red, White
Moving Head:
Cool White
Laser Red: 638 nm / 30 mW
Green: 520 nm / 20 mW
Blue: 450 nm / 50 mW
Laser Class: 3R
Photometrics 111.9 fc / 1205 Lux at 6.6' / 2 m
Beam Angle PAR: 22°
Strobe: 30°
Moving Head: 17°
Field Angle PAR: 33°
Strobe: 62°
Shutter / Strobe Electronic
Dimming Electronic, 0 to 100%
Performance
Operating Modes Automatic, DMX, Sound-Active, Totem
Macros / Programmes Auto-Programme
Movement Macro
Sound-Active
Colour Change
Effects Strobe
Derby Effect
Strobe Rate 0 to 30 Hz
Gobos 9 x Gobo
Movement
Tilt Ranges 180°
Pan Ranges 540°
Pan/Tilt Inversion Yes
Control
Control Protocols DMX512
DMX Channel Modes 3 Mode(s):
3 / 28 / 50-Channel
Display / Controls LCD / 4-Button
Remote Control Footswitch (with Included Equipment)
IR Remote (with Included Equipment)
Mobile App Compatible No
*As of March, 2023: Cheque with manufacturer for the most up-to-date compatibility
Connectivity
Inputs/Outputs 1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output
Wireless Range Footswitch:
100' / 30.5 m
Power
AC Input Power 100 to 240 VAC, 50/60 Hz
AC Power Connector Input: 1 x IEC
Output: 1 x Edison
Fuse T 3.15 A 250 V
Power / Current Consumption 120 VAC, 60 Hz: 250 W / 3 A
230 VAC, 50 Hz: 79 W / 0.6 A
Power Linking 7 Units at 120 VAC
12 Units at 230 VAC
Environmental
Environmental Protection None
Physical
Mounting Tripod Stand & Top Bar
Included Accessories None
Duty Cycle None
Exterior Colour Black
Cooling Convection, Fan
Certifications COE, FCC
*as per Manufacturer
Dimensions 43 x 5.7 x 17.7" / 109.2 x 14.5 x 45 cm
Weight 31 lb / 14.1 kg (System)

In The Box

  • 1 X Chauvet DJ GIG BAR MOVE PLUS with ILS
  • 1 x Power Cord, RF Remote, Tripod, Footswitch
  • 1 x CHS-GBM Hard Case
