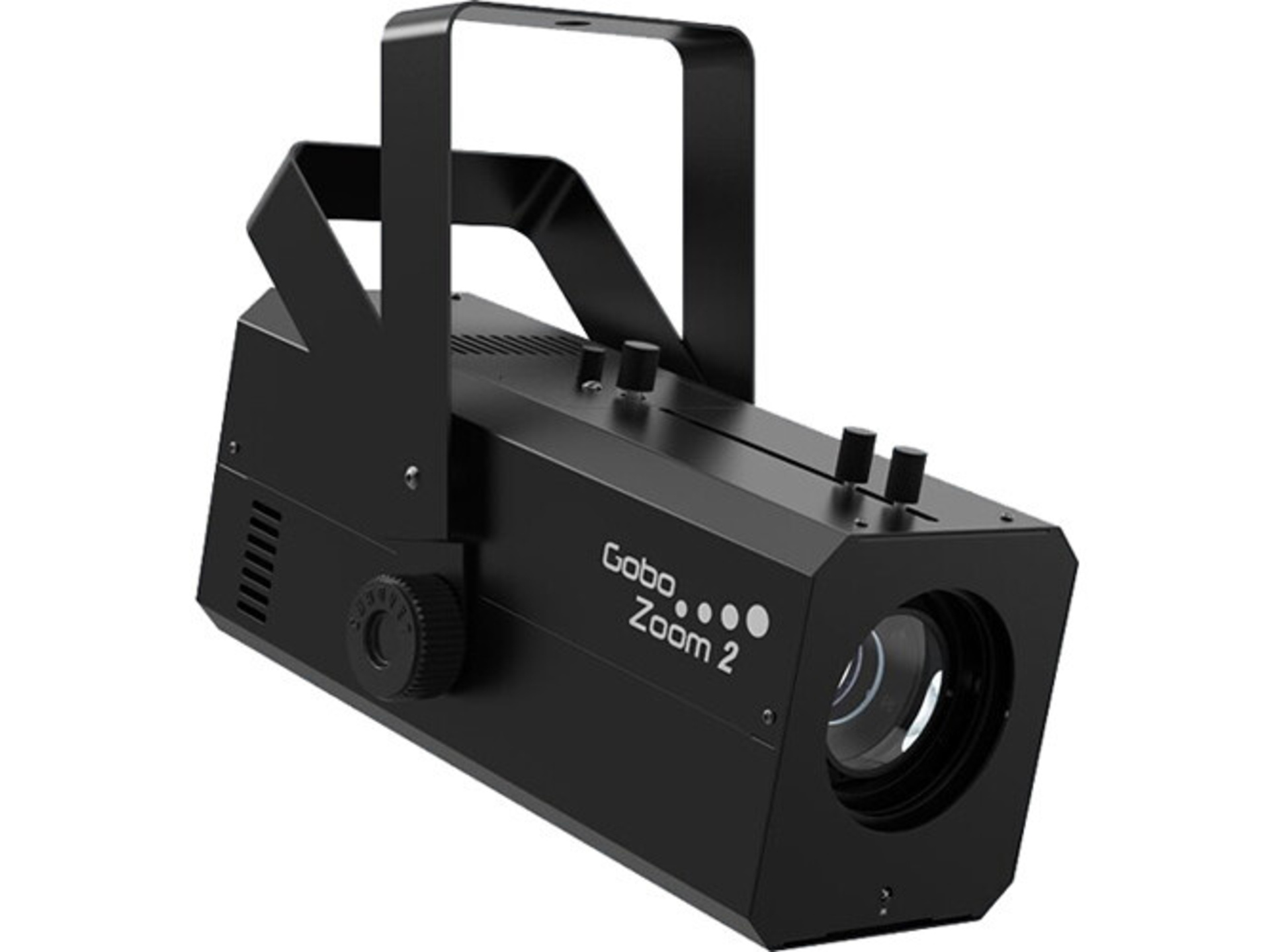

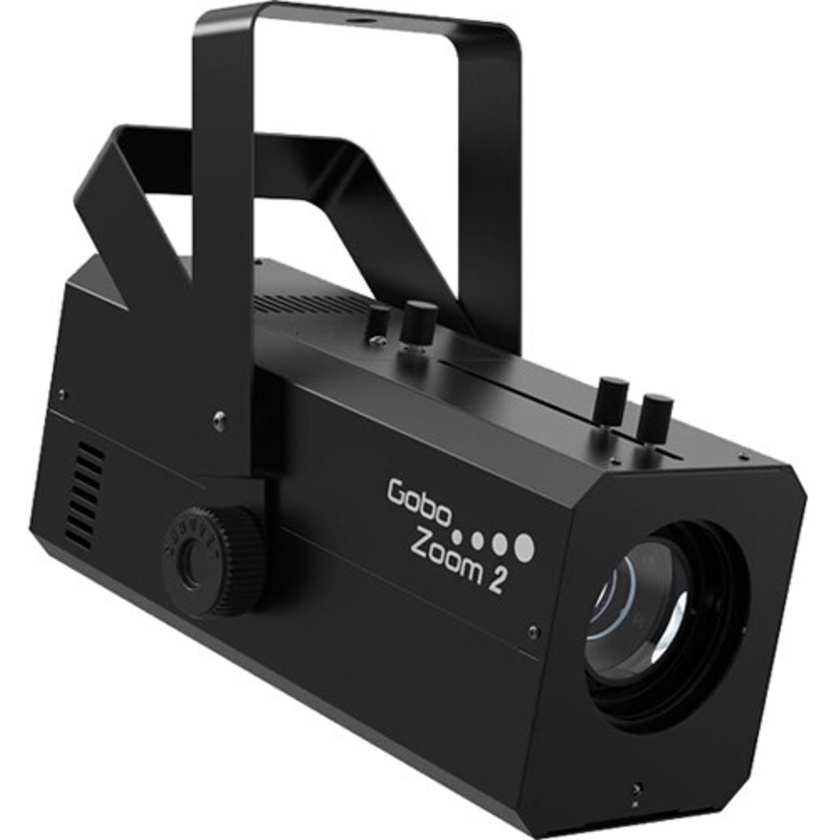

Chauvet DJ Gobo Zoom 2 Custom Gobo Projector

Product #115374 | SKU GOBOZOOM2 | Chauvet
In Stock with Supplier Usually ships in 3 - 5 working days what does this mean?
Our Price $629
In Stock with Supplier Usually ships in 3 - 5 working days what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 3 - 5 working days. Deliver to Auckland for $15 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 3 - 5 working days
Click & Collect

Features

  • Bright 70W Cool-White LED
  • Projects Custom Gobo Images on Surfaces
  • Manual Rotation Knob for Fast Indexing
  • Manual Zoom for Short or Long Throw
  • Includes 10 Popular Holiday Gobos
  • Optional IRC-6 Remote

Description

Excite your guests and patrons with the Chauvet DJ Gobo Zoom 2 Custom Gobo Projector. This high-powered 70W LED projector offers customized logos, icons, and other designs to create a unique atmosphere. Its easy setup and use make it a convenient choice. With a manual rotation knob, fast indexing is possible without removing the gobo, ensuring accurate positioning.

The Gobo Zoom 2 is a versatile effects fixture suitable for various venue types and event atmospheres. Its zoom settings can be easily adjusted using the convenient knob, allowing it to adapt to rooms of different sizes. When it comes to positioning, the preinstalled dual yoke provides options. It can suspend the unit from overhead rigs safely or act as a kickstand for floor or stage illumination.

Specifications

Key Specs
Fixture Type Gobo Projector
Light Source 1x White LED - 70 W
Colours Cool White
Beam Angle 21 to 38°
Control Protocols DMX512
AC Input Power 100 to 240 VAC, 50/60 Hz
Power / Current Consumption 120 VAC, 60 Hz: 74 W / 1 A
230 VAC, 50 Hz: 72 W / 0.6 A
Mounting Dual/Scissor Yoke
Light
Fixture Type Gobo Projector
Light Source 1x White LED - 70 W
Expected Lamp Life 50,000 Hours
Colours Cool White
Photometrics 21°:
2983 fc / 32,120 Lux at 3.3' / 1 m
38°:
988 fc / 10,640 Lux at 3.3' / 1 m
Lumen Output 2894 Lumens
Beam Angle 21 to 38°
Zoom Adjustment Manual
Performance
Operating Modes DMX, Standalone
Macros / Programmes No
Effects No
Gobos 1x Removable Gobo
Gobo Size Outer Diameter: 1.5" / 37.3 mm
Max Image Size: 0.9" / 22 mm
Max Thickness: 0" / 1 mm
Control
Control Protocols DMX512
DMX Channel Modes 1 Mode(s):
1-Channel
Display / Controls LCD / 4-Button
Remote Control IR Remote (with Optional Equipment)
Mobile App Compatible No
Connectivity
Inputs/Outputs 2 x XLR 3-Pin DMX Input/Output
Wireless No
Power
AC Input Power 100 to 240 VAC, 50/60 Hz
AC Power Connector Input: 1x IEC
Output: 1x Edison
Power / Current Consumption 120 VAC, 60 Hz: 74 W / 1 A
230 VAC, 50 Hz: 72 W / 0.6 A
Power Linking 7 Units at 120 VAC
14 Units at 230 VAC
Total Current: 8 A
Environmental
Environmental Protection No
Physical
Mounting Dual/Scissor Yoke
Included Accessories No
Duty Cycle No
Exterior Colour Black
Certifications COE
Dimensions 13 x 6 x 5.7" / 33 x 15.2 x 14.5 cm
Weight 5.8 lb / 2.6 kg

In The Box

  • Chauvet DJ Gobo Zoom 2 Custom Gobo Projector
  • Gobo Wheel with 10 Holiday Gobos
  • Power Cord

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Chauvet DJ Gobo Zoom 2 Custom Gobo Projector
  • Manufacturer: Chauvet
  • Model: GOBOZOOM2
  • SKU: GOBOZOOM2
  • RM Product #: 115374
