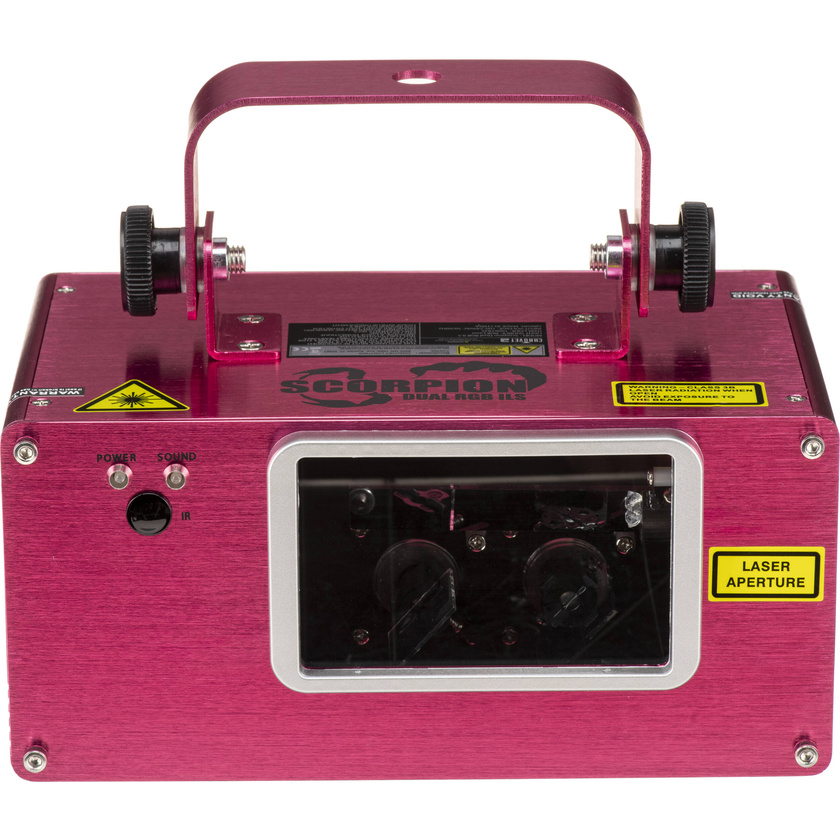

Chauvet DJ Scorpion Dual RGB ILS FAT BEAM Aerial Effect Laser

Product #104580 | SKU SCORPION DUALRGB ILS | Chauvet
In Stock with Supplier Usually ships in 3 - 5 working days what does this mean?
Our Price $579
In Stock with Supplier Usually ships in 3 - 5 working days what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 3 - 5 working days. Deliver to Auckland for $15 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 3 - 5 working days
Click & Collect

Features

  • Integrated Lighting System (ILS)
  • Red, Green, and Blue Laser Diodes
  • Dual Mirror Output
  • Scan and Speed Adjustment
  • 32 Built-In Patterns + Laser Sky Effect
  • Programmable Pan, Tilt, and Zoom Effects

Description

Let your lighting creativity run wild with the Chauvet DJ Scorpion Dual RGB ILS FAT BEAM Aerial Effect Laser, a Dual RGB FAT BEAM™ aerial effect laser that generates customised and ever-changing laser shows using programmable pan, tilt, and zoom effects with separate X, Y, and Z rolling effects and scan speed adjustment. This laser features 32 built-in patterns, including the popular “Laser Sky” effect offers perfect color combinations by mixing red, green, and blue laser diodes. Its unique dual mirror output makes a great centrepiece or side accent in pairs.

Scorpion Dual RGB ILS has ILS compatibility with the cutting-edge Integrated Lighting System (ILS) that makes creating coordinated light shows across different fixture types easy. D-Fi™ USB compatibility is also on board for wireless Master/Slave or DMX control. Scorpion Dual RGB ILS is fully FDA compliant, variance-free, and ready to use right out of the box. Easily operate Scorpion Dual RGB ILS in automatic, Master/Slave, manual or sound-activated mode. Wireless control is also possible using the optional IRC-6 remote.

Key Features
  • Dual RGB FAT BEAM™ aerial effect laser, perfect for events with fog or haze
  • D-Fi™ USB compatibility for wireless Master/Slave or DMX control
  • Create perfect color combinations by mixing red, green, and blue laser diodes
  • Unique dual mirror output that makes a great centerpiece or side accent in pairs
  • 32 built-in patterns, including the popular “Laser Sky” effect
  • Wireless control using the optional IRC-6 remote
  • Generate customized and ever-changing laser shows using programmable pan, tilt, and zoom effects with separate X, Y, and Z rolling effects and scan speed adjustment
  • Fully FDA compliant, variance-free and ready to use right out of the box
  • Easily operate in automatic, Master/Slave, manual or sound-activated mode

Specifications

Light
Fixture Type Special Design
Light Source 3 x Laser Diode
Colours Red, Green, Blue
Laser Red: 638 nm / 30 mW
Green: 520 nm / 20 mW
Blue: 450 nm / 50 mW
Coverage Angle 36°
Zoom Adjustment 1 to 29°
Dimming None
Performance
Operating Modes Automatic, Primary/Secondary, Sound-Active
Macros / Programmes Laser Pattern
Effects Shapes
Strobe Rate 0 to 27 Hz
Gobos None
Movement
Tilt Ranges 30°
Pan Ranges 30°
Control
Control Protocols DMX512
DMX Channel Modes 1 Mode(s):
10-Channel
Display / Controls LED / 4-Button
Remote Control IR Remote (with Optional Equipment)
Connectivity
Inputs/Outputs 1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output
Power
AC Input Power 100 to 240 VAC, 50/60 Hz
AC Power Connector Input: 1 x IEC
Output: 1 x Edison
Plug Type: NEMA 5-15
Fuse T 3.15 A 250 V
Power / Current Consumption 120 VAC, 60 Hz: 20 W / 0.3 A
230 VAC, 50 Hz: 19 W / 0.2 A
Power Linking 27 Units at 120 VAC
48 Units at 230 VAC
Environmental
IP Rating None
Environmental Protection None
Operating Temperature 59 to 95°F / 15 to 35°C
Physical
Mounting Mounting Bracket
Included Accessories 1 x Power Cable
Exterior Colour Pink
Cooling Fan
Certifications COE, RoHS
*as per Manufacturer
Dimensions 8.5 x 6.3 x 7" / 21.6 x 16.1 x 18 cm
Weight 3.8 lb / 1.7 kg

In The Box

  • CHAUVET DJ Scorpion Dual RGB ILS FAT BEAM Aerial Effect Laser
  • Power Cord

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Chauvet DJ Scorpion Dual RGB ILS FAT BEAM Aerial Effect Laser
  • Manufacturer: Chauvet
  • Model: SCORPION DUALRGB ILS
  • SKU: SCORPION DUALRGB ILS
  • RM Product #: 104580
