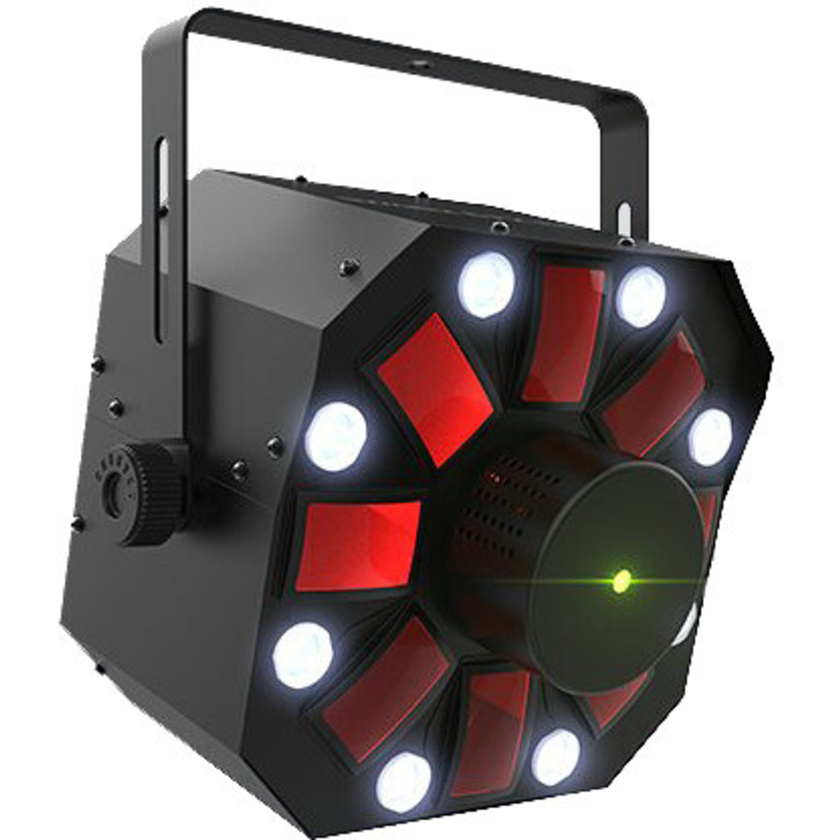

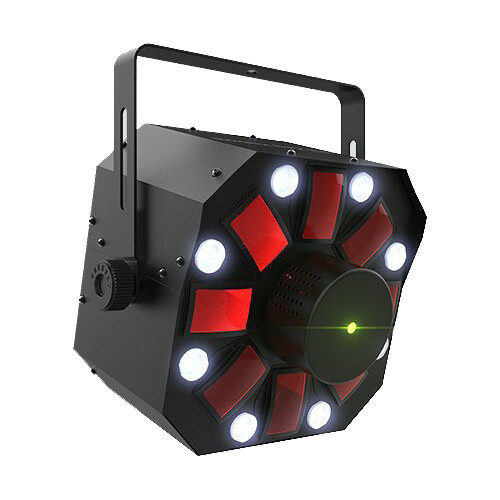

Chauvet DJ Swarm 5 FX ILS 3-in-1 Multi-Effects with Derby, Lasers, and Strobe

Product #104537 | SKU SWARM5FX ILS | Chauvet
In Stock with Supplier Usually ships in 3 - 5 working days what does this mean?
Our Price $489
In Stock with Supplier Usually ships in 3 - 5 working days what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 3 - 5 working days. Deliver to Auckland for $21 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 3 - 5 working days
Click & Collect

Features

  • Integrated Lighting System (ILS)
  • RGBAW Rotating Derby
  • Red and Green Laser
  • White Strobe Effect
  • Separate Colour and Programme Control
  • Digital Display for Navigating Programmes

Description

Your parties deserve the excitement of the Chauvet DJ Swarm 5 FX ILS 3-in-1 Multi-Effects with Derby, Lasers, and Strobe. This 3-in-1 LED light that includes an RGBAW rotating derby, red/green laser, and white strobe effect and compatibility with the cutting edge Integrated Lighting System (ILS) that makes creating coordinated light shows across different fixture types easy. Swarm 5 FX ILS also features D-Fi USB compatibility for wireless Master/Slave or DMX control. Flexibility is even greater with automated and sound-activated programs, or Master/Slave and DMX modes and separate color and program control.

Key Features
  • 3-in-1 LED light that includes an RGBAW rotating derby, red/green laser, and white strobe effect
  • ILS compatibility for use in the ILS ecosystem
  • D-Fi USB compatibility for wireless Master/Slave or DMX control
  • Laser projects thousands of red and green laser beams
  • Operation allows for separate color and program control
  • Increase control options using automated and sound-activated programs, or Master/Slave and DMX modes
  • Save time running cables and extension cords by power linking multiple units

Specifications

Light
Fixture Type Special Design
Light Source 5 x Colour LED - 3 W / 300 mA
8 x White LED - 1 W / 300 mA
1 x Laser Diode - 100 mW
1 x Laser Diode - 30 mW
Light Source Life Expectancy 50,000 Hours
Colours Red, Green, Blue, Amber, White
Laser Green: 520 nm / 30 mW
Red: 650 nm / 100 mW
Photometrics 76.5 fc / 823 Lux at 6.5' / 2 m
Coverage Angle 100° (Laser)
65° (Swarm)
Beam Angle 17° (Strobe)
Field Angle 35° (Strobe)
Shutter / Strobe Electronic
Performance
Operating Modes DMX, Primary/Secondary, Sound-Active, Standalone
Macros / Programmes Auto-Programme
Strobe Effect Macro
Colour Macro
Effects Strobe
Strobe Rate 0 to 20 Hz
Gobos None
Control
Control Protocols DMX512
DMX Channel Modes 1 Mode(s):
9-Channel
Display / Controls LED / 4-Button
Remote Control None
Connectivity
Inputs/Outputs 1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output
Power
AC Input Power 100 to 240 VAC, 50/60 Hz
AC Power Connector Input: 1 x IEC
Output: 1 x Edison
Power / Current Consumption 120 VAC, 60 Hz: 62 W / 0.5 A
230 VAC, 50 Hz: 66 W / 0.3 A
Power Linking 15 Units at 120 VAC
26 Units at 230 VAC
Environmental
IP Rating None
Environmental Protection None
Physical
Mounting Single Yoke Only
Included Accessories 1 x Power Cable
Duty Cycle None
Exterior Colour Black
Cooling Convection
Certifications COE, RoHS,
*as per Manufacturer
Dimensions 9.75 x 11.7 x 12.2" / 248 x 298 x 310 mm
Weight 9.8 lb / 4.5 kg

In The Box

  • Chuavet DJ Swarm 5 FX ILS 3-in-1 Multi-Effects with Derby, Lasers, and Strobe
  • Power Cord
