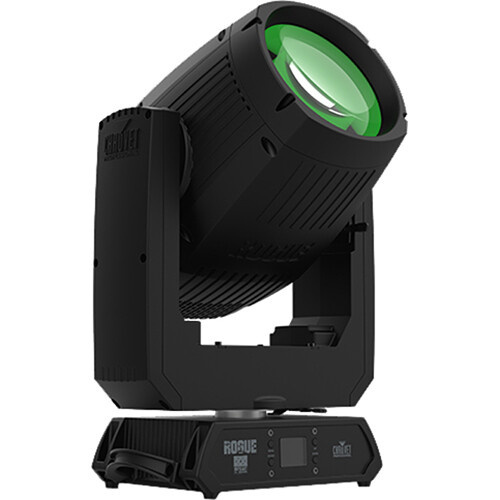

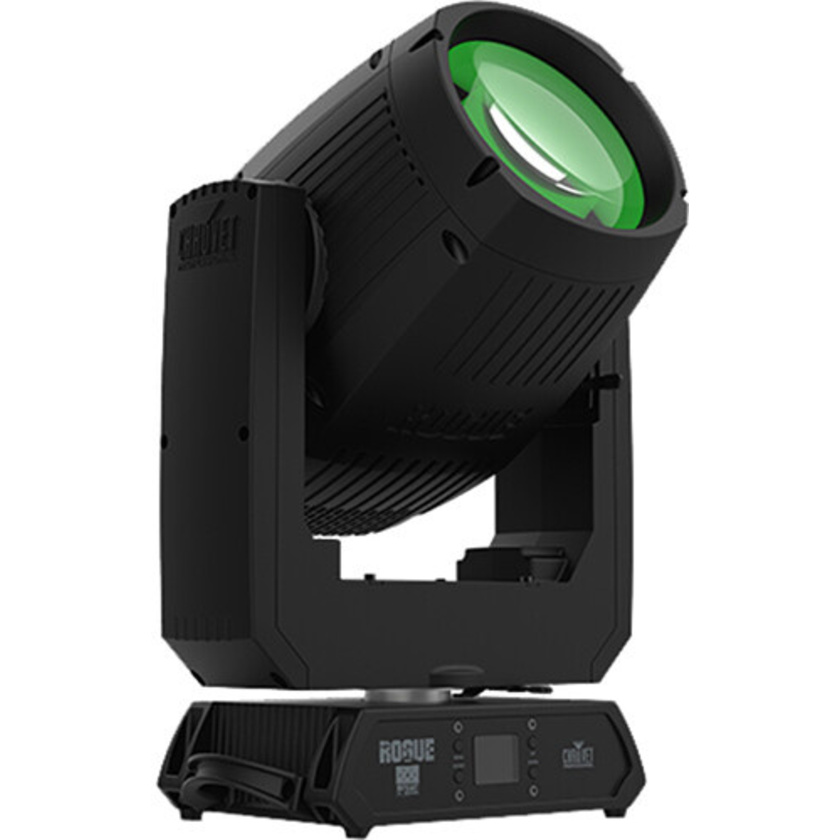

Chauvet Professional Rogue Outcast 1L Beam Outdoor-Ready IP65 Beam Moving Head

Product #105322 | SKU ROGUE OUTCAST 1L BM | Chauvet
Usually ships in 2 - 3 weeks what does this mean?
Our Price $4,739
Usually ships in 2 - 3 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 weeks. Deliver to Auckland for $34 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 3 weeks
Click & Collect

Features

  • Bright Cool-White LED, 140W
  • Rugged Housing, IP65 Rated
  • Beam Angle: 1.4° / Field Angle: 1.7°
  • Pan and Tilt: 540° / 270°
  • Colours: 14 + White, Solid/Split, Scroll
  • Gobos: 7 Static and 7 Rotating + Open

Description

The Chauvet Professional Rogue Outcast 1L Beam Outdoor-Ready IP65 Beam Moving Head is a lightweight IP65 beam that packs a punch with speed and precision. Its tight 1.4° beam projects extremely focused aerial effects. Create dynamic midair looks with this fully-featured fixture that includes a color wheel, single gobo wheel (with both rotating and static gobos), layer-able dual prisms and frost. Its durable alloy housing not only weathers outdoor elements but also brings advantages to indoor installations with a low-maintenance design that withstands particulates such as fog and haze.

Key Features
  • Fully featured, high powered IP65 rated LED beam fixture
  • Lightweight and durable aluminium/magnesium alloy body
  • Fast and precise movement of pan and tilt functions
  • Individually controllable and layerable 5- and 8-facet prisms
  • Frost for softening beam edges and effects
  • 5-pin DMX input/output connections
  • Tight 1.4° beam for extremely focused areal effects
  • RDM enabled for remote addressing and troubleshooting
  • 7 rotating and 7 static gobos on one wheel for dynamic gobo effects
  • Easy to read OLED display with simple, effective menu options
  • Simple and complex DMX channel profiles for programming versatility
  • USB-C port for uploading software

Specifications

Light
Fixture Type Moving Head
Light Source 1 x White LED - 140 W / 4 A
Light Source Life Expectancy 50,000 Hours
Colours Blue, CTB (Colour Temperature Blue), CTO (Colour Temperature Orange), Cyan, Magenta, Orange, Pink, Red, Split Colours, White
Photometrics 20,871.8 fc / 224,670 Lux at 16.4' / 5 m
Colour Temperature 6928K
Lumen Output 5500 Lumens (Source)
3218 Lumens (Output)
Beam Angle 1.4°
Field Angle 1.7°
Shutter / Strobe Electronic
Focus Motorised
Dimming 16-Bit Electronic, 0 to 100%
Prism 5-Facet Linear (Rotating)
8-Facet Linear (Rotating)
Performance
Operating Modes Automatic, Colour Change, Colour Dimmer, DMX, Static Colour
Macros / Programmes None
Effects Light Beams
Strobe
Gobos 14 x Removable Metal Gobo
Gobo Size Outer Diameter: 0.4" / 9.8 mm
Max Image Size: 0.2" / 5 mm
Max Thickness: 0" / 0.6 mm
Movement
Tilt Ranges 270° / 180° / 90°
Pan Ranges 540° / 360° / 180°
Control
Control Protocols DMX512, RDM
DMX Channel Modes 2 Mode(s):
17 / 19-Channel
Display / Controls LCD / 4-Button
Remote Control None
Mobile App Compatible No
*As of April, 2023: Cheque with manufacturer for the most up-to-date compatibility
Connectivity
Inputs/Outputs 1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output
Power
AC Input Power 100 to 240 VAC, 50/60 Hz
AC Power Connector Input: 1 x powerCON TRUE1
Output: None
Plug Type: NEMA 1-15
Cord Length: 6' / 1.8 m
Power / Current Consumption 120 VAC, 60 Hz: 233 W / 2.08 A
208 VAC, 60 Hz: 226 W / 1.15 A
230 VAC, 50 Hz: 223 W / 1.04 A
Environmental
IP Rating IP65
Environmental Protection Advertised as Weather Resistant
*Manufacturer Testing: IP65
Physical
Mounting Omega Bracket
Included Accessories 1 x Power Cable
Duty Cycle None
Exterior Colour Black
Certifications COE, MET
*as per Manufacturer
Dimensions 19.88 x 12.56 x 8.58" / 50.5 x 31.9 x 21.79 cm
Weight 35.4 lb / 16.1 kg

In The Box

  • CHAUVET PROFESSIONAL Rogue Outcast 1L Beam Outdoor-Ready IP65 Beam Moving Head
  • Seetronic Powerkon IP65 Power Cord
  • Omega Brackets with Mounting Hardware
