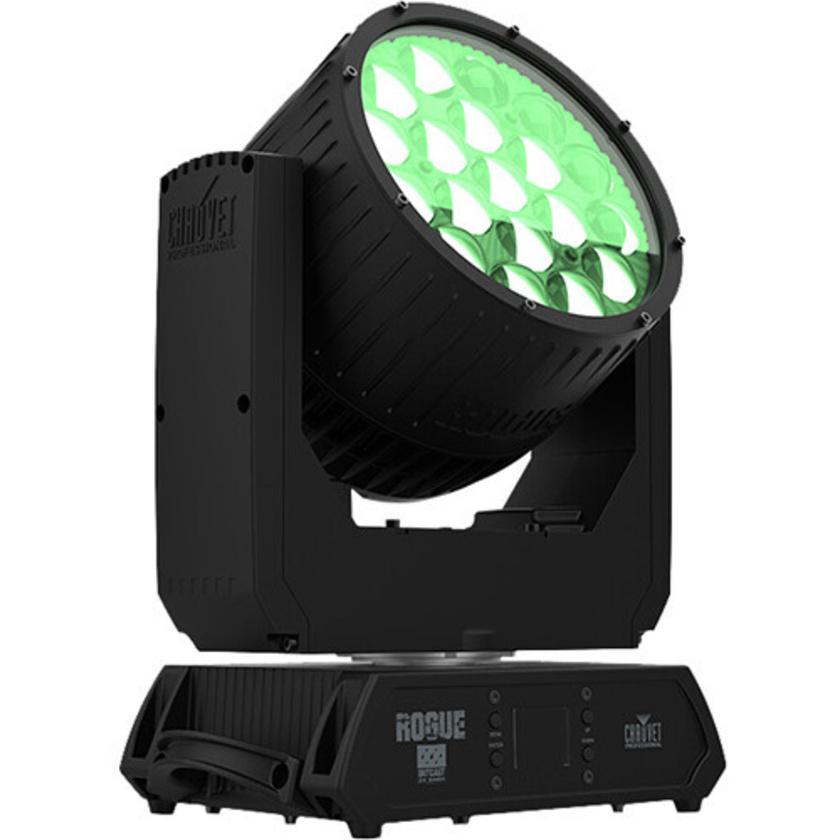

Chauvet Professional Rogue Outcast 2X Wash Outdoor-Ready IP65 Moving Head

Product #104528 | SKU ROGUE OUTCAST 2X | Chauvet
In Stock with Supplier Usually ships in 3 - 5 working days what does this mean?
Our Price $4,069
In Stock with Supplier Usually ships in 3 - 5 working days what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 3 - 5 working days. Deliver to Auckland for $26 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 3 - 5 working days
Click & Collect

Features

  • 19 RGBW 25W LEDs
  • Rugged Housing, IP65 Rated
  • Beam Angle: 8 to 66°
  • Pan and Tilt: 540° / 270°
  • 5 Zones of LED Control for Pixel Mapping
  • Selectable PWM for Camera Operation

Description

The Chauvet Professional Rogue Outcast 2X Wash Outdoor-Ready IP65 Moving Head is a lightweight IP65 wash that goes wide and hangs anywhere, with a wide zoom range of 8° to 66°, wide 2800 to 10000 K color temp range, wide selection of simple to complex DMX personalities, and a durable alloy housing that suits this versatile workhorse to the widest range of both indoor and outdoor applications, including on-camera use with its user selectable calibrated white. 19 bright 25W RGBW quad-LEDs occupy 5 pixel-mappable zones and produce excellent color blending and fades with 16-bit master and individual dimming.

Key Features
  • Fully featured IP65 rated RGBW LED yoke wash fixture
  • Durable and lightweight aluminum/magnesium alloy body
  • Smooth fades with 16-bit individual color and master dimming
  • 8° to 66° zoom
  • 19 RGBW LEDs, 25W each
  • 5-pin DMX input/output connections
  • 5 zones of LED control for pixel mapping control
  • Fast, smooth pan and tilt movement
  • RDM enabled for remote addressing and trouble shooting
  • Selectable PWM options for camera operation
  • User selectable calibrated white, 7500K default calibration
  • 6 distinct dimming modes for advanced control
  • Easy to read OLED display with simple, effective menu options
  • Simple and complex DMX channel profiles for programming versatility
  • USB-C port for uploading software

Specifications

Light
Fixture Type Moving Head
Light Source 19 x Colour LED - 25 W / 1.5 A
Light Source Life Expectancy 50,000 Hours
Colours Red, Green, Blue, White
Pixel Configuration 5 x Zones
Photometrics 12°:
809.4 fc / 8713 Lux at 16.4' / 5 m
53°:
64.5 fc / 694 Lux at 16.4' / 5 m
Colour Temperature 2800 to 10,000K
Lumen Output 6258 Lumens
Beam Angle 8 to 36.1°
Field Angle 11.8 to 53°
Shutter / Strobe Electronic
Iris No
Zoom Adjustment Motorised, 8 to 66.1°
Dimming 16-Bit Electronic, 0 to 100% with 6 Dimmer Modes
Performance
Operating Modes DMX, Programme, Standalone
Macros / Programmes 16 x Movement Macro
Effects Strobe
Strobe Rate 0 to 20 Hz
Gobos None
Movement
Tilt Ranges 270° / 180° / 90°
Pan Ranges 540° / 360° / 180°
Movement Resolution 16-Bit
Control
Control Protocols DMX512, RDM
DMX Channel Modes 8 Mode(s):
15 / 17 / 22 / 33 / 54 / 56 / 33MS / 54MS-Channel
Display / Controls OLED / 4-Button
Remote Control None
Mobile App Compatible No
*As of November, 2022: Cheque with manufacturer for the most up-to-date compatibility
Connectivity
Inputs/Outputs 1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output
1 x USB-C Service Input
Power
AC Input Power 100 to 240 VAC, 50/60 Hz
AC Power Connector Input: 1 x Seetronic IP-Rated
Output: 1 x Seetronic IP-Rated
Plug Type: Unterminated/Bare Wire
Cord Length: 5' / 1.5 m
Power / Current Consumption 120 VAC, 60 Hz: 291 W / 2.47 A
208 VAC, 60 Hz: 284 W / 1.41 A
230 VAC, 50 Hz: 282 W / 1.28 A
Power Linking 5 Units at 120 VAC
9 Units at 208 VAC
10 Units at 230 VAC
Environmental
IP Rating IP65
Environmental Protection Advertised as Weather Resistant
*Manufacturer Testing: IP65
Physical
Mounting Omega Bracket
Included Accessories 1 x Power Connector Only (No Cable/AC Plug)
Duty Cycle None
Exterior Colour Black
Cooling Fan (Variable Speed)
Certifications COE, MET, FCC, UKCA
*as per Manufacturer
Dimensions 14.1 x 11.9 x 8.5" / 35.8 x 30.2 x 21.6 cm
Weight 10.6 kg

In The Box

  • CHAUVET PROFESSIONAL Rogue Outcast 2X Wash Outdoor-Ready IP65 Moving Head
  • Seetronic powerCON Power Cord (5')
  • Omega Bracket with Mounting Hardware
