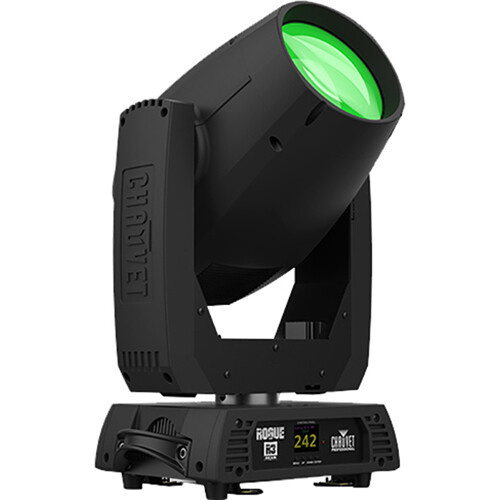

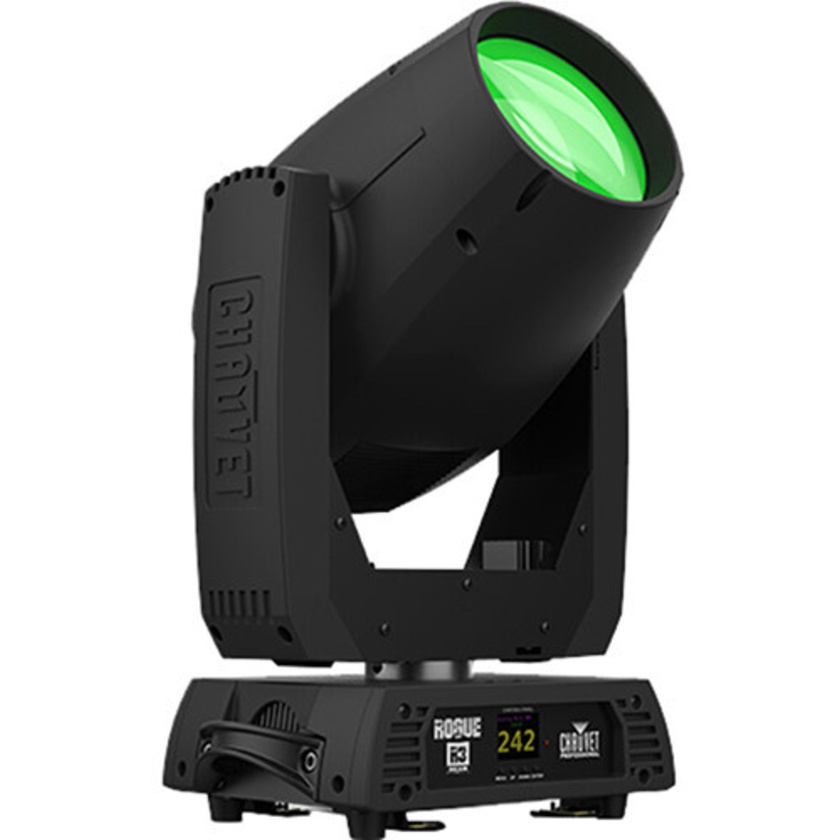

Chauvet Professional Rogue R3 Beam High-Powered Beam Fixture Moving Head

Product #104529 | SKU ROGUE R3 BEAM | Chauvet
In Stock with Supplier Usually ships in 3 - 5 working days what does this mean?
Our Price $3,379
In Stock with Supplier Usually ships in 3 - 5 working days what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 3 - 5 working days. Deliver to Auckland for $31 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 3 - 5 working days
Click & Collect

Features

  • Bright 300 W Ushio NSL Lamp
  • Beam Angle: 0.8° / Field Angle: 1.6°
  • Pan and Tilt: 540° / 270°
  • Colours: 14 + White, Solid/Split
  • Gobos: 17 Static + Open
  • 8-Facet and 24-Facet Rotating Prisms

Description

The Chauvet Professional Rogue R3 Beam High-Powered Beam Fixture Moving Head is the light cannon of the Rogue series, outputting over 208,000 lux at 15 meters from its 300 W Ushio NSL lamp. This fully-featured beam can be focused down to 0.8° degrees for extremely focused aerial effects alongside motorised frost and focus options. A color wheel equipped with 14 colours complimented by a gobo wheel with 17 gobos give you a wealth of dynamic effects, and both wheels are fully scrollable at variable speeds. Additionally, the unit features individually overlapping 8 and 24-facet prisms for an endless supply of creative beam looks. The unit is equipped with RDM and DMX protocols and features multiple control personalities.

Key Features
  • Fully featured, high powered beam fixture with a single color wheel, single static gobo wheel, layerable prisms, and 300 W Ushio NSL lamp rated at 8,000 hours life
  • Fast and precise movement of pan and tilt functions
  • Individually controllable and layerable 8- and 24-facet prisms
  • Frost for even light distribution
  • Tight 0.8° beam for extremely focused areal effects
  • RDM enabled for remote addressing and troubleshooting
  • 17 static gobos for massive visual impact

Specifications

Light
Fixture Type Moving Head
Light Source Life Expectancy 8000 Hours
Photometrics 19,323.8 fc / 208,006 Lux at 49.2' / 15 m
Colour Temperature 7657K
Lumen Output 30,878 Lumens
Shutter / Strobe Mechanical
Focus Motorised
Dimming Mechanical, 0 to 100%
Prism 8-Facet Linear (Rotating)
24-Facet Linear (Rotating)
Performance
Operating Modes Automatic, Colour Change, Colour Dimmer, DMX, Static Colour
Macros / Programmes 31 x Movement Macro
Effects Light Beams
Strobe
Gobos 17 x Fixed Metal Spot/Open
Movement
Tilt Ranges 270° / 180° / 90°
Pan Ranges 540° / 360° / 180°
Control
Control Protocols DMX512, RDM
DMX Channel Modes 2 Mode(s):
16 / 19-Channel
Display / Controls LCD / 4-Button
Remote Control None
Connectivity
Inputs/Outputs 1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output
1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output
Power
AC Input Power 100 to 240 VAC, 50/60 Hz
AC Power Connector Input: 1 x powerCON
Output: None
Power / Current Consumption 100 VAC, 60 Hz: 422 W / 4.2 A
120 VAC, 60 Hz: 418 W / 3.55 A
208 VAC, 60 Hz: 411 W / 1.98 A
230 VAC, 50 Hz: 411 W / 1.78 A
240 VAC, 50 Hz: 406 W / 1.68 A
Environmental
IP Rating IP20
Physical
Mounting Omega Bracket
Duty Cycle None
Exterior Colour Black
Certifications COE, MET
*as per Manufacturer
Dimensions 21.65 x 12.79 x 8.66" / 54.99 x 32.49 x 22 cm
Weight 34.4 lb / 15.6 kg

In The Box

  • CHAUVET PROFESSIONAL Rogue R3 Beam High-Powered Beam Fixture Moving Head
  • Neutrik powerCON Power Cord
  • Omega Brackets with Mounting Hardware
