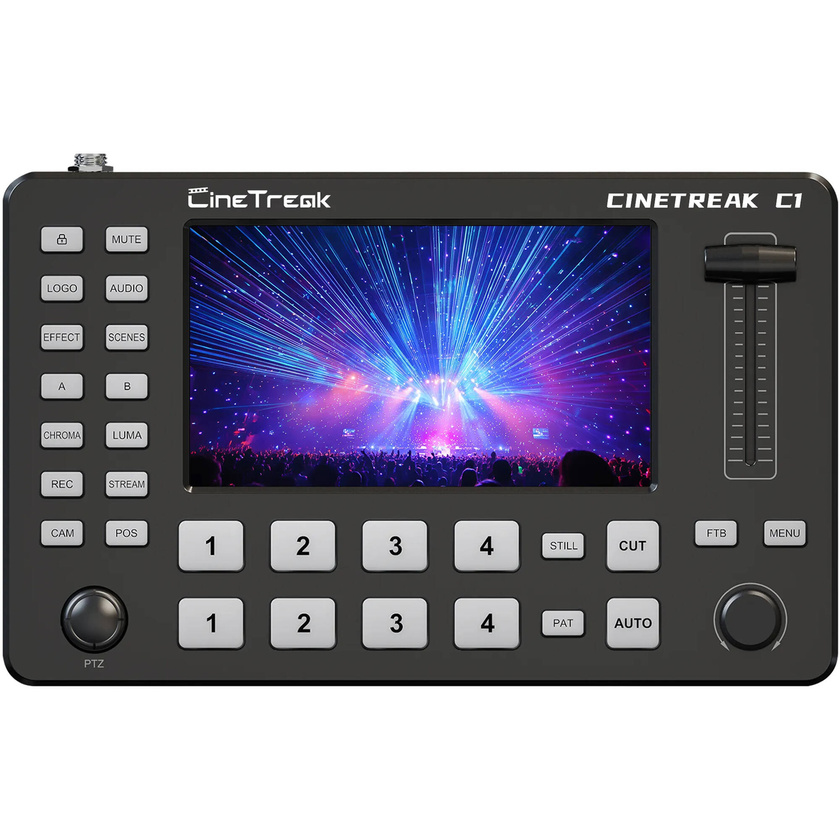

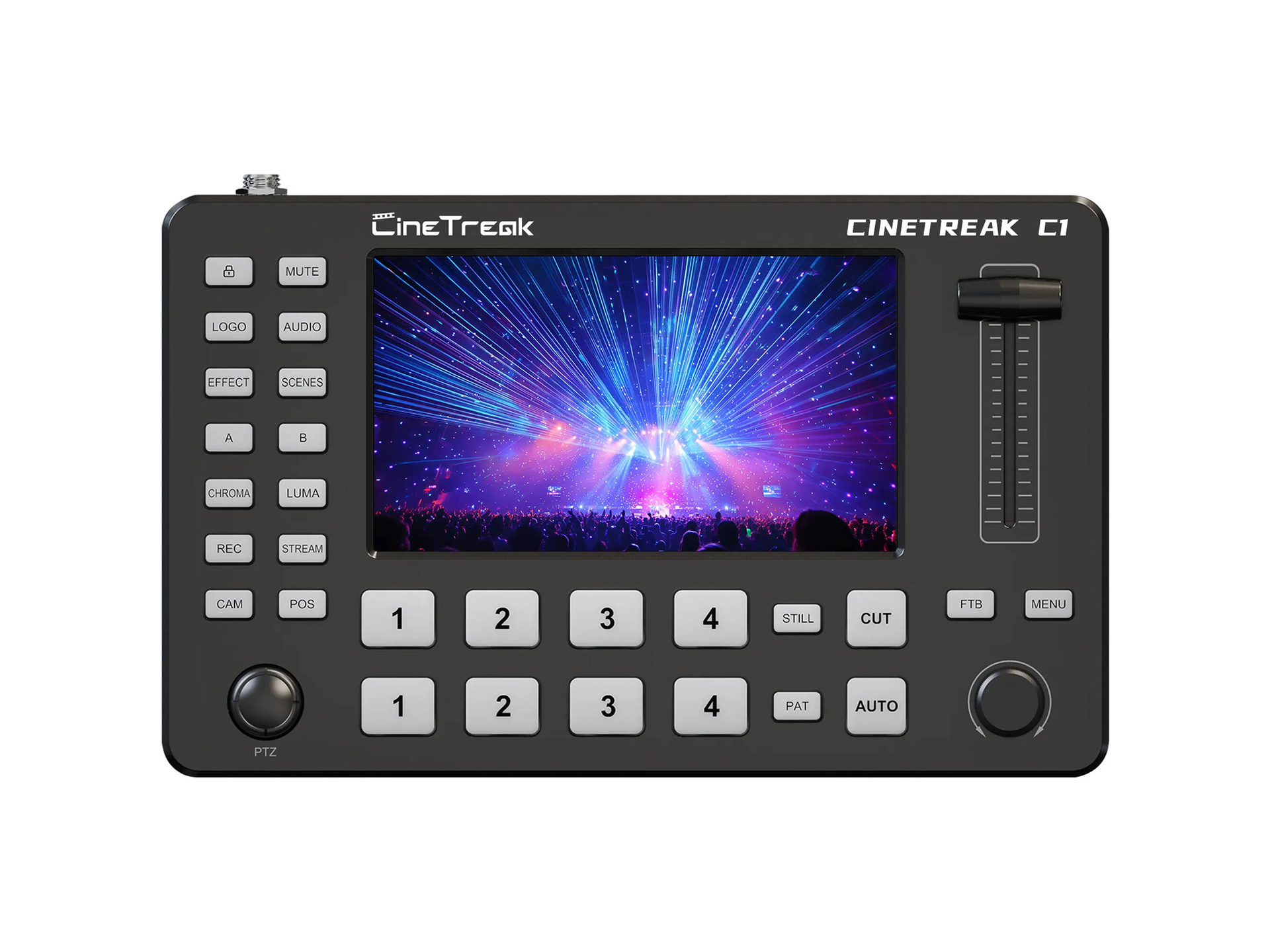

Use the CineTreak CineLive CL-C1 Compact 4-Channel HDMI Streaming Video Switcher with 5" Display to mix and live stream up to 1080p60 video and embedded audio. This compact switcher provides four HDMI inputs, one LAN port, one USB-C UVC output, two 3.5 mm audio inputs, two HDMI programme outputs, and USB-A external recording. The CL-C1 switcher supports up to two simultaneous RTMP streams of 1080p60 video to popular platforms using its USB-C and LAN ports. It features H.264 encoding, luma and chromakeying, 32 transition effects, and VISCA control for up to four PTZ cameras.
CineTreak CineLive CL-C1 Compact 4-Channel HDMI Streaming Video Switcher with 5" Display
Usually ships in 1 - 2 weeks
Our Price
$1,099
Usually ships in 1 - 2 weeks
Email me when stock arrives
Shipping & Availability
Usually ships in 1 - 2 weeks.
Deliver to
Auckland
for $12
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
1 - 2 weeks
Click & Collect
Features
- 4 x HDMI Inputs, 2 x HDMI Outputs
- Multi RTMP Livestreaming via USB-C & LAN
- Supports Up to 1080p60 Video
- Luma & Chromakey, LOGO, PiP and PoP
- H.264 Encoding with 2-Ch Audio
- VISCA Control for up to 4 x PTZ Cameras
Description
Specifications
| Mix Effects | |
| Available M/E Layers | 2 M/E |
| Effect Types | Graphic, Transition, Chroma Key, Luma Key |
| Graphics Memory | 100 Images (Total) |
| Downstream Keys | No |
| Audio Mixing | 4-Channel Mixing |
| Processing | |
| Switching Type | Pushbutton, Software, T-Bar |
| Processing Resolution | 1080p at 23.98/24/25/29.97/30/50/59.94/60 |
| Colour Processing | RGB YUV |
| Input | |
| Number of Video Input Sources | 4 |
| Video Inputs | 4x HDMI |
| Input Video Format | HDMI 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/60 fps 720p at 23.98/24/25/29.97/30/50/59.94/60 fps 576p 576i / 625 lines 480p 480i / 525 lines |
| Audio Inputs | 2x 1/8" / 3.5 mm TRS Stereo Female |
| Embedded Audio Input | HDMI |
| Output | |
| Video Output Channels | 3 |
| Video Outputs | 2x LC Fibre 1x USB-A 1x USB-C |
| Output Video Format | HDMI 1080p up to 60 fps |
| Embedded Audio Output | HDMI: 4-Channel |
| Multiview Output | Yes |
| Connectivity | |
| Other I/O | 1x RJ45 LAN |
| HDCP Support | No |
| IP Encoding/Decoding | |
| IP Video | H.264: 1920 x 1080 at 60p Encoding |
| Transport Protocols | RTMP |
| Simultaneous Streams | 2 Streams |
| Compatible Services | Facebook Live, Instagram, Skype, TikToK, Twitch, YouTube Live |
| Display | |
| Display Size | 5.5" |
| Hardware | |
| OS Compatibility | Android/iOS |
| Mobile App Compatible | Yes: Android & iOS |
| Processor | Not Specified by Manufacturer |
| Wi-Fi | No |
| Bluetooth | No |
| Power | |
| Power I/O | 1x Barrel (7 to 12 VDC ) Input |
| General | |
| Operating Conditions | 32 to 122°F / 0 to 50°C |
| Storage Conditions | -22 to 158°F / -30 to 70°C |
| Certifications | COE, FCC, RoHS |
| Dimensions | 7.9 x 4.8 x 1.8" / 200.5 x 123 x 45 mm |
| Weight | 1.5 lb / 670 g |
In The Box
- CineTreak CineLive CL-C1 Compact 4-Channel HDMI Streaming Video Switcher with 5" Display
- 12 VDC, 2A Power Adapter
