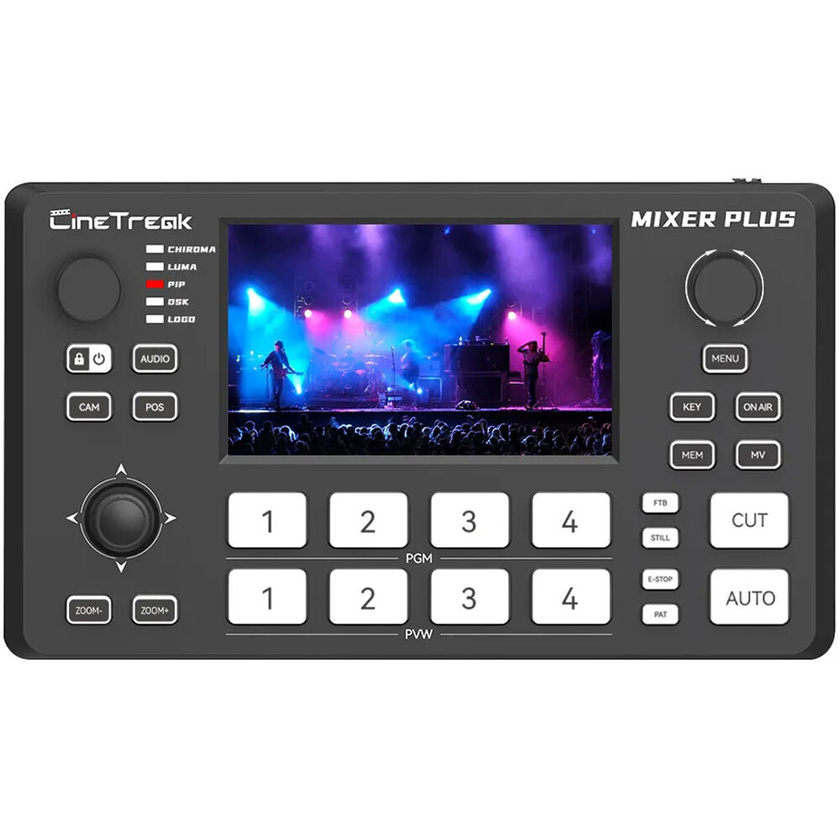

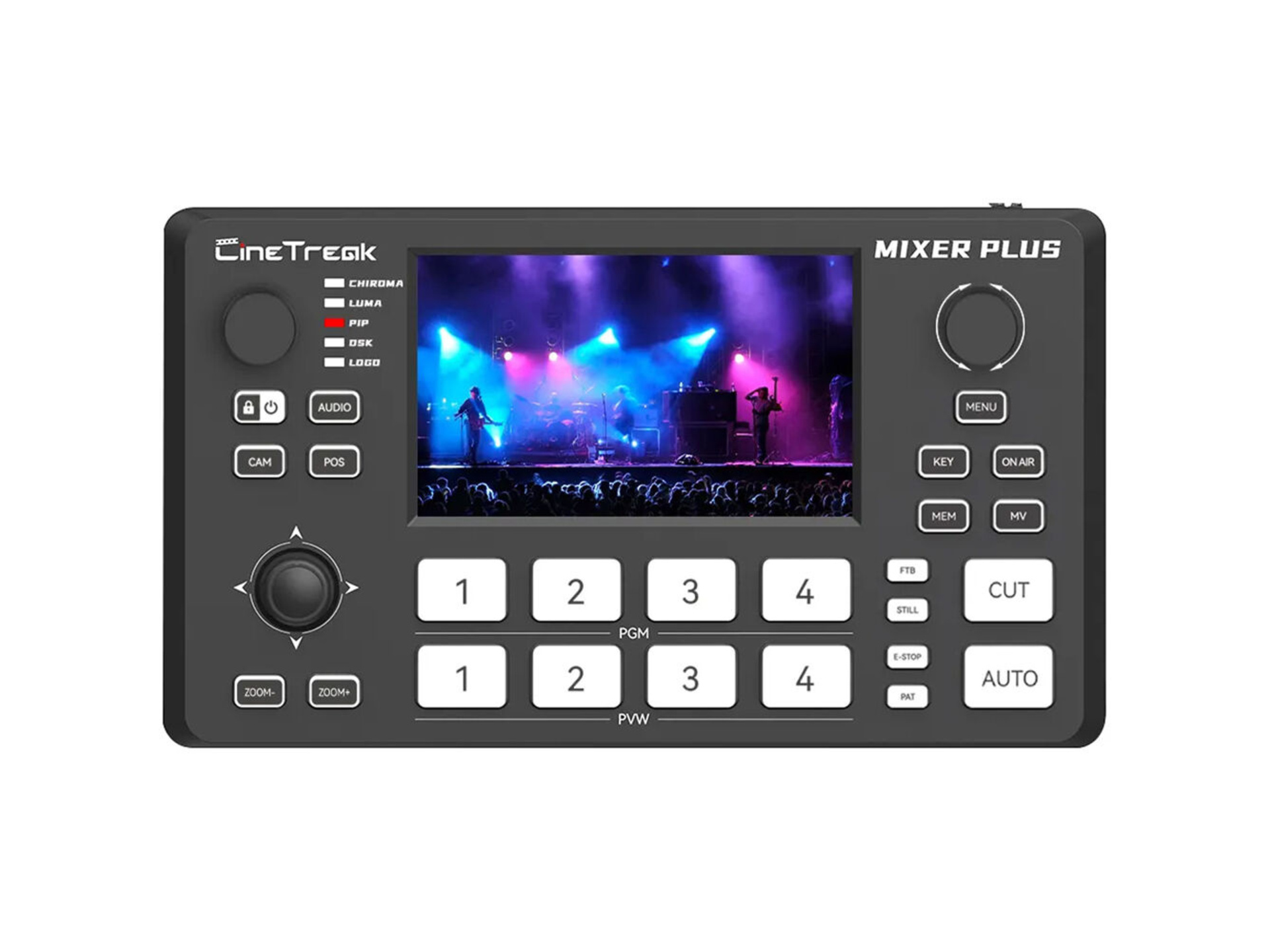

The CineTreak Mixer Plus 4-Channel HDMI Streaming Video Switcher with 4.5" Display provides powerful mixing and live streaming for up to 1080p60 video and embedded audio. This compact switcher provides four HDMI inputs, two HDMI outputs, one LAN port, one USB-A UVC 3.0 output, two 3.5 mm audio inputs, and a 3.5 mm headphone output. It features a 4.5" LCD screen with multiview, luma and chroma keying, transition effects, and VISCA control for up to four PTZ cameras.
CineTreak Mixer Plus 4-Channel HDMI Streaming Video Switcher with 4.5" Display
Usually ships in 1 - 2 weeks
Our Price
$689
Usually ships in 1 - 2 weeks
Email me when stock arrives
Shipping & Availability
Usually ships in 1 - 2 weeks.
Deliver to
Auckland
for $8.90
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
1 - 2 weeks
Click & Collect
Features
- Four HDMI Inputs, Two HDMI Outputs
- Built-In 4.5" HD Display
- Live Stream via USB-A UVC 3.0
- VISCA Control for up to Four PTZ Cameras
- Supports up to 1080p60 Video
- Multiview Monitoring
Description
Specifications
| Mix Effects | |
| Available M/E Layers | 5 M/E |
| Effect Types | Graphic, Transition, Chroma Key, Luma Key |
| Downstream Keys | 2x Overlay |
| Processing | |
| Switching Type | Pushbutton, Software |
| Processing Resolution | 1080p at 23.98/24/25/29.97/30/50/59.94/60 |
| Colour Processing | YUV |
| Input | |
| Number of Video Input Sources | 4 |
| Video Inputs | 4x HDMI |
| Input Video Format | HDMI 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/60 fps |
| Audio Inputs | 2x 1/8" / 3.5 mm TRS Stereo Female |
| Embedded Audio Input | HDMI |
| Output | |
| Video Output Channels | 3 |
| Video Outputs | 1x HDMI (Programme) 1x HDMI 1x USB-A (3.1) |
| Output Video Format | HDMI 1080p at 24/25/30/50/60 fps 1080i at 50/60 fps USB-A 1080p up to 60 fps |
| Audio Outputs | 1x 1/8" / 3.5 mm TRS Stereo |
| Embedded Audio Output | HDMI USB-A |
| Multiview Output | 4-Way Multiview |
| Connectivity | |
| Other I/O | 1x RJ45 LAN 1x USB-A 2.0 Input |
| IP Encoding/Decoding | |
| IP Video | 1920 x 1080 at 60p Encoding |
| IP Audio | Encoding |
| Display | |
| Display Size | 4.5" |
| Hardware | |
| Processor | Not Specified by Manufacturer |
| Wireless | No |
| Power | |
| Power I/O | 1x Barrel (7 to 24 VDC at 2 A) Input |
| Power Consumption | 10 W |
| General | |
| Operating Conditions | -4 to 122°F / -20 to 50°C |
| Storage Conditions | -4 to 140°F / -20 to 60°C |
| Dimensions | 7.4 x 4.3 x 1.9" / 189 x 109 x 49 mm |
| Weight | 0.9 lb / 393 g |
In The Box
- CineTreak Mixer Plus 4-Channel HDMI Streaming Video Switcher with 4.5" Display
- 12 VDC, 2A Power Adapter
- USB-A to USB-A Cable
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: CineTreak Mixer Plus 4-Channel HDMI Streaming Video Switcher with 4.5" Display
- Manufacturer: Cinetreak
- Model: Mixer Plus
- SKU: MIXER PLUS
- RM Product #: 126894
