The CineTreak Natrix 8-Channel ISO Recording and Live Streaming Video Switcher is a broadcast-grade all-in-one live production switcher built for multi-camera streaming, live events, education, worship, and studio workflows. Centered around a responsive 10.1-inch touchscreen, it combines professional video switching, audio mixing, IP production tools, and multi-channel recording in a compact system. It features 4 HDMI inputs, 4 SDI inputs, 4 AUX media inputs, and dual XLR inputs with 48 V phantom power, supporting a wide range of sources including HDMI, SDI, NDI, RTSP streams, media files, webcams, images, browser sources, and real-time PDF display. Three configurable HDMI outputs can be assigned to Program, Multiview, or custom monitoring layouts.

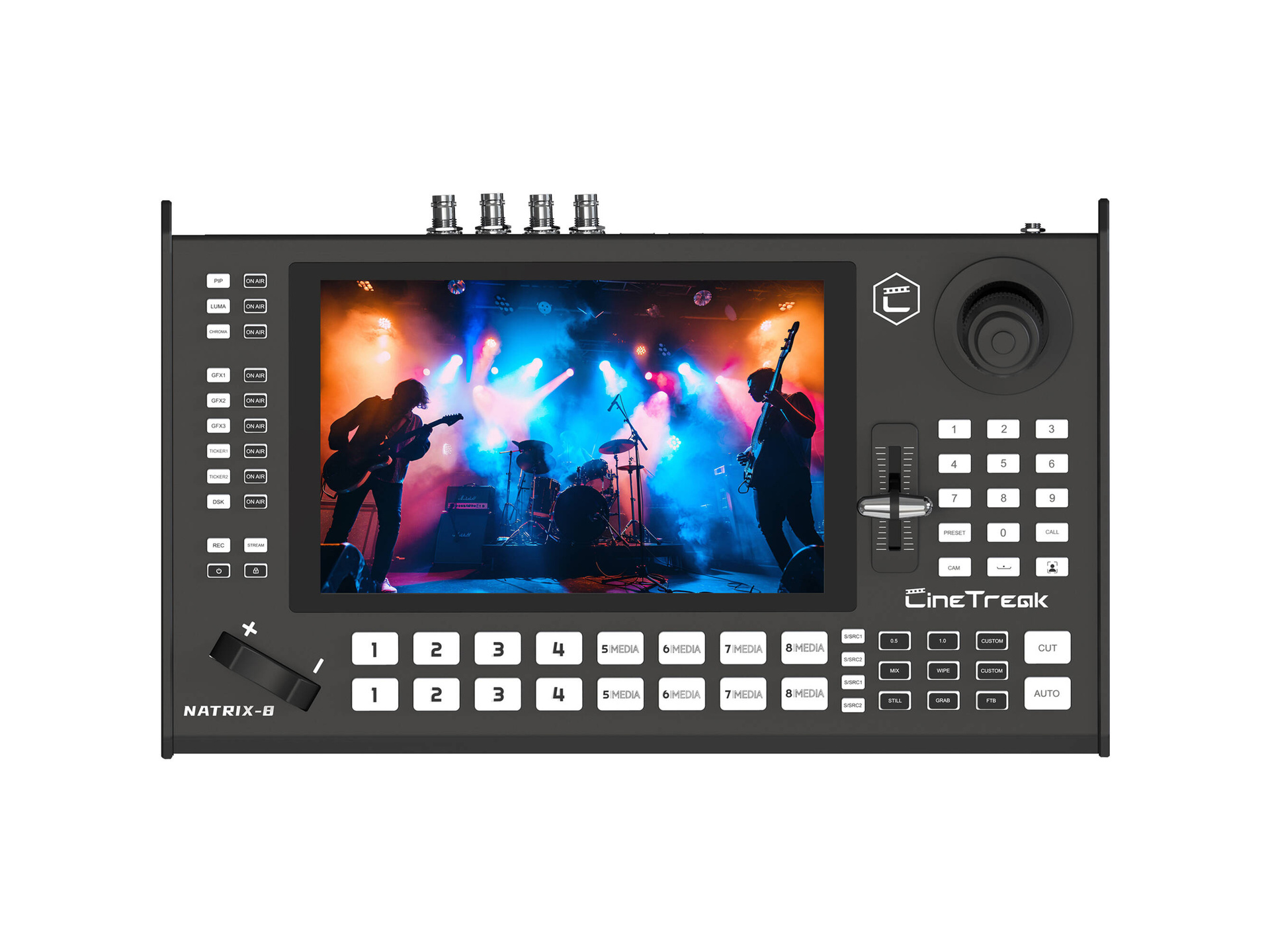

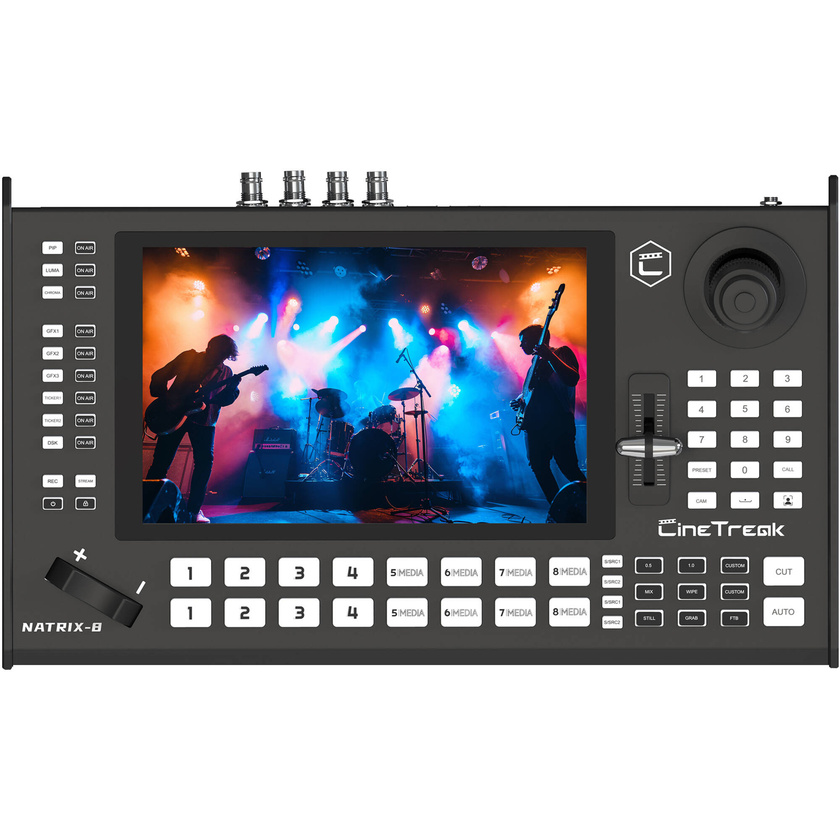

CineTreak Natrix 8-Channel ISO Recording and Live Streaming Video Switcher
Usually ships in 1 - 2 weeks
Our Price
$4,995
Usually ships in 1 - 2 weeks
Email me when stock arrives
Shipping & Availability
Usually ships in 1 - 2 weeks.
Deliver to
Auckland
for $16
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
1 - 2 weeks
Click & Collect
Features
- Streaming Switcher with 10" Touchscreen
- 4 HDMI, 4 SDI, and 4 USB Media Inputs
- 3 Configurable HDMI AUX Outputs
- 2 XLR Inputs with 48V Phantom Power
- Dual Gigabit Ethernet with PoE Support
- Upstream/Downstream Keying
Description
Specifications
| Mix Effects | |
| Available M/E Layers | 8 M/E |
| Effect Types | DVE, Graphic, Transition, Chroma Key, and Luma Key |
| Downstream Keys | 2x Chroma and Luma |
| Processing | |
| Switching Type | Pushbutton, T-Bar, Touchscreen |
| Input | |
| Number of Video Input Sources | 8 |
| Video Inputs | 4x BNC Female 4x HDMI Female 2x USB-A (2.0) Female 2x USB-A (3.0) Female |
| Input Video Format | HDMI UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 23.98/24/25/29.97/30/50/59.94/60 fps BNC 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 23.98/24/25/29.97/30/50/59.94/60 fps USB-A (4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps |
| Audio Inputs | 2x 1/8" / 3.5 mm TRS Stereo Analogue Female |
| Input Audio Format | Analogue |
| Embedded Audio Input | HDMI SDI USB-A |
| Output | |
| Video Output Channels | 3 |
| Video Outputs | 3x HDMI Female 1x USB-C (USB Video) Female |
| Output Video Format | HDMI / SDI 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps USB-C 1080p at 60 fps |
| Audio Outputs | 1x 1/8" / 3.5 mm TRS Stereo Analogue Female 2x XLR 3-Pin Mono Analogue Female |
| Output Audio Format | Analogue |
| Embedded Audio Output | HDMI USB-C |
| Multiview Output | Yes |
| Connectivity | |
| Other I/O | 1x RJ45 LAN Input/Output (Shared PoE) 1x RJ45 LAN Input/Output 1x RJ45 RS-422 Input/Output 1x Block 3-Pin RS-232 Input/Output |
| IP Encoding/Decoding | |
| IP Video | 1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding |
| Transport Protocols | NDI/HX, RTMP, RTSP, and SRT |
| Simultaneous Streams | 4 Streams |
| Internal Recording | |
| Recording Media | 1x SD (Unspecified Type) |
| Display | |
| Display Size | 10" |
| Hardware | |
| Processor | Not Specified by Manufacturer |
| Wireless | No |
| Power | |
| Power I/O | 1x Barrel (12 VDC ) Input |
| Power Consumption | 24 W |
| General | |
| Operating Conditions | 32 to 122°F / 0 to 50°C |
| Storage Conditions | -22 to 158°F / -30 to 70°C |
| Dimensions | 13.8 x 8.7 x 2" / 350 x 220 x 52 mm |
| Weight | 4.4 lb / 2 kg |
In The Box
- CineTreak Natrix 8-Channel ISO Recording and Live Streaming Video Switcher
