Mix and live stream video in either a standard horizontal or a social media-friendly vertical orientation using the CineTreak V1 4-Channel HDMI Video Switcher with Vertical Live Streaming. This portable switcher supports up to four channels of 1080p60 video with two channels of embedded audio per channel. It provides four HDMI inputs, one LAN port, one USB-C UVC output, two 3.5 mm audio inputs, two HDMI programme/preview outputs, and USB-A external recording.

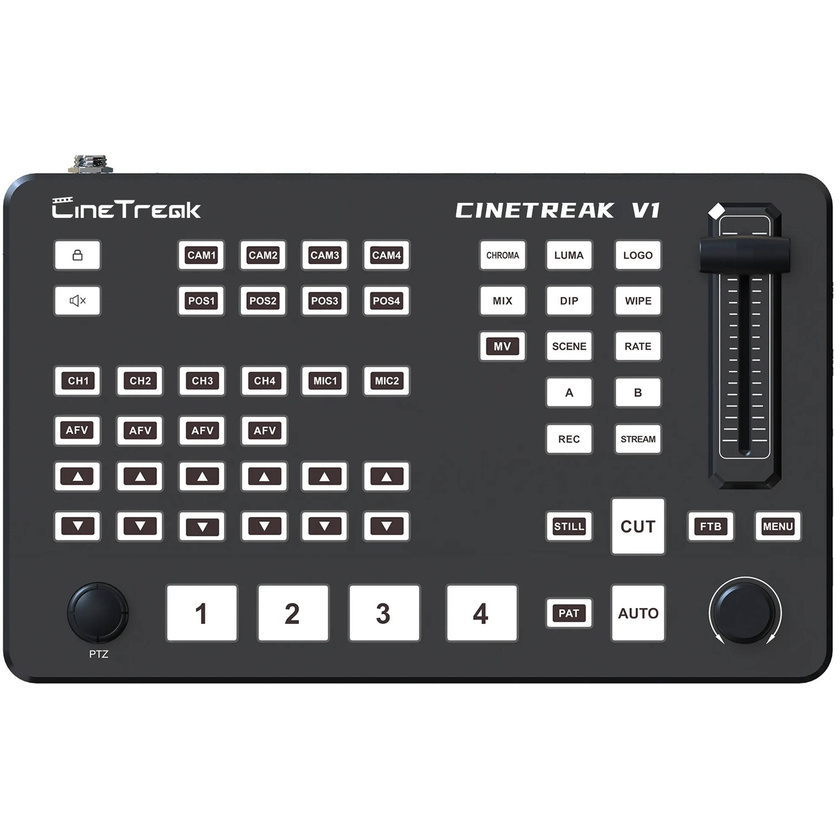

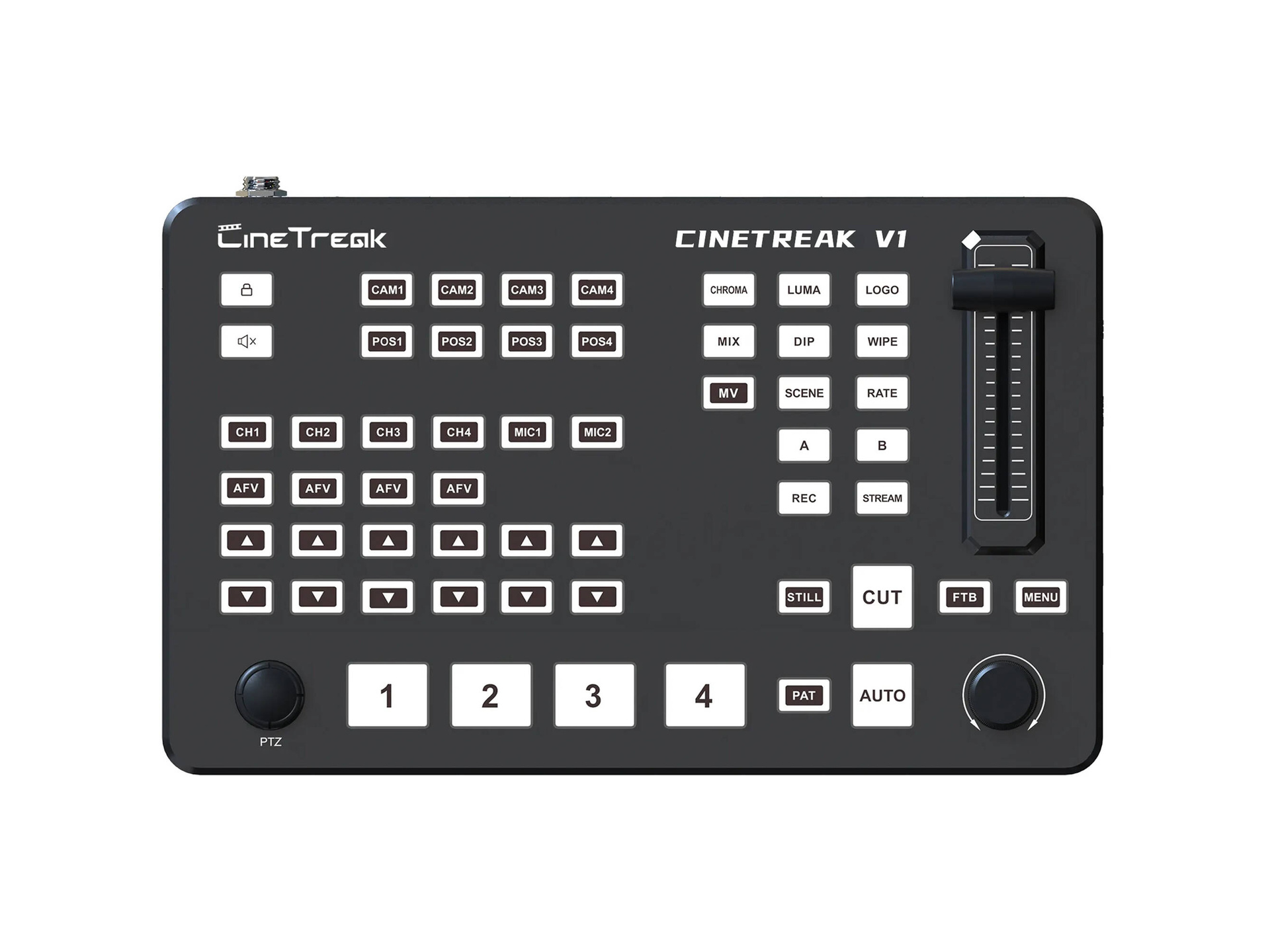

CineTreak V1 4-Channel HDMI Video Switcher with Vertical Live Streaming
Usually ships in 1 - 2 weeks
Our Price
$779
Usually ships in 1 - 2 weeks
Email me when stock arrives
Shipping & Availability
Usually ships in 1 - 2 weeks.
Deliver to
Auckland
for $12
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
1 - 2 weeks
Click & Collect
Features
- 4 x HDMI Inputs, up to 1080p60 Video
- HDMI Programme & Preview Outputs
- Vertical & Horizontal Streaming
- Multi RTMP Livestreaming via USB-C & LAN
- Vertical & Horizontal Preview/Multiview
- Luma & Chromakey, LOGO, PiP and PoP
Description
Specifications
| Mix Effects | |
| Available M/E Layers | 2 M/E |
| Effect Types | Transition, Chroma Key, Luma Key |
| Graphics Memory | 100 Images |
| Audio Mixing | 4-Channel Mixing |
| Processing | |
| Switching Type | Pushbutton, Software, T-Bar |
| Processing Resolution | 1080p at 23.98/24/25/29.97/30/50/59.94/60 |
| Colour Processing | RGB YUV |
| Input | |
| Number of Video Input Sources | 4 |
| Video Inputs | 4x HDMI |
| Input Video Format | HDMI 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/60 fps 720p at 23.98/24/25/29.97/30/50/59.94/60 fps 576p 576i / 625 lines 480p 480i / 525 lines |
| Audio Inputs | 2x 1/8" / 3.5 mm TRS Stereo Female |
| Embedded Audio Input | HDMI |
| Output | |
| Video Output Channels | 4 |
| Video Outputs | 2x HDMI 1x RJ45 1x USB-C (2.0) 1x USB-A |
| Output Video Format | HDMI 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps |
| Embedded Audio Output | HDMI: 2-Channel (per Output) |
| Multiview Output | 4-Way Multiview via HDMI |
| Connectivity | |
| Other I/O | 1x RJ45 LAN |
| HDCP Support | No |
| IP Encoding/Decoding | |
| IP Video | H.264: 1920 x 1080 at 60p Encoding |
| IP Audio | Encoding |
| Simultaneous Streams | 2 Streams |
| Compatible Services | Facebook Live, Instagram, Skype, YouTube Live |
| Hardware | |
| OS Compatibility | Android/iOS |
| Mobile App Compatible | Yes: Android & iOS |
| Processor | Not Specified by Manufacturer |
| Wi-Fi | No |
| Bluetooth | No |
| Power | |
| Power I/O | 1x Barrel (7 to 12 VDC ) Input |
| Power Consumption | 12 W |
| General | |
| Operating Conditions | 32 to 122°F / 0 to 50°C |
| Storage Conditions | -22 to 158°F / -30 to 70°C |
| Certifications | COE, FCC, RoHS |
| Dimensions | 7.9 x 4.8 x 1.8" / 200.5 x 123 x 45 mm |
| Weight | 1.5 lb / 670 g |
In The Box
- CineTreak V1 4-Channel HDMI Video Switcher with Vertical Live Streaming
- 12 VDC, 2A Power Adapter
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: CineTreak V1 4-Channel HDMI Video Switcher with Vertical Live Streaming
- Manufacturer: Cinetreak
- Model: CineLive V1
- SKU: CL-V1
- RM Product #: 126886
