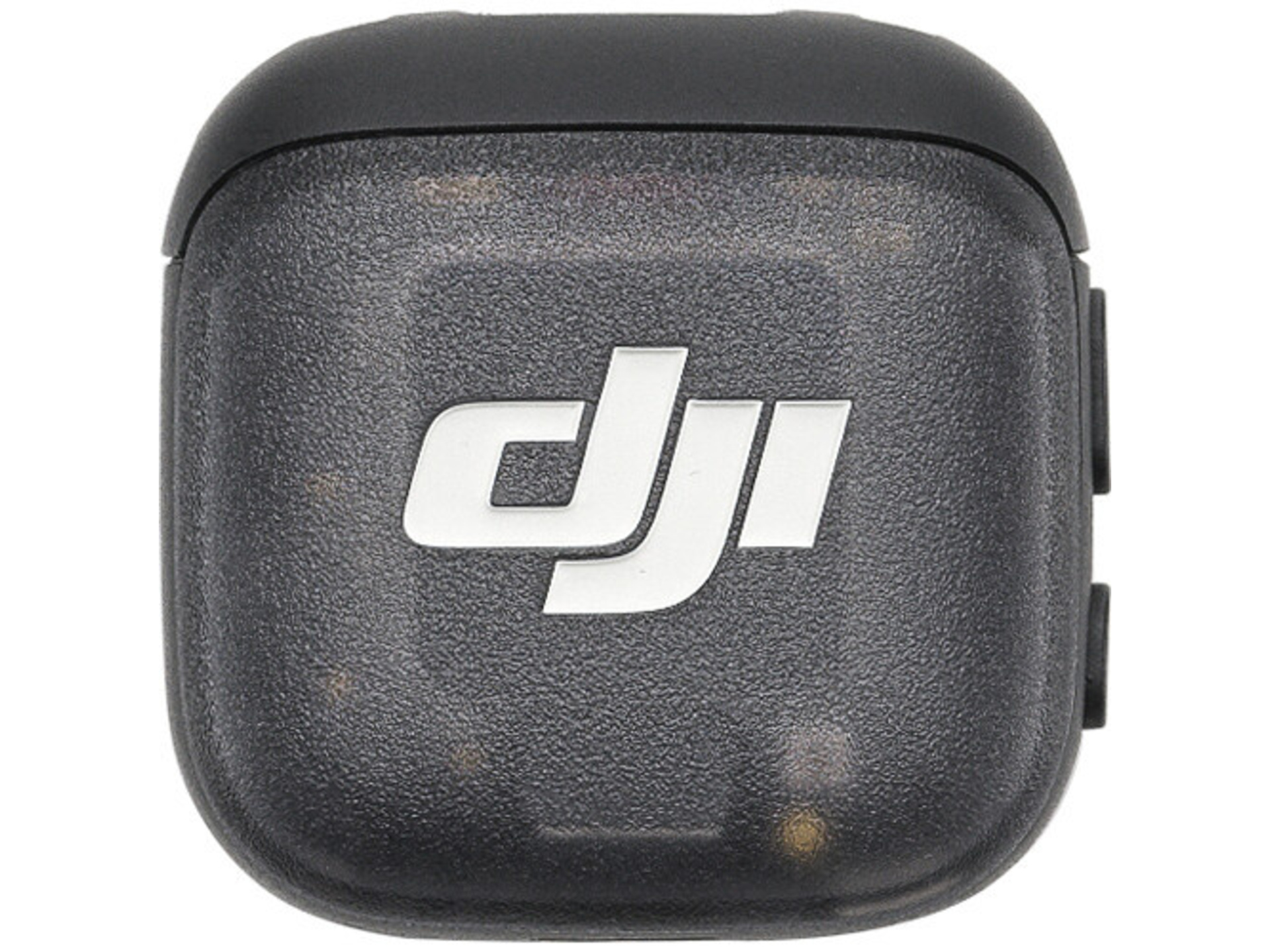

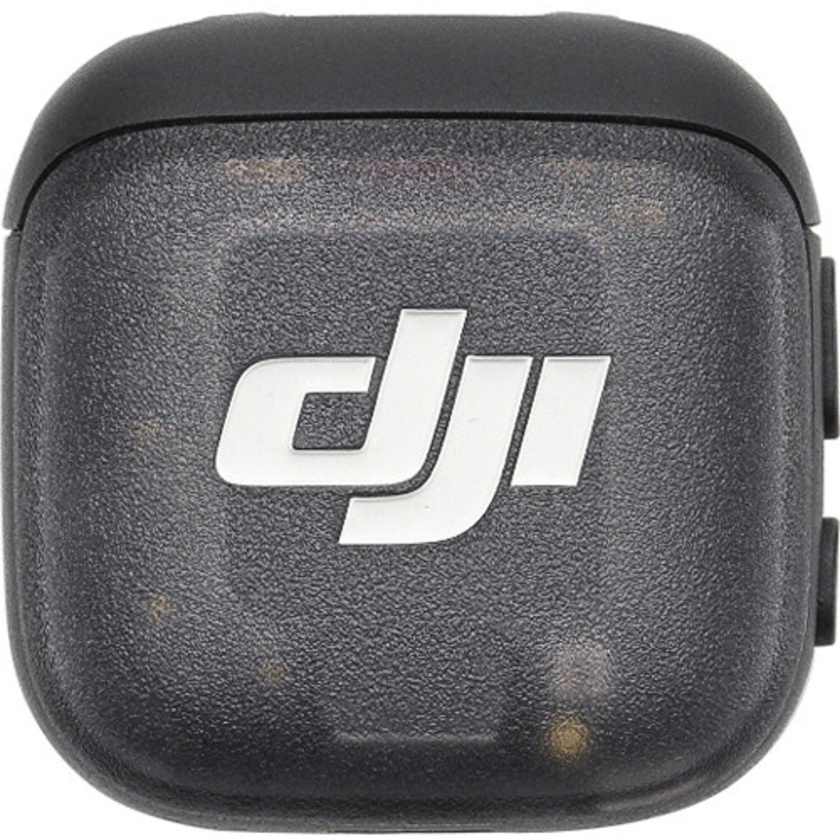

DJI Mic 3 Transmitter

Product #122720 | SKU 190021141858 | DJI
In stock Ships Monday
Our Price $239
In stock Ships Monday
- +

this item may be nonreturnable
Shipping & Availability
Ships Monday. Deliver to Auckland for $5.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 3 working days
Click & Collect

Features

  • For Mic 3 Wireless System
  • Transmitter with Onboard Recording
  • Built-In Omnidirectional Microphone
  • Dual-Band Wireless and Bluetooth 5.4
  • 1312' Transmission Distance
  • 32-Bit Float Recording
  • Embedded Timecode Support
  • 8-Hour Battery Life

Description

The DJI Mic 3 Clip-On Transmitter is a transmitter with both built-in microphone and onboard recording capabilities for seamless audio recording. Use in tandem with a separately available receiver or expand your preexisting Mic 3 wireless system. The transmitter utilizes dual-band 2.4 and 5.8 GHz technology, as well as Bluetooth 5.4 technology, to communicate with the receiver, or even directly to your DJI Osmo series camera from up to 1312' away.

The transmitter supports 32-bit float internal recording, Lossless Audio mode, and dual-file recording to save both an original track and algorithm-enhanced version. Onboard controls toggle two-level noise cancellation, facilitate linking between devices, and start/stop internal recording. The transmitter embeds timecode data into its internal recording files for efficient postproduction workflow. An internal battery keeps the transmitter running for 8 hours at a time.

Specifications

Model DMT03
Dimensions 28.77×28.34×16.35 mm (L×W×H) (with magnet)
Weight 16g (with magnet)
Wireless Mode Wi-Fi: 802.11 a/b/g/n/ac/ax
SDR: Customizable
Equivalent Isotropic Radiated Power (EIRP) Wi-Fi:
2.400-2.4835 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
5.725-5.850 GHz: < 20 dBm (FCC/SRRC), < 14 dBm (CE)

SDR:
2.400-2.4835 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
5.150-5.250 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
5.250-5.350 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
5.470-5.725 GHz: < 20 dBm (FCC/CE/MIC)
5.725-5.850 GHz: < 20 dBm (FCC/SRRC), < 14 dBm (CE)

Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
Wireless Mode Operating Frequency Wi-Fi:
2.400-2.4835 GHz
5.725-5.850 GHz
SDR:
2.400-2.4835 GHz
5.150-5.250 GHz
5.250-5.350 GHz
5.470-5.725 GHz
5.725-5.850 GHz
Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
Bluetooth Protocol Bluetooth 5.4
Bluetooth Operating Frequency 2.400-2.4835 GHz
Bluetooth Transmitter Power (EIRP) BLE: < 10 dBm
BR/EDR: < 20 dBm

Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
Battery Type Li-ion
Battery Capacity 137 mAh
Battery Energy 0.531 Wh
Battery Voltage 3.87 V
Charging Specification Max 5 V
Charging Temperature 5° to 45° C (41° to 113° F)
Operating Temperature -10° to 45° C (14° to 113° F)
Charging Time Approx 50 minutes
Operating Time 8 hours

Measured using DJI Mic 3 (2 TX + 1 RX + Charging Case), with features such as noise cancellation and internal recording off, during close-range audio recording under interference-free conditions, with both transmitters connected to the receiver and the receiver connected to a camera via the 3.5mm audio cable.
Internal Recording Available Duration 24-bit (single file): 57.3 hours
24-bit (dual file): 28.6 hours
32-bit float (single file): 43.0 hours
32-bit float (dual file): 21.5 hours

In The Box

  • DJI Mic 3 Transmitter
  • Windscreen (Black)
  • Windscreen (White)
  • Back clip
  • Magnet
  • USB-C Charging cable
  • Carrying Pouch
