The DJI Transmission Module for O4 Air Unit Pro allows you to upgrade non-FPV drones with FPV capabilities. This essential component enables real-time video transmission to DJI Goggles from a distance of up to 9.3 miles. Capable of handling video up to 1080p at 100 fps, the module includes a Racing Mode that reduces latency to 15 ms. Working with the system's 2T2R antennas, the module uses an automatic multichannel frequency selection process to ensure the best signal quality.

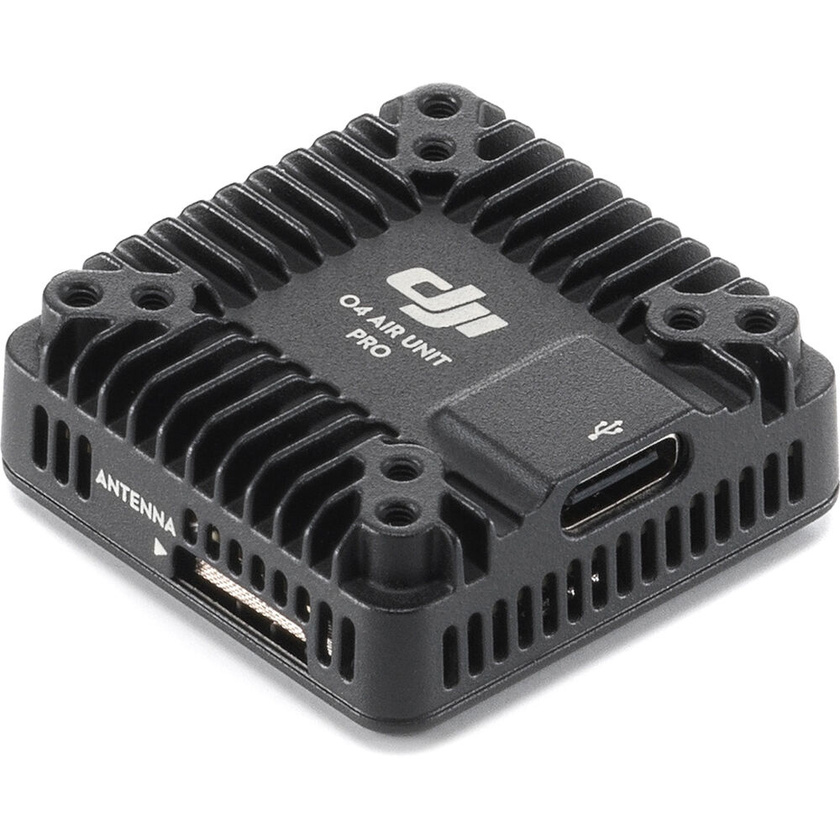

DJI Transmission Module for O4 Air Unit Pro
In stock Ships Monday
Our Price
$329
In stock Ships Monday
this item may be nonreturnable
Shipping & Availability
Ships Monday.
Deliver to
Auckland
for $5.90
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
2 - 3 working days
Click & Collect
Buy Together & Save!
DJI Transmission Module for O4 Air Unit Pro
In stock Ships Monday
DJI Camera Module for O4 Air Unit Pro
In stock Ships Monday
Buy Together:
$512.92
Features
- For DJI O4 Air Unit Pro
- Up to 9.3-Mile Range
- Stream FPV at 1080p100
- Racing Mode with 15 ms Latency
- Auto Multichannel Frequency Selection
Description
Specifications
| General | |
| Compatibility | DJI O4 Air Unit Pro |
| Wireless | |
| Wireless | 5.8 GHz Radio/RF |
| Mobile App Compatible | No |
| Type of Transmitter | Operating Freqency: 5.17 to 5.25 and 5.725 to 5.85 Transmitter Power (EIRP): 5.1 GHz: <23 dBm (COE) Transmitter Power (EIRP): 5.8 GHz: <33 dBm (FCC), <14 dBm (COE), and <30 dBm (SRRC) Transmission Range: With DJI Goggles 3/N3: Up to 9.3 Miles / 15 km (FCC), Up to 5 Miles / 8 km (COE/SRRC) Live View Quality: 1080p at 30, 48, 50, 60, or 100 fps Communication Bandwidth: 60 MHz (Max) Antenna: 2T2R Channels with DJI Goggles 3/N3: 60/40 MHz (1 Channel), 20/10 MHz (3 Channels) Channels with DJI Goggles 2/Integra: 40 MHz (1 Channel), 20/10 MHz (3 Channels) Channels (FCC/SRRC/COE, 60/40 MHz): Channel 1 at 5794.5 MHz Channels (FCC/SRRC/COE, 20/10 MHz): Channel 1 at 5768.5 MHz, Channel 2 at 5789.5 MHz, and Channel 3 at 5814.5 MHz |
| Latency | With DJI Goggles 3, Racing Mode, and 1080p/100: Down to 15 ms With DJI Goggles N3, Racing Mode, and 1080p/100: Down to 19 ms With DJI Goggles 2 or Integra and 1080p/100: Down to 30 ms |
| Power | |
| Power Source | Proprietary Interface |
| DC Input Power | 7.4 to 26.4 VDC |
| Physical | |
| Colour | Black |
| Operating Conditions | 14 to 104°F / -10 to 40°C |
| Dimensions | 1.3 x 1.3 x 0.5" / 33.5 x 33.5 x 13 mm (Transmission Module) 4.3" / 110 mm (Each Antenna) |
| Weight | 0.1 oz / 2.1 g (Each Antenna) |
In The Box
- DJI Transmission Module for O4 Air Unit Pro
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: DJI Transmission Module for O4 Air Unit Pro
- Manufacturer: DJI
- Model: 190021122482
- SKU: 190021122482
- RM Product #: 119825
- Series/Compatibility: FPV/Avata
