DPA Microphones 4160 Slim Omnidirectional Microphone with Hardwired MicroDot Connector (Beige)

Product #102781 | SKU 4160-OL-S-F00 | DPA Microphones
In stock Ships Monday
Our Price $739
In stock Ships Monday
- +

this item may be nonreturnable
Shipping & Availability
Ships Monday. Deliver to Auckland for $5.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 3 days
Click & Collect

Features

  • For Stage, Film, and Television
  • Normal SPL
  • Legacy Amplifier Technology
  • 20 Hz to 20 kHz Frequency Response
  • MicroDot Hardwired Connector
  • Easy Mounting and Tiny Footprint

Description

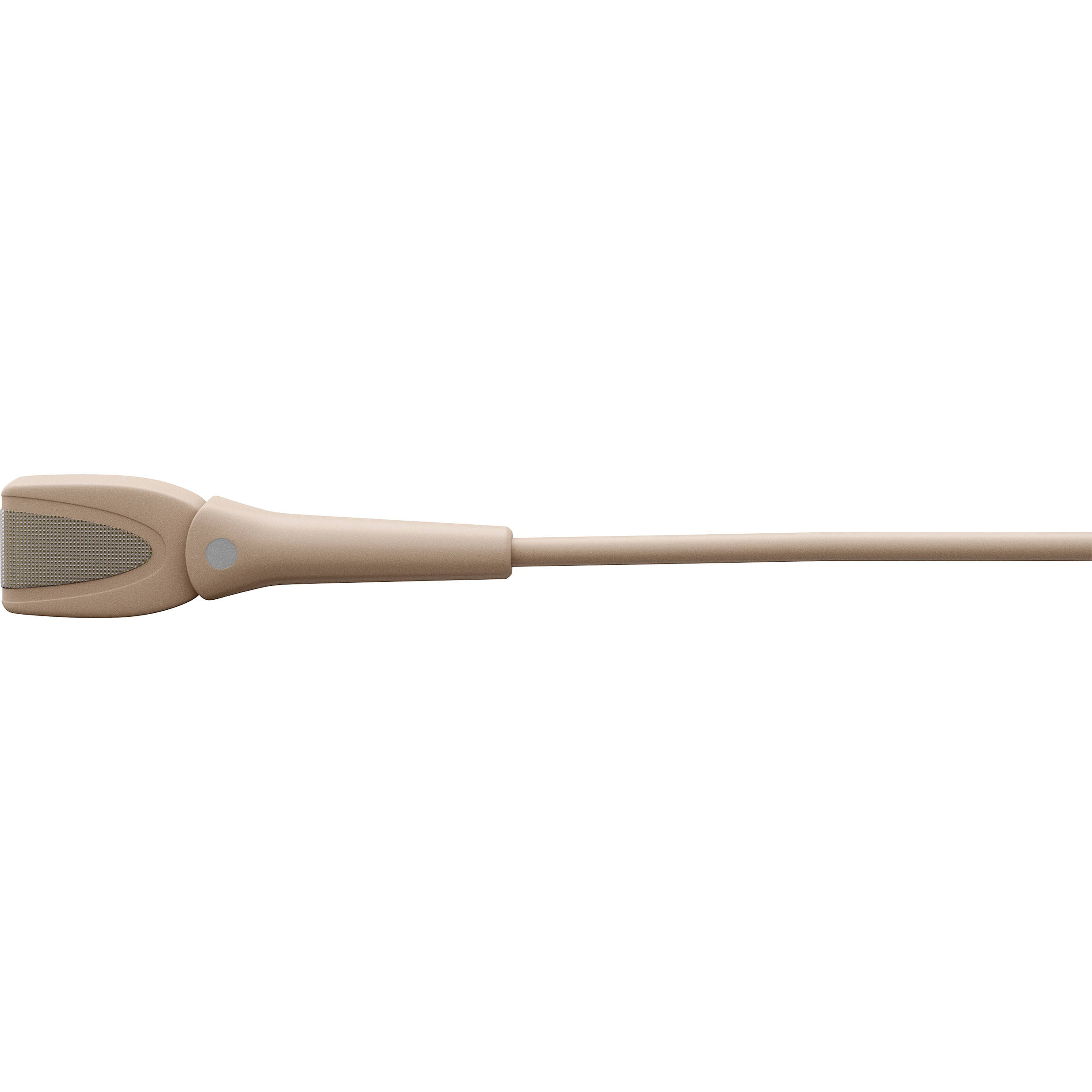

The DPA Microphones 4160 Slim Omnidirectional Microphone with Hardwired MicroDot Connector features the same capsule as the 4060 Omnidirectional Miniature Microphone, but in a different housing. It delivers sound on par with the legacy 4060, making it a suitable choice for any application requiring big sound and a small, hidden footprint. It is perfect for television and film application; especially suited for capturing speech in all of its nuances. The mic handles sound pressure levels up to 134 dB before clipping occurs and is well suited for applications where the sound source is more remote or dampened and you need to have a good balance signal versus noise.

Key Features
  • For Stage, Film, and Television
  • Normal SPL
  • Legacy Amplifier Technology
  • 20 Hz to 20 kHz Frequency Response
  • MicroDot Hardwired Connector
  • Easy Mounting and Tiny Footprint

Specifications

Sound Field Mono
Operating Principle Pressure Operated
Capsule Condenser
Polar Pattern Omnidirectional
Frequency Range 20 Hz to 20 kHz
Maximum SPL 134 dB SPL Peak
Impedance 40 Ohms
Sensitivity 20 mV/Pa at 1 kHz
Dynamic Range 100 dB A-Weighted
Signal-to-Noise Ratio 71 dB A-Weighted
Equivalent Noise Level 26 dB A-Weighted
THD < 1%
CMRR 60 dB
Output Microdot
Cable Length 5.9' / 1.80 m
Operating Voltage 5 to 50 V
Operating Current Consumption 1.5 mA
Operating Humidity 0 to 90%
Weight 0.3 oz / 8.51 g

In The Box

  • DPA Microphones d:screet 4160 Slim Omnidirectional Microphone with Hardwired MicroDot Connector (Beige)
  • Button-Hole Mount
