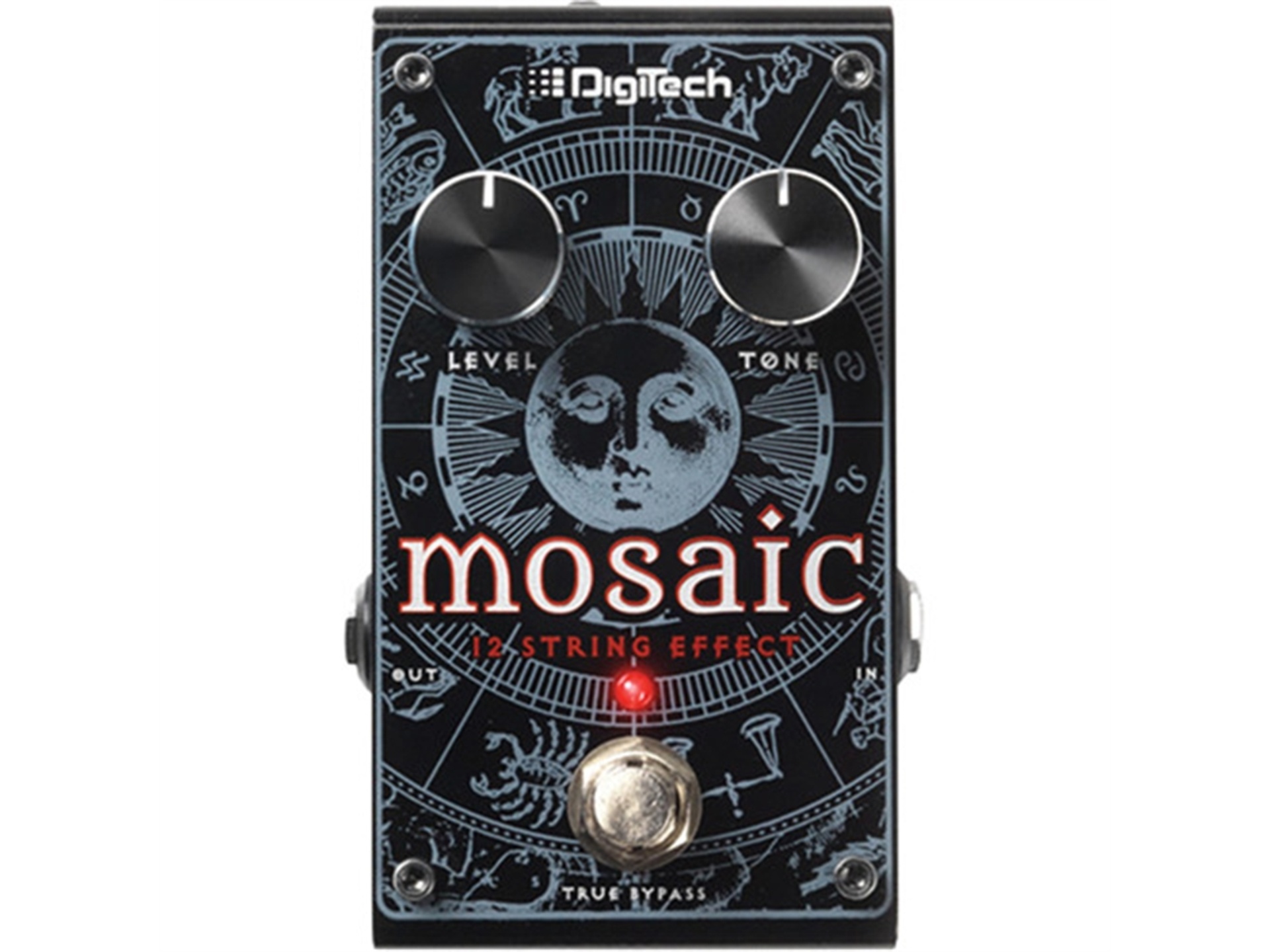

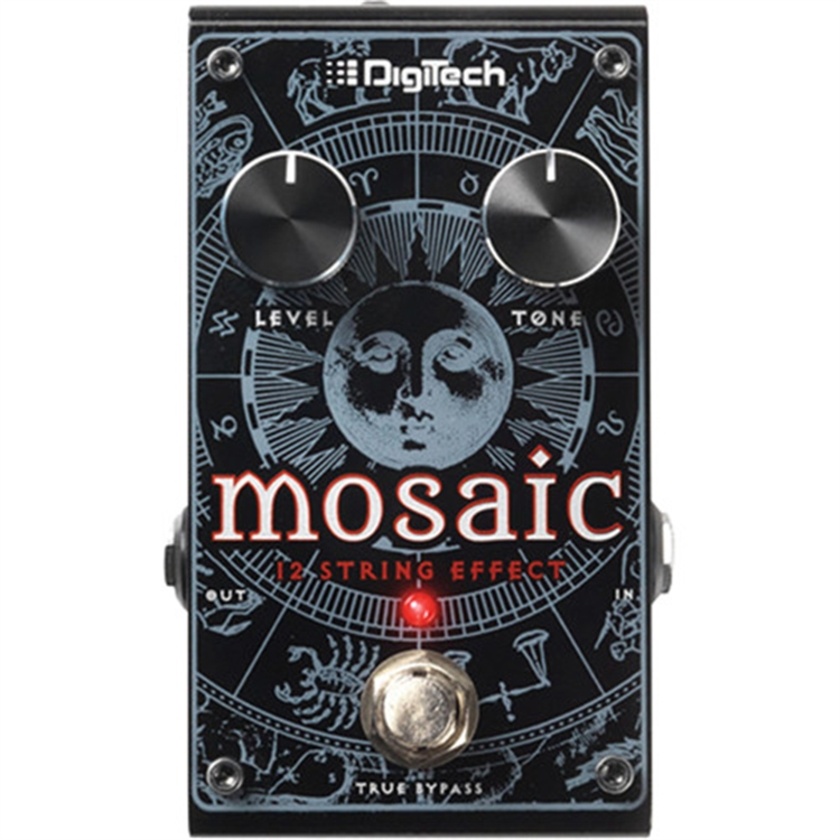

DigiTech Mosaic Polyphonic 12-String Effect Pedal

Product #35202 | SKU MOSAIC | DigiTech
In stock Ships Monday
Our Price $309
In stock Ships Monday
- +

this item may be nonreturnable
Shipping & Availability
Ships Monday. Deliver to Auckland for $5.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 3 working days
Click & Collect

Features

  • For Use with Electric or Acoustic Guitar
  • Generates a 12-String Guitar Sound
  • Advanced Polyphonic Pitch Shifting
  • Intelligent Doubling
  • Produces Low and High Octaves
  • True Bypass

Description

DigiTech introduces the DigiTech Mosaic Polyphonic 12-String Effect Pedal, a versatile tool that allows you to create rich and shimmering 12-string sounds with your 6-string electric or amplified acoustic guitar. With advanced polyphonic pitch shifting and intelligent doubling algorithms, this pedal accurately replicates the sound of a 12-string guitar, producing a monophonic and/or polyphonic signal one octave below and doubling high frequencies up to 1 kHz.

This effect pedal features user-friendly controls. The Level knob lets you blend the desired amount of effect into your dry signal, amplifying the 12-string effect. Adjusting the Tone knob enables you to control the overall brightness of the effect by modifying the level of high-frequency enhancement in your signal. Additionally, a red LED visually indicates the on/off status of the effect, and the true bypass design ensures the preservation of your original signal when the effect is turned off. The Mosaic is conveniently powered by the included 9 VDC power supply.

Specifications

Electronics
Sample Rate Sample Rate: 44.1 kHz
Frequency Response 20 Hz to 11 kHz (Effect Enabled)
Signal to Noise Ratio > -105 dB (A-weighted); ref = max level, 22 kHz bandwidth
THD 0.004% @ 1 kHz; ref = 1 dBu with unity gain
A/D Conversion 24-bit
Input
Input Type 1 x 1/4" mono
Maximum Input Level +5 dBu
Input Impedance 1 MOhm (Effect Enabled)
True bypass (Effect off)
Output
Output Type 1 x 1/4" mono
Maximum Output Level +10 dBu
Output Impedance 1 kOhm (Effect Enabled)
True bypass (Effect Off)
Power
Power Consumption 2.3 W (< 250 mA at 9 VDC)
Power Requirements PS0913DC 9 VDC external power adapter (centre negative)
Dimensions 4.75 x 2.88 x 1.75" / 12.1 x 7.3 x 4.4 cm
Weight 5.76 oz / 163 g

In The Box

  • DigiTech Mosaic Polyphonic 12-String Effect Pedal
  • DigiTech PS0913DC 9VDC Power Adapter

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: DigiTech Mosaic Polyphonic 12-String Effect Pedal
  • Manufacturer: DigiTech
  • Model: MOSAIC
  • SKU: MOSAIC
  • RM Product #: 35202
