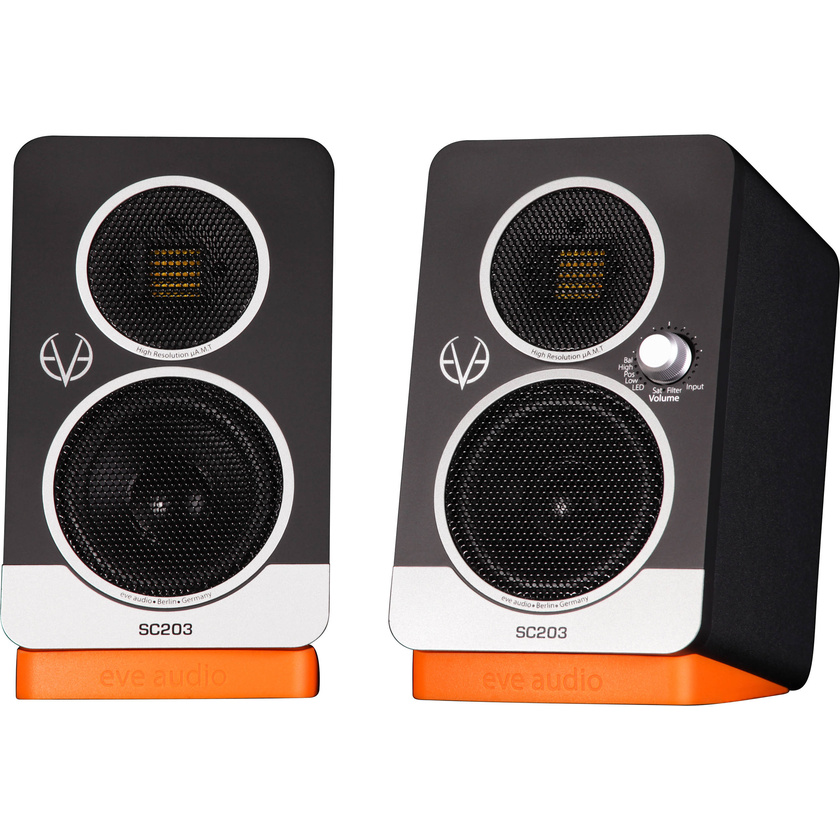

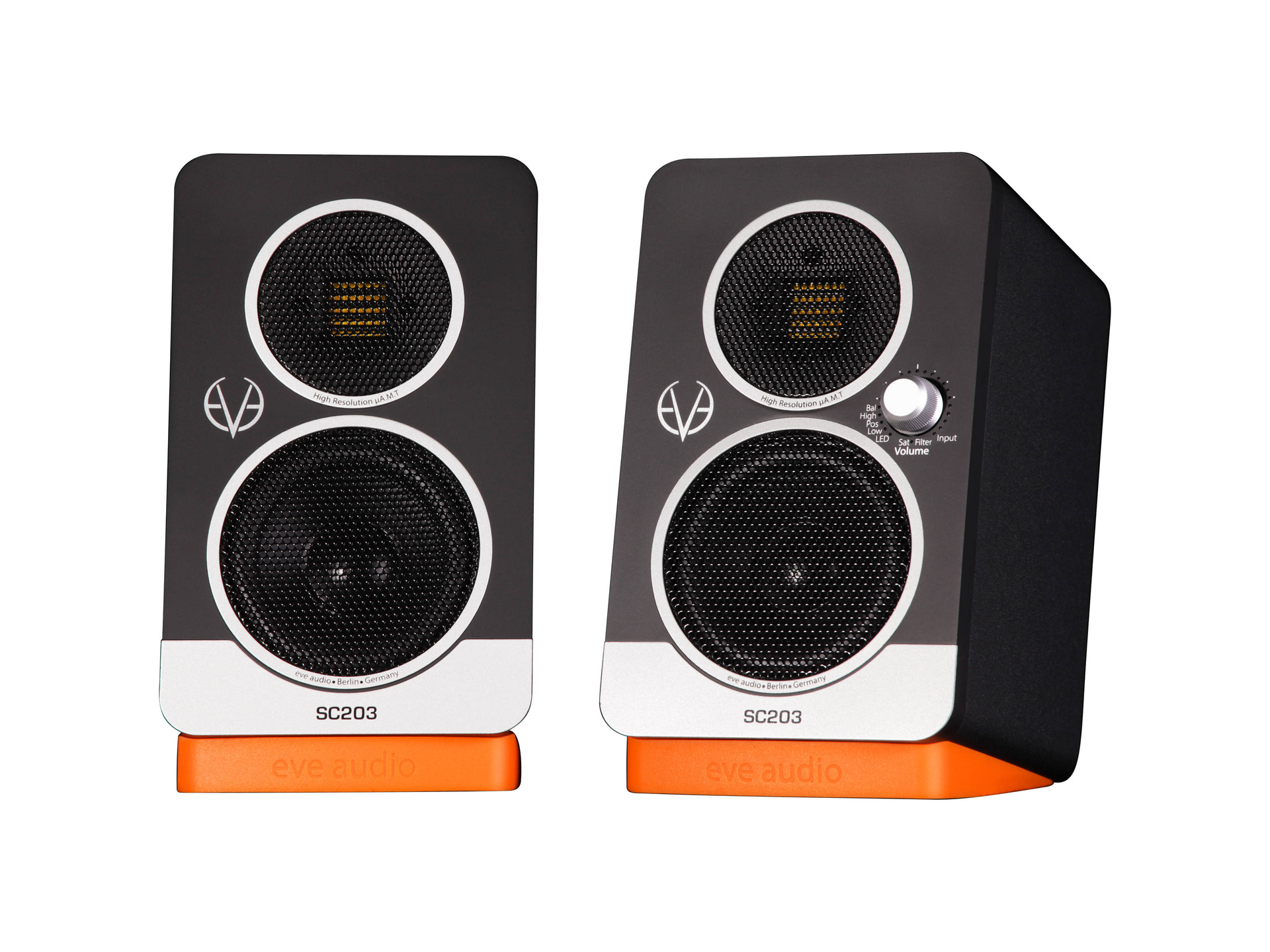

EVE Audio SC203 Master/Slave System

Product #117925 | SKU SC203 | EVE Audio
Usually ships in 2 - 3 weeks what does this mean?
Our Price $999
Usually ships in 2 - 3 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 weeks. Deliver to Auckland for $17 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 3 weeks
Click & Collect

Features

  • 62 Hz-21 kHz frequency range
  • 3" woofer size
  • 94 dB max. SPL
  • SMART-knob
  • Bass-reflex design

Description

The Eve Audio SC203 Master/Slave System offers impressive features. It includes a 3" woofer with a 1" voice coil that can handle a longer linear excursion. The speaker also has a large driver magnet to ensure stability, especially in border areas. With a 16mm high voice coil, you can easily achieve a linear back and forth swing of ±5mm. The SC203 also comes with a passive radiator at the back, which strengthens low-frequency reproduction and allows the speaker response to reach as low as 62 Hz (-3 dB) with minimal distortion.

Each SC203 setup is designed as a 2-way master-slave system and boasts four power amplifiers. Each woofer and tweeter is equipped with its own dedicated 30W PWM amplifier, complete with a separate filter section for precise control. In terms of connectivity, the SC203 offers three inputs: analogue RCA, digital optical, and USB. Additionally, a volume-controlled subwoofer output allows you to connect an extra subwoofer (TS107 or TS108) to the master speaker, creating a powerful 2.1 system. By using the DIP switch on the speaker's back panel, you can select the SC203 to function as satellites from 80 Hz and upwards, or as full-range units.

To enhance flexibility, the SC203 comes with the FlexiPad. This v-notch-shaped orange rubberized pad allows you to decouple the speaker from its base and precisely angle it at 0°, 7.5°, or 15°. This compact speaker is suitable for professional desktops with limited physical space, as well as discerning home and gaming users.

Specifications

Frequency Range Free-field Range: 62 Hz to 21 kHz
Tweeter µA.M.T
Mid-Woofers 3" (75 mm)
Crossover Frequency 4800 Hz
Maximum SPL @ 3.3' (1.0 m)
Amplifiers 4
Output Power Woofer/Tweeter: 30 W
Limiter Supports protection limiter
Volume +6 dB
Filter High-shelf Filter (-5 to 3 dB): > 3 kHz
Position: Flat, desk, console
Low-shelf Filter (-5 to 3 dB): < 300 Hz
Dip Switches Input Level: +8/+22 dBu
Standby: Locks continuous mode
Satellite Filter: 80 Hz high-pass filter
RCA 10 kOhms
Optical Input TOSLink
USB Type B
Power Consumption Standby: < 1 W
Full Output: 110 VA
Dimensions 4.6 x 7.5 x 5.3" (11.6 x 19.0 x 13.4 cm)
Weight Master: 4.2 lb (1.9 kg)
Slave: 3.7 lb (1.7 kg)
FlexiPad: 0.86 lb (190 g)

In The Box

  • Eve Audio SC203 Master/Slave System
  • FlexiPad
  • Mounting Adapter
  • Mounting Hardware

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: EVE Audio SC203 Master/Slave System
  • Manufacturer: EVE Audio
  • Model: SC203
  • SKU: SC203
  • RM Product #: 117925
