When it comes to long-distance networking construction, the Edimax IEEE 802.3at Gigabit PoE+ Extender is the perfect accessory to increase your PoE network performance to cover a longer distance up to 100 metres. The GP-101ET, a 1-Port Gigabit PoE Extender with plug and play installation requiring neither configuration nor extra electrical power, is an innovative and cost-effective repeater to extend on both data and power for another 100 metres. The delivery though one PSE (Power Source Equipment) and one the PD (Powered Device) are adequate to extend network devices such as WLAN access points, network cameras, IP phones and other appliances with Gigabit high-speed to the network for greater deployment flexibility.

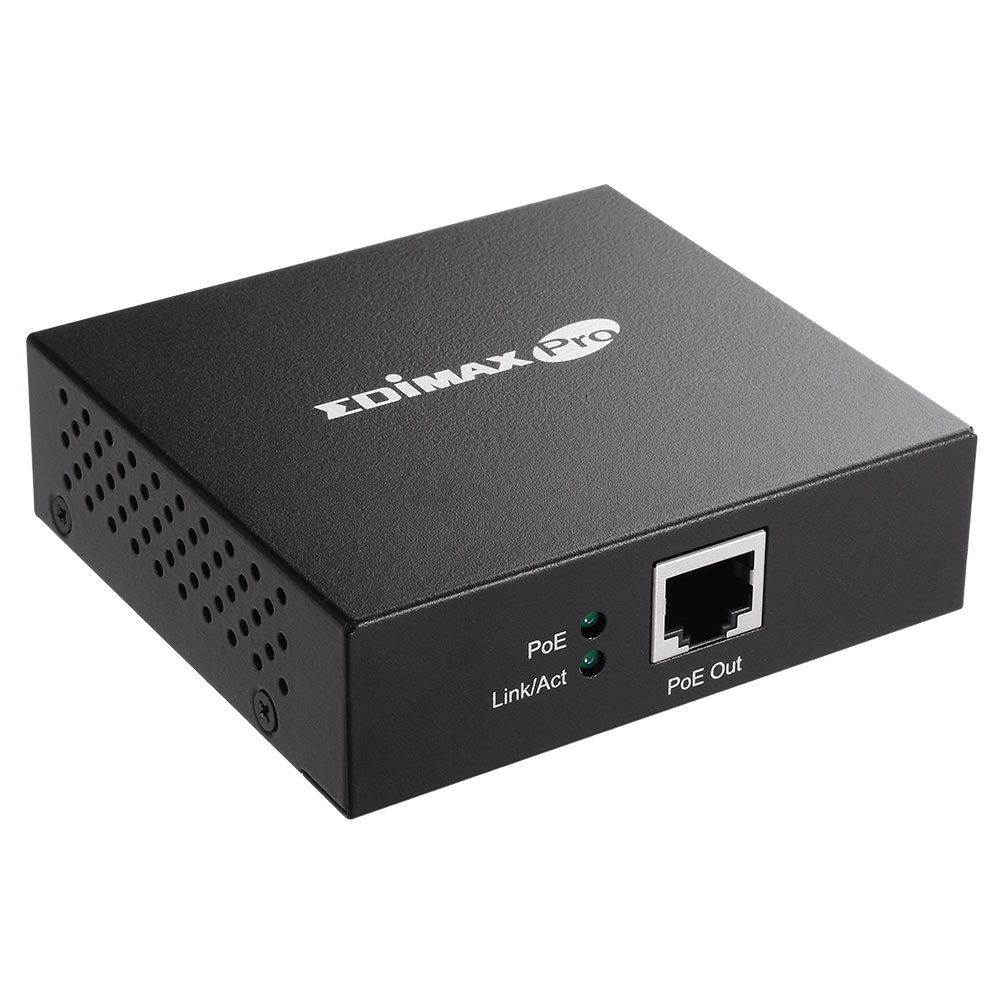

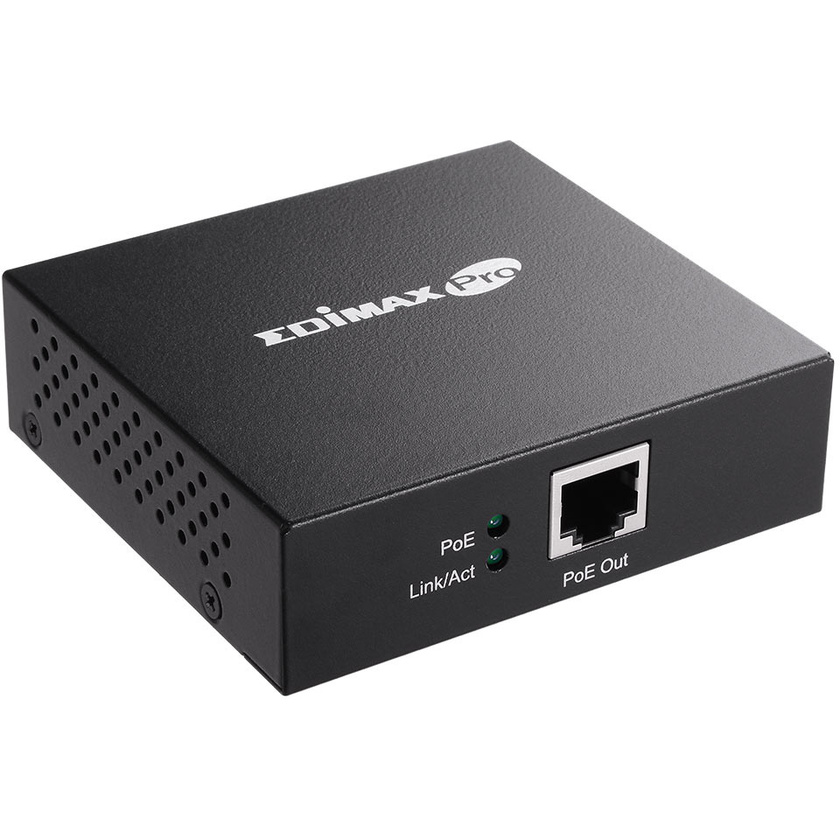

Edimax IEEE 802.3at Gigabit PoE+ Extender
In Stock with Supplier
Usually ships in 2 - 3 working days
Our Price
$88
In Stock with Supplier
Usually ships in 2 - 3 working days
Email me when stock arrives
Shipping & Availability
Usually ships in 2 - 3 working days.
Deliver to
Auckland
for $5.90
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
3 - 4 working days
Click & Collect
Features
- Complies with IEEE 802.3af and IEEE 802.3at Power over Ethernet (PoE) Standards
- Gigabit LAN ports provide high-speed connectivity
- PoE short circuit protection to safeguard network devices
- Extends PoE connection for another 100 meters (328 ft.)
- Reduces installation and equipment costs
- Easy plug-and-play desktop or wall-mounted installation
Description
Specifications
| Hardware | |
| Ports | 1x Port RJ45 10/100/1000Base-T PoE Input Port 1x Port RJ45 10/100/1000Base-T PoE Output Port |
| LED Indicators | Link/ACT and PoE |
| Power Input | IEEE 802.3af, IEEE 802.3at |
| Power Consumption | 1.2W |
| Dimensions (L x W x H) | 86.8 × 79.3 × 25.8 mm |
| Weight | 200g |
| POWER OVER ETHERNET | |
| Standard | IEEE 802.3af, IEEE 802.3at |
| Power Output | IEEE 802.3 af |
| Pin Assignment | 1/2(+), 3/6(-) End-Span |
| PoE Power Output | 15.4W (IEEE 802.3af) |
| ENVIRONMENT | |
| Temperature | Operating: 0°C ~ 40°C Storage: -40°C ~ 70°C |
| Humidity (Non-condensing) | Operating: 10% ~ 90% Storage: 5% ~ 90% |
| STANDARDS COMPLIANCE | |
| Standards | IEEE 802.3 10BaseT Ethernet IEEE 802.3u 100BaseTX Fast Ethernet IEEE 802.3ab 1000BaseT Gigabit Ethernet IEEE 802.3af Power Over Ethernet (PoE) IEEE 802.3at Power Over Ethernet Plus (PoE+) |
| Certifications | FCC, CE |
In The Box
- Edimax IEEE 802.3at Gigabit PoE+ Extender
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Edimax IEEE 802.3at Gigabit PoE+ Extender
- Manufacturer: Edimax
- Model: GP-101ET
- SKU: GP-101ET
- RM Product #: 99080
- Warranty: Click here for warranty terms view terms
