The Edimax Technology Long Range 8-Port Gigabit PoE+ Switch with DIP Switch is designed for homes and small- to medium-sized network environments. The PoE port can be set for On-Off control to extend the PoE delivery distance up to 200m at 10 Mb/s, and also support port-based On-Off for VLAN and QoS functions. The switch connects and supplies power to PoE-enabled devices such as wireless access points, network cameras, and IP phones, as well as other Ethernet-enabled devices such as computers, printers, and network attached storage (NAS).

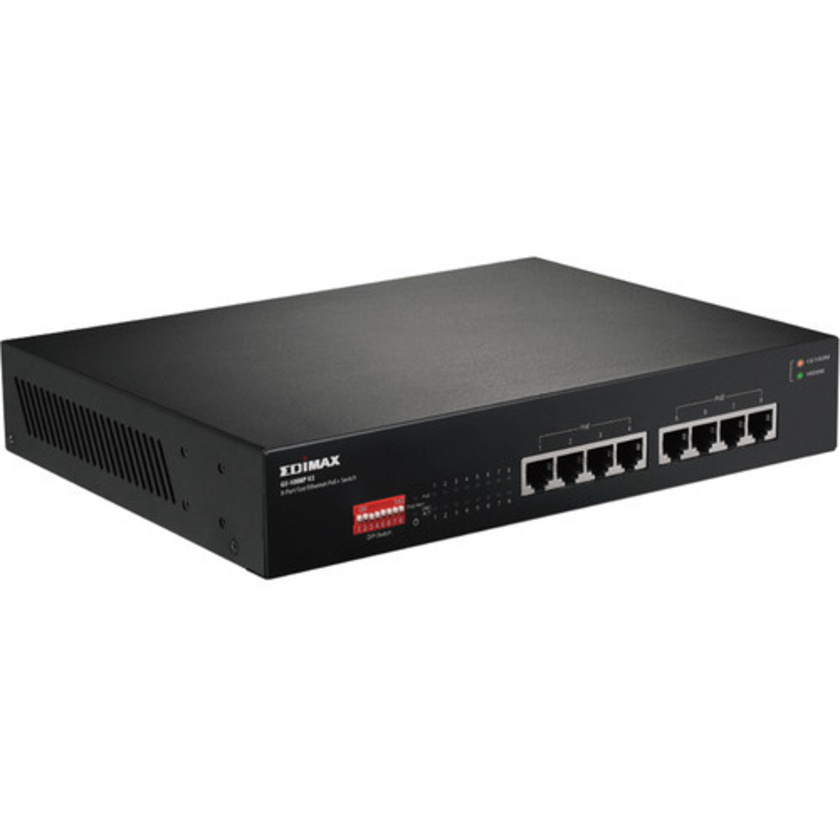

Edimax Technology Long Range 8-Port Gigabit PoE+ Switch with DIP Switch
In stock
Ships tomorrow
Our Price
$253.13
In stock
Ships tomorrow
this item may be nonreturnable
Shipping & Availability
Ships tomorrow.
Deliver to
Auckland
for $12
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
4 - 5 working days
Click & Collect
Features
- 8 x 10/100/1000 Mb/s Gigabit PoE+ Ports
- IEEE 802.3af/at PoE compliant
- PoE Transmit up to 200m at 10 Mb/s
- Port-Based VLAN and Loop Protection
- Plug-and-Play Design
- Fan-Less Quiet & Compact Design
Description
Specifications
| Interfaces | |
| Ports | 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ |
| Protocols | |
| Transmission Method | Store-and-Forward |
| Jumbo Frames Support | 9000 Bytes |
| MAC Address Table Size | 8K |
| Standards | |
| Supported IEEE Standards | 802.3, 802.3ab, 802.3af, 802.3at, 802.3az, 802.3u, 802.3x |
| Performance | |
| Forwarding Rate | 1.49 Mpps |
| Packet Buffer | 128 Kb |
| Electrical | |
| Power Draw | 5.0 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| PoE Power Budget | 130 W |
| PoE per Port | 30 W |
| Environmental | |
| Operating Temperature | 0 to 40°C |
| Operating Humidity | 10 to 90% |
| Storage Temperature | -40 to 70°C |
| Storage Humidity | 5 to 90% |
| Certifications | CE, FCC, as per Manufacturer |
| General | |
| Indicator Lights | Link/Activity, PoE, Power |
| Dimensions | 26.5 x 18.4 x 4.4 cm |
| Weight | 1.6kg |
In The Box
- Edimax Technology Long Range 8-Port Gigabit PoE+ Switch with DIP Switch
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Edimax Technology Long Range 8-Port Gigabit PoE+ Switch with DIP Switch
- Manufacturer: Edimax
- Model: GS-1008PV2
- SKU: GS-1008PV2
- RM Product #: 99052
- Warranty: Click here for warranty terms view terms
