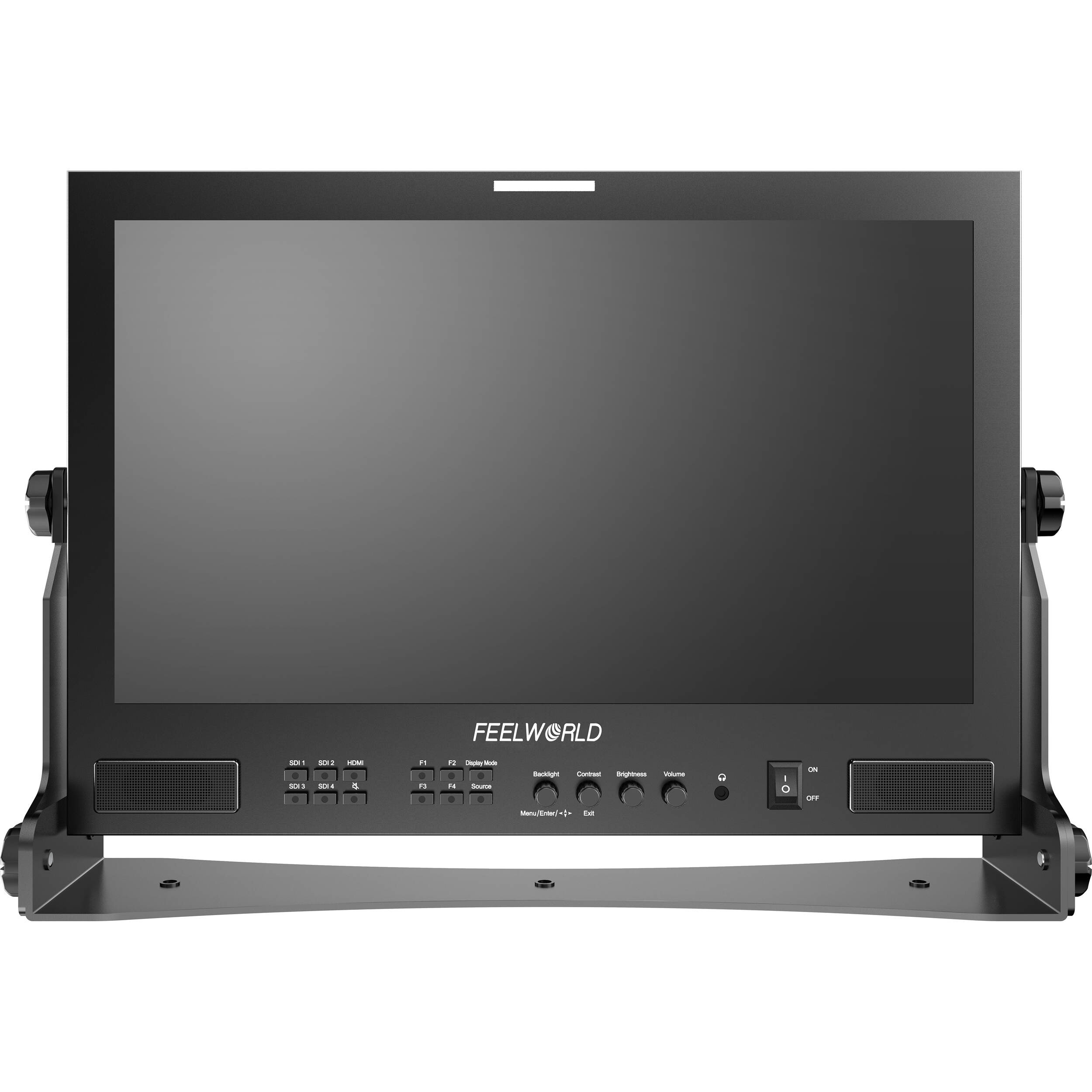

The FeelWorld 17.3" Live Stream HD Broadcast Director Monitor features a quad-split display with a maximum resolution of 1920 x 1080 and 300 cd/m2 brightness. The rear panel contains four 3G-SDI inputs that support up to 2K input, there are four 3G-SDI outputs and one HDMI output, and it supports quad-view, dual-view, and PiP display layouts so you can view inputs simultaneously. A desktop stand is included and allows you to adjust the monitor's tilt angle.
FeelWorld ATEM173S 17.3" Live Stream HD Broadcast Director Monitor (Desktop Stand)
In Stock with Supplier
Usually ships in 2 - 3 weeks
Our Price
$2,039
In Stock with Supplier
Usually ships in 2 - 3 weeks
Email me when stock arrives
Shipping & Availability
Usually ships in 2 - 3 weeks.
Deliver to
Auckland
for $15
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
2 - 3 weeks
Click & Collect
Features
- 1920 x 1080 Resolution, 300 cd/m²
- 4 x 3G-SDI Inputs, Quad-Split Display
- 1 x HDMI & 4 x 3G-SDI Outputs
- V-Mount Battery Plate
- GPI Input/Output, RS-485 Control Port
Description
Specifications
| Display | |
| Panel Type | IPS-Type LCD |
| Display Size | 17.3" / 43.9 cm |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 178° (89/89) Vertical: 178° (89/89) |
| Touchscreen | No |
| Maximum Brightness | 300 cd/m2 |
| Contrast Ratio | 700:1 |
| Dot Pitch | 0.1989 x 0.1989 mm |
| HDR Compatibility | Yes |
| Pixels Per Inch (ppi) | 127 ppi |
| Image Controls | Anamorphic De-Squeeze, Blue Only, Cheque Field, False Colour, Focus Assist, Focus Peaking, Green Only, Image Rotate, Red Only, Screen Markers, Screen Split - Half, Screen Split - Quarter |
| I/O | |
| Video | 4 x BNC (3G-SDI) Input 4 x BNC (3G-SDI) Output 1 x HDMI Type A Output |
| Audio | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Power I/O | 1 x Barrel (12 VDC) Input 1 x XLR 4-Pin Input |
| Other I/O | 1 x GPI (RJ45) Input 1 x GPI (RJ45) Output 1 x RS-485 (RJ45) Input 1 x USB 2.0 (USB Type-A) Input |
| Media/Memory Card Slot | None |
| Wi-Fi | None |
| Format Support | |
| Video Format | SDI (8-Bit) DCI 2K: 60/59.94/50/30/29.97/25/24/23.98 DCI 2Ki: 60/59.94/50 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 1080PsF: 24/23.98 720p: 60/59.94/50/30/29.97/25/24/23.98 576p 480p HDMI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576p 576i 480p 480i |
| Gamma Curve | Rec709 |
| Power | |
| DC Input Power | 12 VDC |
| Battery Type | 1 x V-Mount (Interchangeable Mount) |
| Power Consumption | 22 W |
| Mounting | |
| Mounting-Hole Pattern | 100 x 100 mm, 75 x 75 mm |
| Environmental | |
| Operating Temperature | -10 to 50°C |
| Storage Temperature | -20 to 60°C |
| General | |
| Dimensions | 42.5 x 29.6 x 2.3 cm, Excluding Bracket |
| Weight | 2.84 kg, Excluding Bracket |
In The Box
- FeelWorld 17.3" Live Stream HD Broadcast Director Monitor (Desktop Stand)
- Power Adapter
- V-Mount Battery Plate
- Mini-HDMI Cable
- SDI Cable
- Sun Hood
- Desktop Stand
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: FeelWorld ATEM173S 17.3" Live Stream HD Broadcast Director Monitor (Desktop Stand)
- Manufacturer: Feelworld
- Model: ATEM173S
- SKU: ATEM173S
- RM Product #: 98715
- Screen Size: 17.3"
- Screen Resolution: 1920 x 1080
- Display Size: 17.3 inches
- Warranty: 1 year manufacturer warranty
