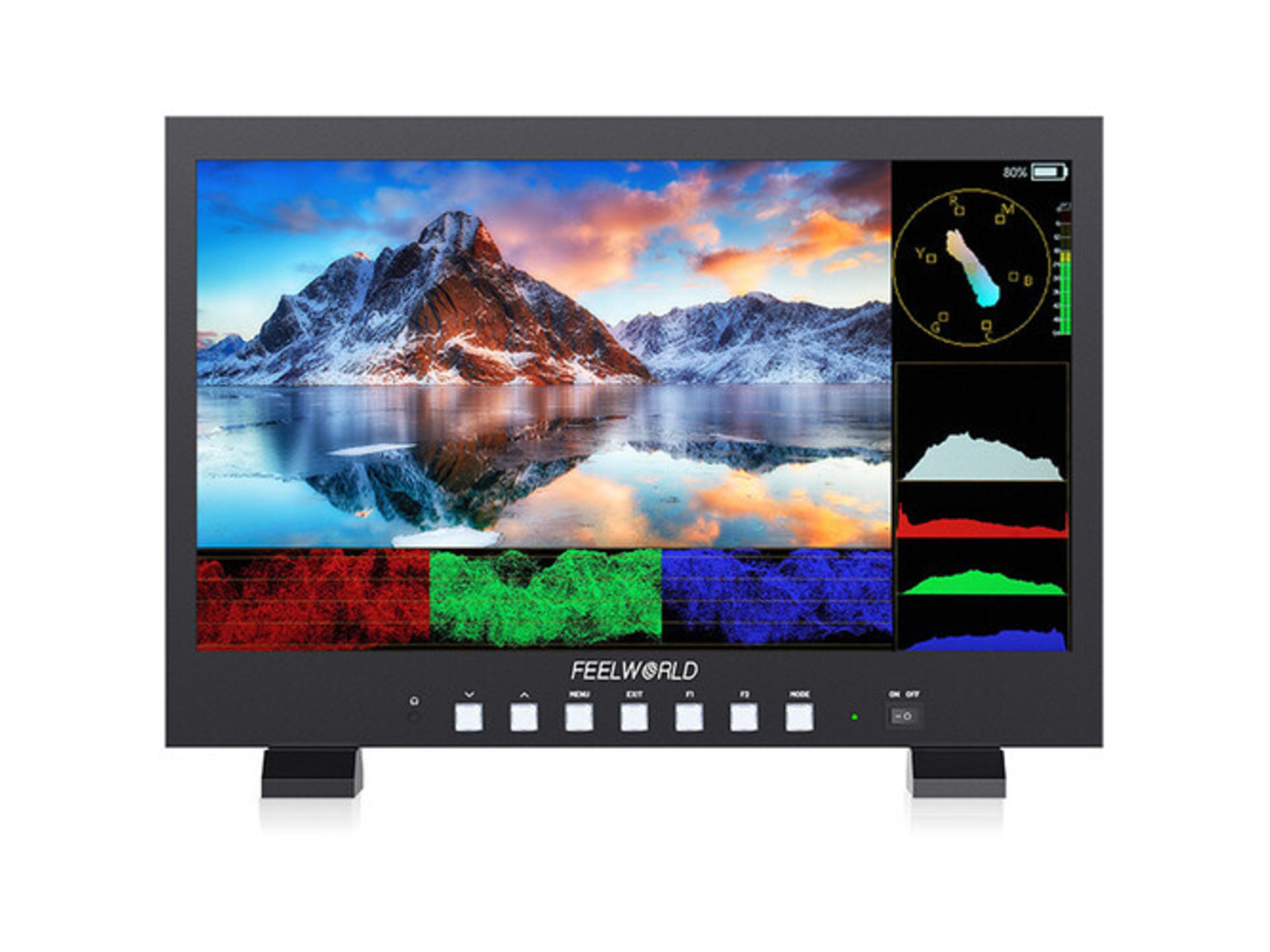

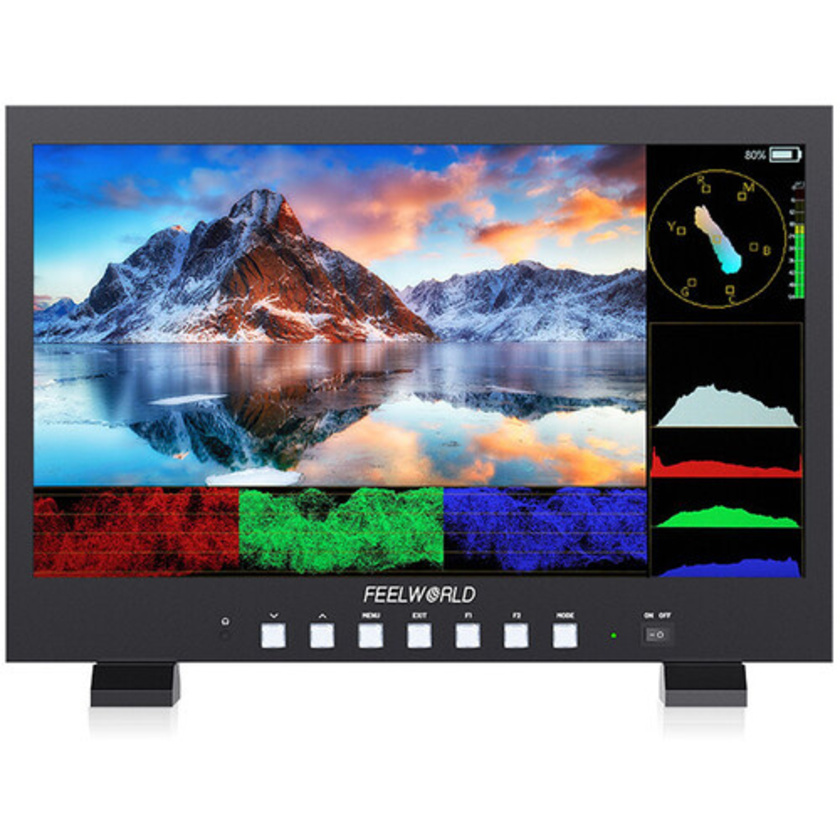

FeelWorld FVM215-1000 21.5" High-Bright Broadcast Monitor

Product #121508 | SKU FVM215-1000 | Feelworld
In Stock with Supplier Usually ships in 2 - 3 weeks what does this mean?
Our Price $699
In Stock with Supplier Usually ships in 2 - 3 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 weeks. Deliver to Auckland for $18 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 3 weeks
Click & Collect

Features

  • 21.5" 1920 x 1080 IPS LCD
  • Up to DCI/UHD 4K60 Input
  • High 1000 cd/m² Brightness
  • HDMI & 3G-SDI Inputs/Outputs
  • V-Mount Battery Plate
  • 178/178° Viewing Angle, USB 3D LUT Input

Description

The FeelWorld FVM215-1000 21.5" High-Bright Broadcast Monitor is equipped with a high brightness full HD large screen, which presenting crisp and clear images in any daylight situation or indoors. On-site monitoring just gets easier for you and your customers. It works with all SD/HD/3D-SDI and up to 4K HDMI@60Hz video formats and including XLR,DC IN power input and V-mount battery plate so you can use it with battery or plug it into DC power. A series of camera auxiliary functions can help photographer to compose on-site and save post production time. This monitor can be mounted on wall through a VESA mount points in addition to a desktop stand. FVM215-1000 is perfect for live production, on-site shooting and broadcast studio.

21.5" Full HD Large Screen

Clearly checking and capture every nuance Equipped with 21.5-inch full HD large screen, rich colors present high quality image.178°(H/V) wide viewing angle large screen with professional color gamut, almost no color difference at any angle.

Professional CalMan Software Calibration

Each monitor under goes color calibration via CALMAN professional software prior to leaving the factory,ensure color accuracy and good reproduction.

1000NIT, Fearless of Sunlight

High brightness 1000nit is viewable in almost every kind of light. Indoors, outdoors or anywhere you need.

Load Custom 3D LUTs,Preview Filming Look in Field Shooting

The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in LOG or upload .cube files define your own creative cinematic style Whatever you like. The user stores the LUT document in the root directory of the USB flash driver, and insert to USB interface of the device (up to 32 custom files can be imported).

Accurate waveform monitoring

Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. FVM215-1000 becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!

Intuitive Button Operation

The intuitive button design,clear at a glance, easy to setup. The 2 custom function keys can be set the common function as shortcut key,improve working efficiency.

Compatible with Camcorder and DSLR

FVM215-1000 is equipped with a 3G-SDI input and output and two HDMI 2.0 inputs and outputs support up to 4K 60Hz,compatible with professional camcorder and various cameras. Plus, it also has stereo headphone jack and speaker.

Specifications

Display
Panel Type IPS-Type LCD
Display Size 21.5" / 54.6 cm
Native Resolution 1920 x 1080
Aspect Ratio 16:9
Viewing Angle Horizontal: 178°
Vertical: 178°
Touchscreen No
Maximum Brightness 1000 nits / cd/m2
Contrast Ratio 1000:1
Colour Support 16.7 Million Colours (8-Bit)
HDR Support No
LUT Support Yes
Image Controls Anamorphic De-Squeeze, Cheque Field, Colour Temperature Selection, Customisable Aspect Ratios, False Colour, Focus Assist, Histogram, Image Flip, Image Freeze, Overscan, Screen Markers, Underscan, Vectorscope, Waveform, Zebra
Inputs/Outputs
Video I/O 2x HDMI 2.0 Input
2x HDMI 2.0 Output
1x BNC (3G-SDI) Input
1x BNC (3G-SDI) Output
Embedded Audio HDMI/SDI
Audio I/O 1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker Stereo
Power I/O 1x XLR 4-Pin Input
1x Barrel (5 A / 12 VDC) Input
Other I/O 1x USB-A (Firmware/LUT Upload)
Media/Memory Card Slot No
Wi-Fi No
Bluetooth No
Mobile App Compatible No
Format Support
Video Format HDMI
DCI 4K: 24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
Gamma Curve ARRI Log C, Sony S-Log 2, Sony S-Log 3, V-Log
Power
Input Power 12 to 24 VDC
Battery 1x V-Mount on Fixed Plate
Power Consumption 52 W (Maximum)
Mounting
VESA Mounting-Hole Pattern 100 x 100 mm
General
Environmental Resistance No
Operating Conditions 32 to 122°F / 0 to 50°C
Storage Conditions -4 to 140°F / -20 to 60°C
Dimensions 20.1 x 13.6 x 0.9" / 511.6 x 345 x 21.8 mm
Weight 9.44 lb / 4.28 kg

In The Box

  • FeelWorld FVM215-1000 21.5" High-Bright Broadcast Monitor
  • Power Adapter
  • V-Mount Battery Plate
  • Micro-HDMI Cable
  • HDMI Cable
  • SDI Cable

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: FeelWorld FVM215-1000 21.5" High-Bright Broadcast Monitor
  • Manufacturer: Feelworld
  • Model: FVM215-1000
  • SKU: FVM215-1000
  • RM Product #: 121508
  • Screen Size: 21.5"
  • Screen Resolution: 1920 x 1080
  • Warranty: 1 year manufacturer warranty
