The Focusrite Scarlett 18i16 18x16 USB Audio Interface is ideal for multitrack recording. It has pro-grade converters taken directly from Focusrite’s RedNet range; the four 4th Gen mic preamps have an impressive 69dB of gain, capable of capturing the most dynamic performances. Auto Gain and Clip Safe modes take care of levels so you can focus on the take. Scarlett 18i16 is also the perfect hub to integrate your DAW and hardware with enough analogue and digital I/O to connect multiple external instruments, processors and effects, and manage complex routing with incredible ease via Focusrite Control 2 software.

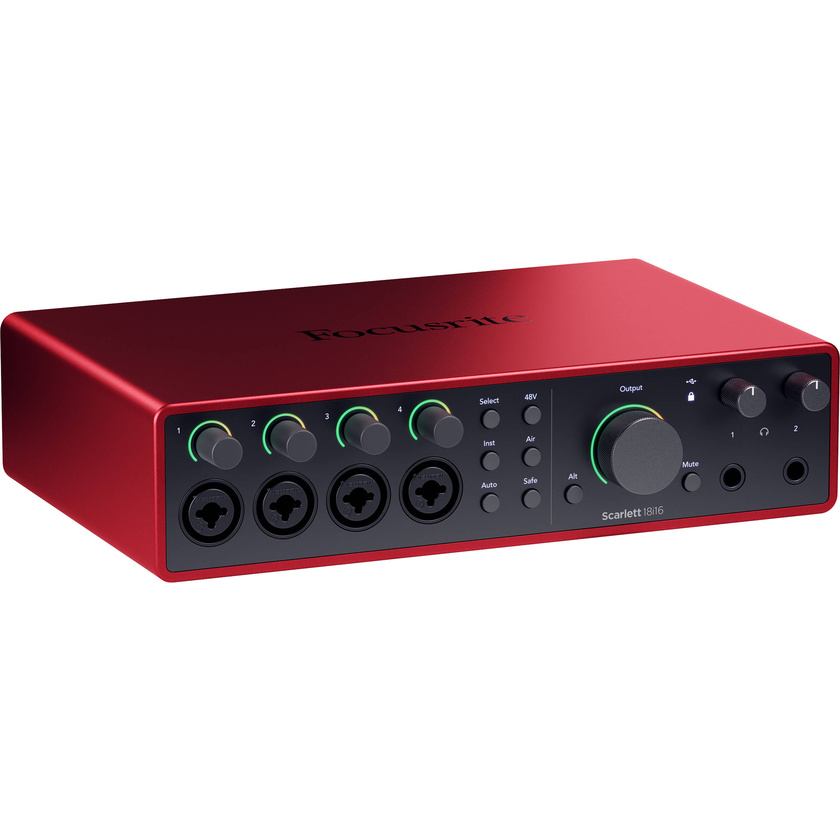

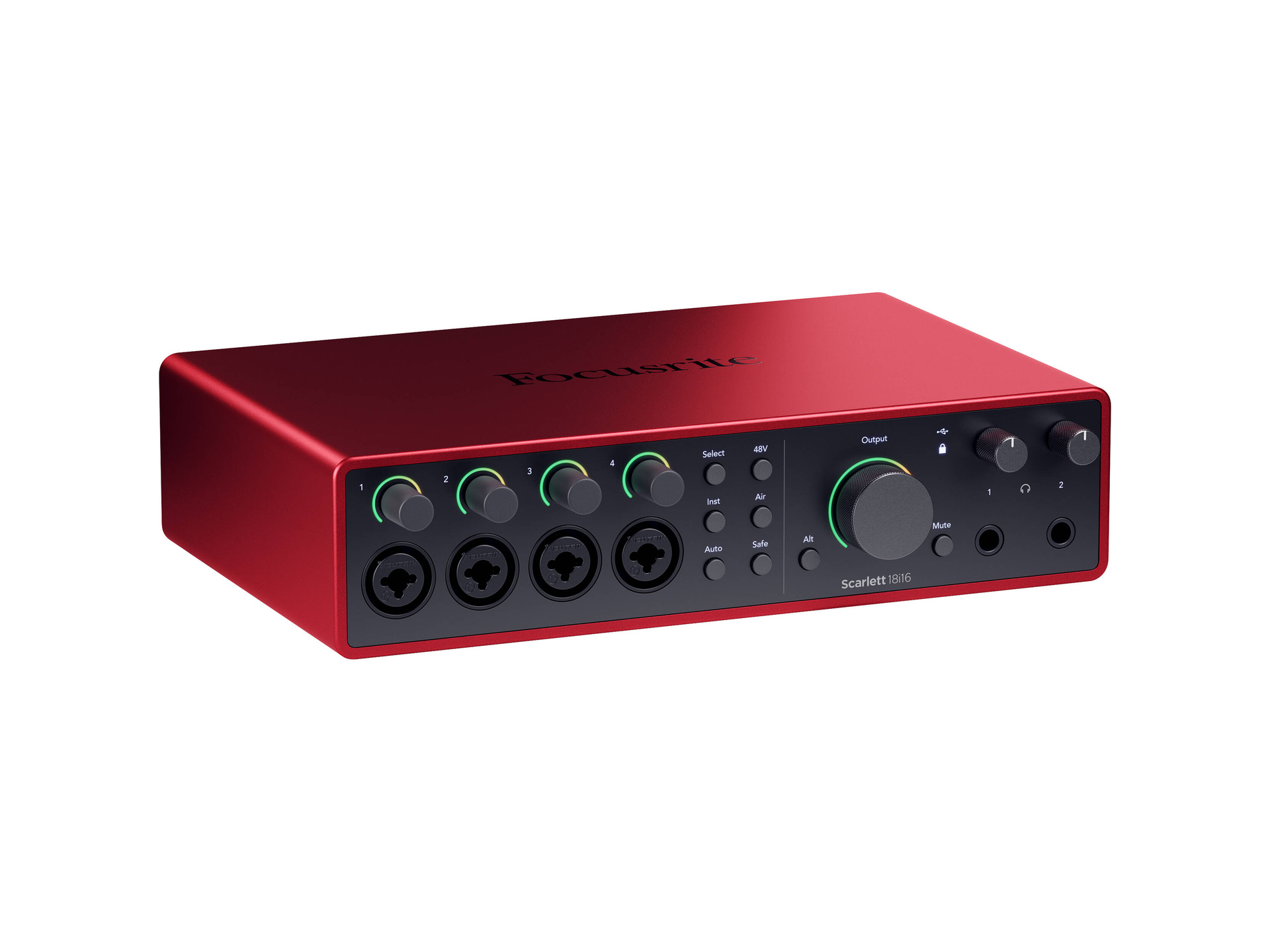

Focusrite Scarlett 18i16 18x16 USB Audio Interface (4th Generation)
In stock
Ships today
Shipping & Availability
Ships today.
Deliver to
Auckland
for $12
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
2 - 3 working days
Click & Collect
Features
- 18 inputs and 16 outputs
- 4th gen pre-amps
- Auto Gain and Clip Safe modes
- Re-engineered Air mode
- Low latency monitoring
- 24-bit, 192 kHz conversion
Description
Specifications
| Key Specs | |
| Channels of I/O | 18 Inputs / 16 Outputs |
| Maximum Sampling Rate | 192 kHz / 24-Bit |
| Number of Microphone Inputs | 2 |
| Analogue Audio I/O | 2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input (Front Panel) 6x 1/4" TRS Line Input 4x 1/4" TRS Line Output 2x 1/4" TRS Headphone Output |
| Digital Audio I/O | 1x TOSLINK Optical ADAT Input 1x TOSLINK Optical ADAT Output 1x RCA Coaxial S/PDIF Input 1x RCA Coaxial S/PDIF Output |
| Host Connection | 1x USB-C (Class-Compliant) |
| OS Compatibility | macOS Windows iPadOS Chrome OS |
| Power Requirements | AC/DC Power Adapter (Included), USB Bus Power |
| Channels of I/O | 18 Inputs / 16 Outputs |
| Built-In DSP | No |
| Maximum Sampling Rate | 192 kHz / 24-Bit |
| Number of Microphone Inputs | 2 |
| Input Level Adjustment | 2x Knob |
| Signal Processing | |
| Pad | No |
| Gain/Trim Range | Mic Inputs: 69 dB |
| High-Pass Filter | No |
| Solo/Mute | No |
| Connectivity | |
| Analogue Audio I/O | 2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input (Front Panel) 6x 1/4" TRS Line Input 4x 1/4" TRS Line Output 2x 1/4" TRS Headphone Output |
| Phantom Power | 48 V, Selectable On/Off |
| Digital Audio I/O | 1x TOSLINK Optical ADAT Input 1x TOSLINK Optical ADAT Output 1x RCA Coaxial S/PDIF Input 1x RCA Coaxial S/PDIF Output |
| Host Connection | 1x USB-C (Class-Compliant) |
| Host Connection Protocol | USB 2.0 |
| USB (Non-Host) | 1x USB-C (Power Input) |
| Sync I/O | No |
| Network I/O | No |
| MIDI I/O | 1x DIN 5-Pin Input 1x DIN 5-Pin Output |
| Expansion Slots | No |
| Wireless | No |
| Performance | |
| Dynamic Range | 120 dB |
| Digital Audio | |
| Sample Rates | Up to 192 kHz |
| Sample Rate Conversion | No |
| Bit Depths | 24-Bit |
| Audio Storage & Playback | |
| Media/Memory Card Slot | No |
| Compatibility | |
| OS Compatibility | macOS Windows iPadOS Chrome OS |
| Mobile Device Compatibility | iPad (with USB-C) |
| Power | |
| Power Requirements | AC/DC Power Adapter (Included), USB Bus Power |
| AC/DC Power Adapter | 5 VDC at 3 A |
| Power Consumption | 15 W |
| Physical | |
| Dimensions | 9.43 x 6.66 x 2.38" / 23.95 x 16.92 x 6.05 cm |
| Weight | 3.2 lb / 1.5 kg |
In The Box
- Focusrite Scarlett 18i16 18x16 USB Audio Interface (4th Generation)
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Focusrite Scarlett 18i16 18x16 USB Audio Interface (4th Generation)
- Manufacturer: Focusrite
- Model: FOCMOSC0036
- SKU: FOCMOSC0036
- RM Product #: 117634
- Warranty: 3 year manufacturer warranty
