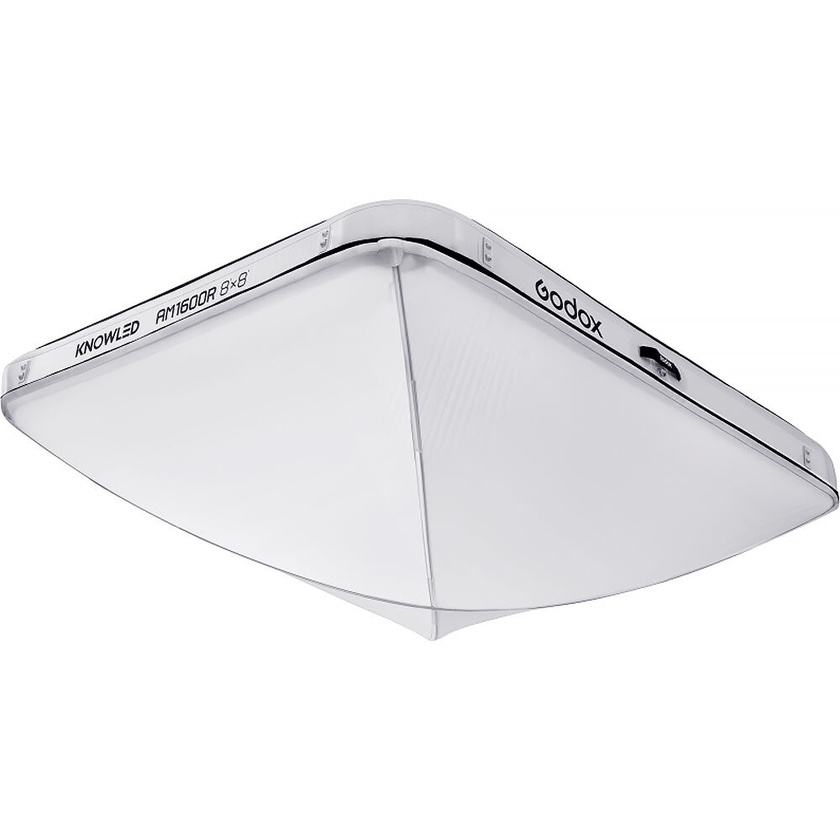

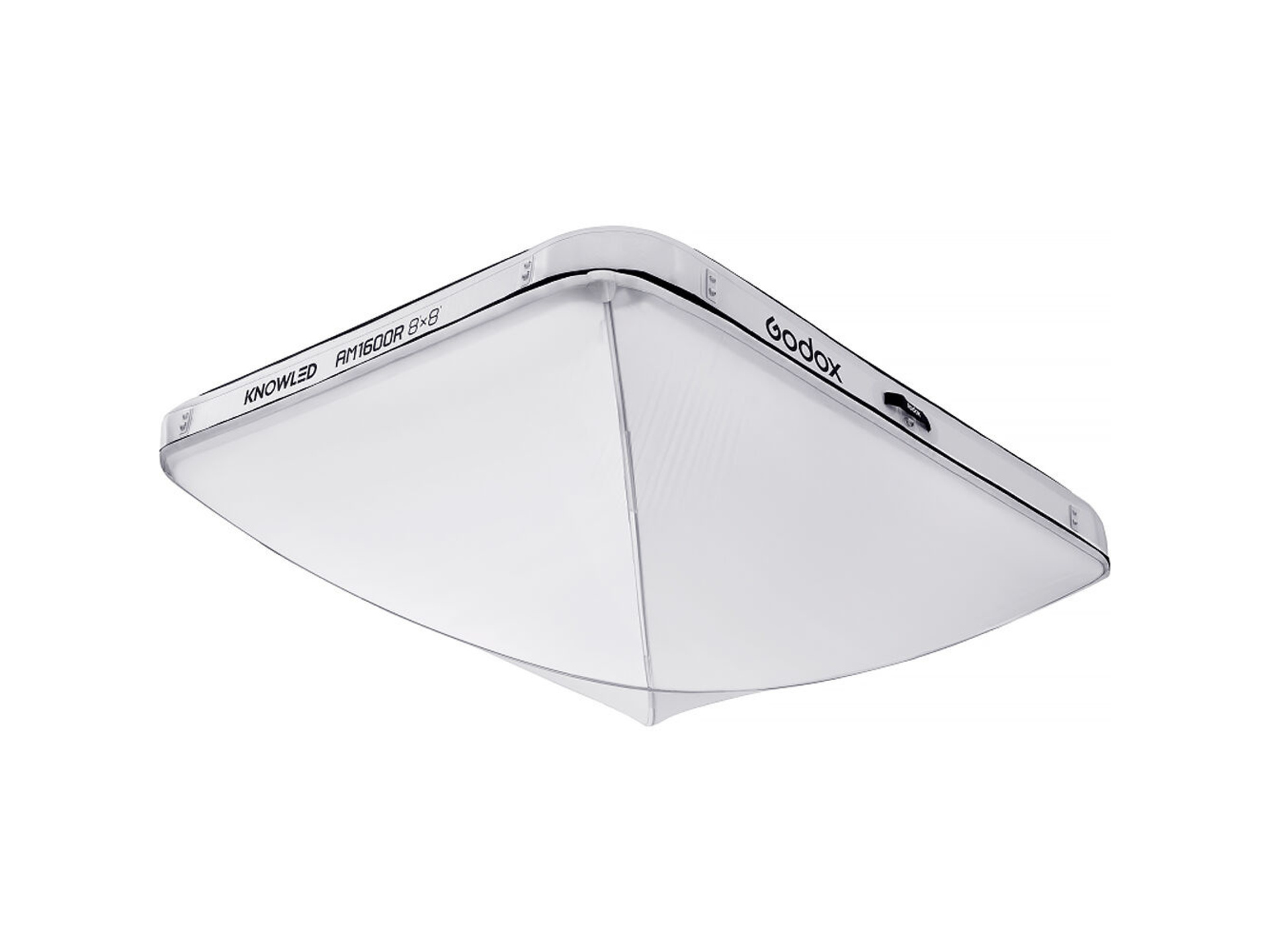

Godox KNOWLED AM1600R RGB Inflatable LED Light Mat (8 x 8')

Product #123661 | SKU AM1600R 88K | Godox
Usually ships in 4 - 6 weeks what does this mean?
Our Price $16,995
Usually ships in 4 - 6 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 4 - 6 weeks. Deliver to Auckland for $131 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 4 - 6 weeks
Click & Collect

Features

  • For Studio & Film/TV Production
  • 1800W Fixture with NFC Controller
  • 1800-10,000K; RGB Colour Control
  • 8 x 8' Light Body; AC Power
  • Onboard, DMX/RDM, CRMX & App Control
  • Supports Art-Nett & sACN Protocols

Description

The Godox KNOWLED AM1600R RGB Inflatable LED Light Mat (8 x 8') stands out as a distinctive, foldable, and quick-to-assemble lighting solution specifically designed for large-scale film and television studios. Offering an expanded 8 x 8' body, this AM1600R model surpasses the size of its 4 x 8' counterpart, providing a bigger footprint that still retains portability despite its added weight. To accommodate bigger production sets, the AM1600R delivers smooth, diffused illumination and ships with a soft film accessory along with two diffusers, ensuring soft and even light distribution.

Inflatable Butterfly Frame

At its core, the AM1600R boasts a durable, inflatable butterfly frame that eliminates the need for truss support during overhead use. Thanks to its high-pressure 8-PSI quick inflation capability, the fixture can be fully set up and suspended for up to 15 days without requiring reinflation. Its robust construction is further enhanced by an IP54 rating, making it suitable for various production environments.

Versatile and Advanced Lighting Features

This professional fixture is part of the KNOWLED series by Godox and is packed with advanced features. The AM1600R supports multiple lighting modes with a versatile CCT (Correlated Color Temperature) selection range from a broad 1800 to 10,000K. It also offers precise +/- green/magenta color correction, enabling fine-tuned color adjustments to suit a range of creative needs.

Comprehensive Modifier Kit

Beyond the included soft film and two diffusers, the AM1600R comes with an extensive selection of additional modifiers. Lighting designers will appreciate the included pancake lantern, a grid, and a skirt, opening up a variety of options for shaping and controlling light output to match any production requirement.

Ready-to-Go Accessories

Godox ensures that the AM1600R is ready for professional use straight out of the box. The package comes complete with an air pump and various essential accessories, all conveniently organized within a robust flight case. This all-in-one solution makes the AM1600R an ideal choice for demanding, large-scale projects that require both flexibility and reliability in lighting design.

Specifications

Light Fixture
Item Type 1x LED Inflatable Light Panel
Included Light Modifier 2x Diffuser
Included Storage Case Yes
Photometrics Not Specified by Manufacturer
Colour Temperature 1800 to 10,000K
Colour Modes RGB, Daylight, Tungsten
Colour Accuracy Standard CRI 96
TLCI 95
Dimming Built-In Dimmer / DMX / RDM
Built-In Flash No
Preprogrammed Effects Yes
Umbrella Mount No
Front Accessory Mount Proprietary
Connectivity
Wireless Remote Control Type Wireless CRMX
Mobile App Compatible Yes: Android & iOS
Power & I/O
Power Source AC Power (Cable Included) *Requires Power Supply/Controller (Included)
Inputs/Outputs Light Fixture
1x Unspecified Power Input
Power Supply/Controller
1x RJ45 Network Input
1x USB-A Power Output (5 VDC at 1.5 A)
1x XLR 5-Pin DMX Input
1x XLR 5-Pin DMX Output
To Light Fixture: 1x Unspecified Power Output
1x Unspecified AC Power Input
Included Adapter / Cable Yes
Power Pass-Thru No
Power Consumption 1800 W
Mounting
Fixture Mounting Not Specified by Manufacturer
General
Display Yes
Environmental Resistance Dust/Water-Resistant (IP54)
Operating Conditions -4 to 113°F / -20 to 45°C
Dimensions 90.6 x 90.6" / 230 x 230 cm (Fixture)
14.6 x 10.6 x 8.7" / 37 x 27 x 22 cm (Power Supply/Controller)
Weight 26.5 lb / 12 kg (Fixture)
24.3 lb / 11 kg (Power Supply/Controller)

In The Box

  • Godox KNOWLED AM1600R RGB Inflatable LED Light Mat (8 x 8')
  • Light Body
  • Inflatable Butterfly Frame
  • Controller
  • Controller Mount Bracket
  • Air Pump
  • 2 x Diffuser Fabric
  • Pancake Lantern
  • Grid
  • Skirt
  • Soft Film
  • Repair Kit
  • Optical Accessories Kit
  • AC Power Cord
  • DC Power Cord
  • Flight Case

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Godox KNOWLED AM1600R RGB Inflatable LED Light Mat (8 x 8')
  • Manufacturer: Godox
  • Model: AM1600
  • SKU: AM1600R 88K
  • RM Product #: 123661
  • Colour Temperature: 1800 - 10,000K
