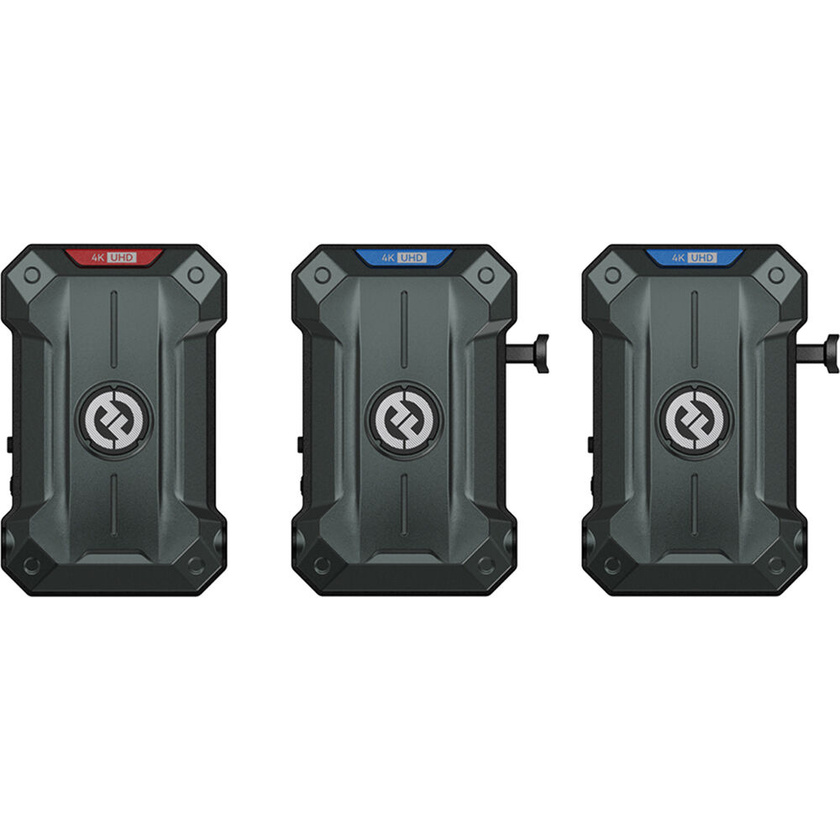

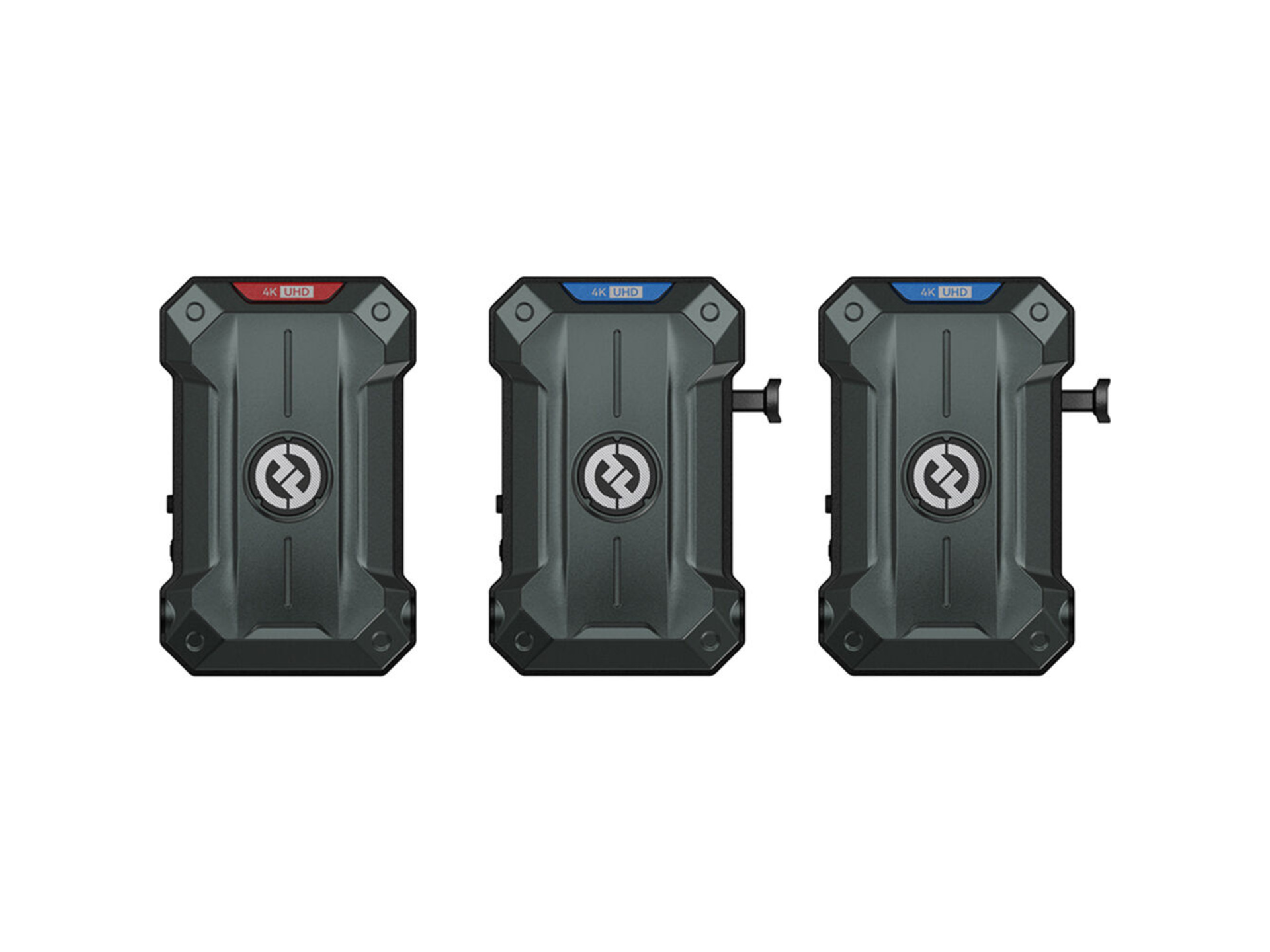

Hollyland Pyro Ultra 4K HDMI/SDI Wireless Video Dual Receiver Transmission System

Product #125445 | SKU HL-PYRO ULTRA 1TX 2RX | Hollyland
Pre-Order ETA to be confirmed what does this mean?
PRE-ORDER
Our Price $3,359
A deposit of $335.00 is required for this pre-order.
Pre-Order ETA to be confirmed what does this mean?
PRE-ORDER
- +

Email me when stock arrives

Shipping & Availability
ETA to be confirmed. Deliver to Auckland for $17 Change location
Click & Collect Availability
Wellington Out of stock. ETA to be confirmed
Click & Collect

Features

  • Wireless Transmitter & Dual-Receiver Set
  • Transmit UHD 4K60 Video up to 4900'
  • HDMI/SDI Inputs & Outputs
  • TWiFi Technology with Frequency Hopping
  • Broadcast & Focus Modes
  • Supports UVC & RTMP for Streaming

Description

Enhance your production setup by incorporating up to 4K60 wireless video transmission with the flexible Hollyland Pyro Ultra 4K HDMI/SDI Wireless Video Dual Receiver Transmission System. This comprehensive system arrives complete with a wireless transmitter, two wireless receivers, several antennas in varying sizes, a USB-C adapter, a D-Tap to DC cable, a DC power adapter, and a dual ball head to cold shoe mount adapter, ensuring you have everything needed for a robust wireless workflow.

Advanced Connectivity and Impressive Range

Both HDMI and SDI ports are featured on the devices, enabling seamless line-of-sight video transmission from distances of up to 4900 feet. The advanced TWiFi transmission technology combines multiple connections into a composite link, utilizing automatic frequency hopping to deliver outstanding clarity with an impressively low latency of just 20 ms.

Flexible Operating Modes and Workflow Integration

The Pyro Ultra supports additional operating modes, offering a range of capabilities to adapt to each production’s unique requirements. Whether you need enhanced stability or extended coverage, these modes ensure reliability and versatility.

Backwards Compatibility and Seamless Integration

Designed for compatibility, the Pyro Ultra effortlessly integrates with the entire Pyro family. This ensures it blends smoothly into your current wireless video workflow, expanding your production possibilities while protecting your existing investment.

Specifications

Inputs/Outputs
Antenna I/O Transmitter/Receiver: 4x RP-SMA Male
Video I/O Transmitter: 1x HDMI 2.0 Input
Transmitter: 1x HDMI 2.0 Loop Output
Transmitter: 1x BNC (3G-SDI) Input
Receiver: 1x HDMI 2.0 Output
Receiver: 1x BNC (3G-SDI) Output
Audio I/O No
Power I/O Transmitter/Receiver: 1x Barrel Input
Other I/O Transmitter/Receiver: 1x USB-C
Wireless
Wireless Range 4921.3' / 1500 m
Latency 20 ms
RF Power ≤ 23 dBm
RF Sensitivity -85 dBm
Format Support
Video Format HDMI
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
720p: 60/59.94/50
SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
Power
Input Power 6 to 16 VDC
Power Consumption Transmitter: 11 W
Transmitter: 14 W
Receiver: 7 W
Mounting
Tripod/Accessory Mounting 1/4"-20 Female
General
Dimensions Transmitter/Receiver: 4.9 x 3.1 x 1.4" / 124.5 x 80 x 34.9 mm
Weight Transmitter/Receiver: 11.3 oz / 320.00 g

In The Box

  • Hollyland Pyro Ultra 4K HDMI/SDI Wireless Video Dual Receiver Transmission System
  • Hollyland Pyro Ultra 4K HDMI/SDI Wireless Video Transmitter
  • 2 x Hollyland Pyro Ultra 4K HDMI/SDI Wireless Video Receiver
  • 4 x Short Antenna
  • 8 x Antenna
  • USB-C OTG Adapter
  • Dual Ball Head with Cold Shoe Mount
  • D-Tap to Locking DC Power Cable
  • DC Power Adapter (12V, 2A)

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Hollyland Pyro Ultra 4K HDMI/SDI Wireless Video Dual Receiver Transmission System
  • Manufacturer: Hollyland
  • Model: PYRO Ultra
  • SKU: HL-PYRO ULTRA 1TX 2RX
  • RM Product #: 125445
  • Configuration: Transmission System (2TX + 1RX)
