Hollyland Vcore Wireless Video Transmission System

Product #123489 | SKU VCORE | Hollyland
Usually ships in 4 - 6 weeks what does this mean?
SAVE $36
Sale Price $353
was $389.00
Usually ships in 4 - 6 weeks what does this mean?
YOU SAVE $36
- +
ON SALE in Sales & Promotions while stock lasts

Email me when stock arrives

Shipping & Availability
Usually ships in 4 - 6 weeks. Deliver to Auckland for $5.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 4 - 6 weeks
Click & Collect

Features

  • Video Transmitter for Camera to App
  • Direct HDMI Camera Input, USB-C to Phone
  • Transmit UHD 4K30 Video up to 350'
  • SD Card Records 1080p60 Using H.264
  • 5 GHz Signal to Pyro 5 RX/Phone/Tablets
  • Transmit to up to 4 Apps or 2 Receivers

Description

*Phone/Tablet not included

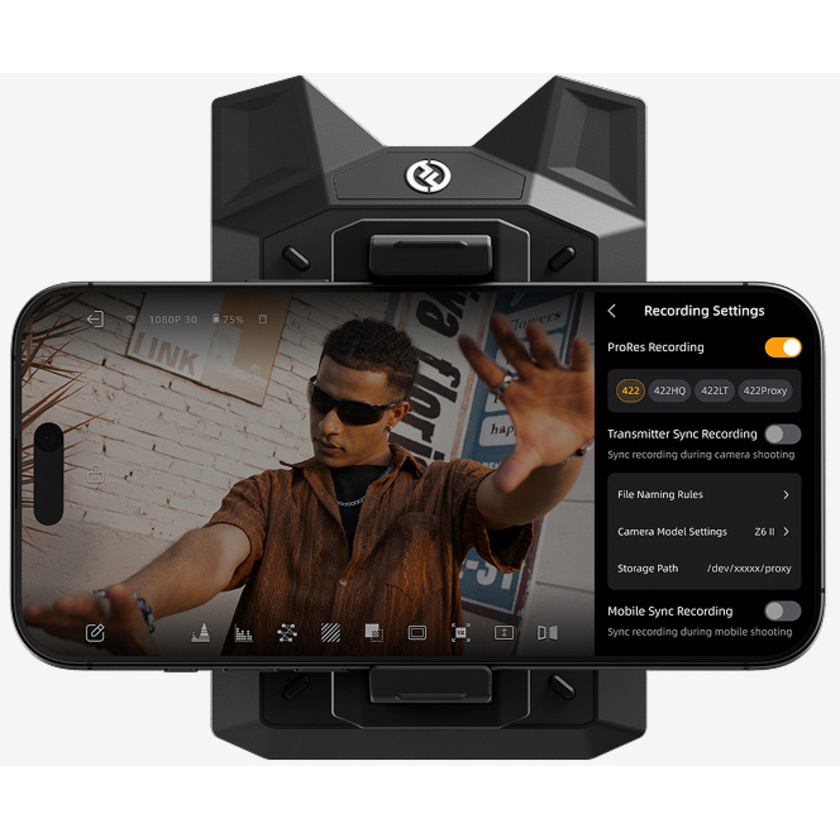

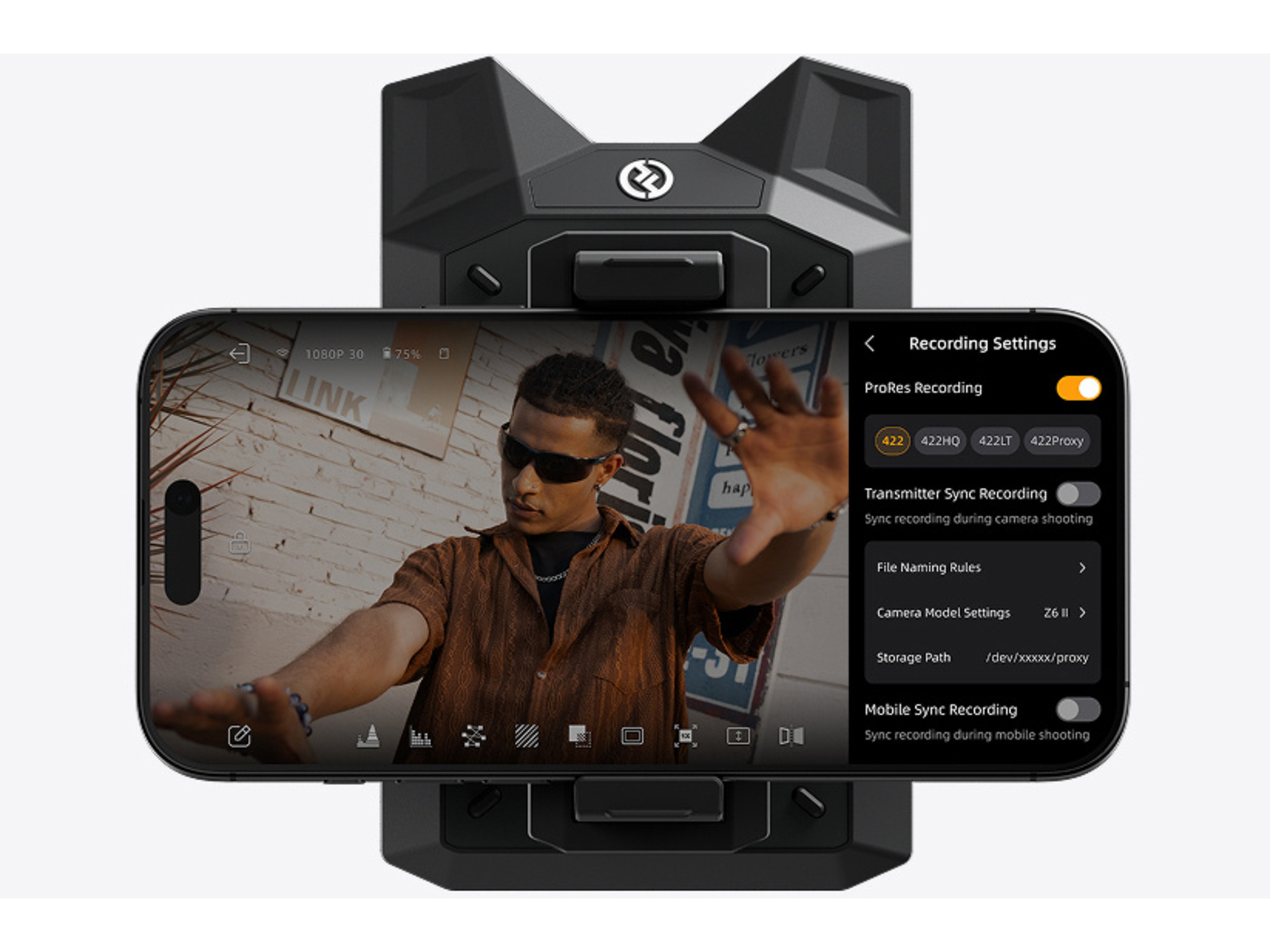

Enhance your production workflow with the compact and flexible Vcore Wireless Video Transmission System by Hollyland, designed to bring 4K30 wireless video monitoring and real-time live streaming to your setup. The Vcore transmitter attaches securely to your camera, allowing for effortless remote monitoring from up to four tablet or smartphone devices through the dedicated app, or via the optional Pyro wireless receiver and monitor.

Features
  • Versatile Connectivity: Supports both HDMI and USB-C camera inputs for broad compatibility.
  • Remote Monitoring: Enables wireless viewing on as many as four mobile devices, simplifying team collaboration on set.
  • Built-in Power: Comes with an integrated battery, ensuring portability and convenience during shoots.
  • Onboard Recording: Offers internal video recording directly to SD card for immediate content backup.
  • High-Quality Video Transmission: Delivers clear and stable 4K30 video footage, maintaining pristine image quality.
  • Flexible Recording Formats: Supports H.264 and ProRes recording options for maximum post-production flexibility.
  • App Control: Seamlessly integrates with the HollyView app for intuitive device management and control.

With the Hollyland Vcore system, wirelessly transmit and monitor professional-grade video footage, streamline your video production, and introduce new creative possibilities to any filming environment.

Specifications

Inputs/Outputs
Antenna I/O No
Video I/O 1x HDMI 1.4b Input
1x USB-C Output
Embedded Audio HDMI/USB
Audio I/O No
Power I/O 1x Barrel Input
1x USB-C Input
Media/Memory Card Slot Single Slot: SD (Unspecified Type) [Record/LUT/Firmware]
Encryption No
Wireless
Wireless Range 350' / 106.7 m (Line-of-Sight)
Channel Bandwidth 20 MHz
Frequency Range 5.15 to 5.85 GHz
Latency < 80 ms
RF Power 21.5 dBm
RF Sensitivity -93 dBm
Wi-Fi Yes
Bluetooth No
Mobile App Compatible Yes: Android & iOS
Cellular Support No
Format Support
Video Format HDMI
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
720p: 60/59.94/50
Wireless Video Compression Compressed
Timecode Support Yes
Power
Input Power 5 to 13 VDC
Battery Built-In Battery (5150 mAh)
Power Consumption 4.5 W
Mounting
Tripod/Accessory Mounting Bottom
1x 1/4"-20 Female
General
Status Display Yes
Operating Conditions 14 to 113°F / -10 to 45°C
Storage Conditions -40 to 140°F / -40 to 60°C
Dimensions 4.3 x 2.8 x 1.1" / 110 x 70 x 27.2 mm
Weight 7.8 oz / 220.00 g

In The Box

  • Hollyland Vcore Wireless Video Transmission System
  • USB-C to USB-C Cable
  • Magnetic Mount
  • Smartphone Holder
  • Cold Shoe Mount

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Hollyland Vcore Wireless Video Transmission System
  • Manufacturer: Hollyland
  • Model: VCORE
  • SKU: VCORE
  • RM Product #: 123489
