Kondor Blue Base Rig MKII for Blackmagic URSA Mini (Raven Black)

Product #125162 | SKU KB-URSAM2-BR-BK | Kondor Blue
Pre-Order ETA to be confirmed what does this mean?
PRE-ORDER
Our Price $2,459
A deposit of $240.00 is required for this pre-order.
Pre-Order ETA to be confirmed what does this mean?
PRE-ORDER
- +

Email me when stock arrives

Shipping & Availability
ETA to be confirmed. Deliver to Auckland for $12 Change location
Click & Collect Availability
Wellington Out of stock. ETA to be confirmed
Click & Collect

Features

  • Modular Cage with Top and Side Plates
  • Modular Top Hollywood Handle
  • 15mm LWS Baseplate with 15mm Rods
  • NATO Rails on Top, Side Shoe Mount
  • Adjustable Dragonfly Top Plate Rosettes
  • 1/4"-20 and 3/8"-16 Anti-Twist Threads

Description

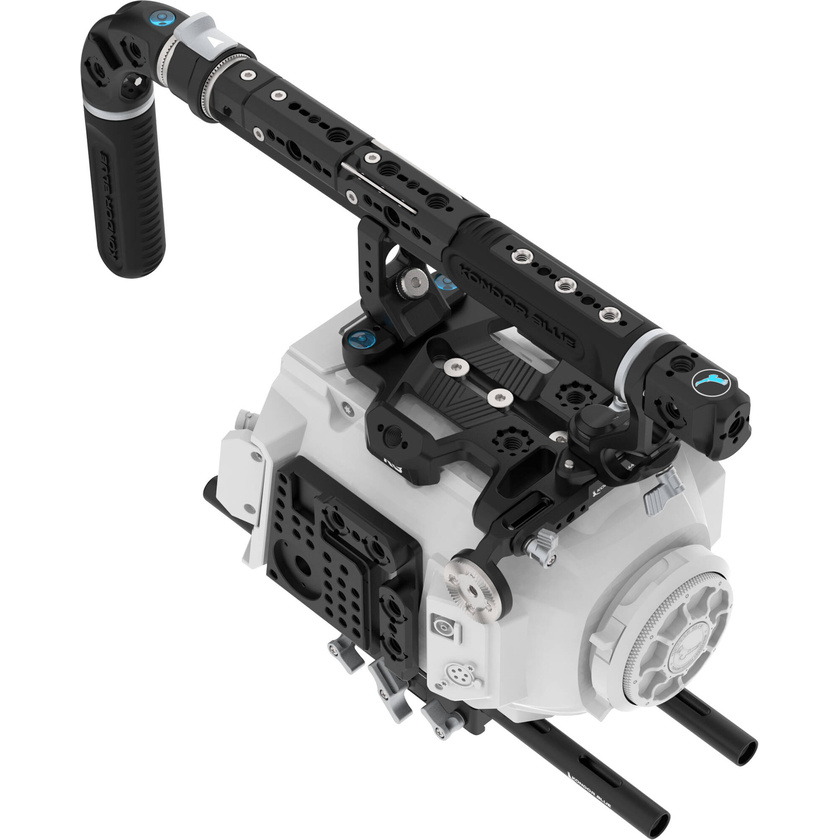

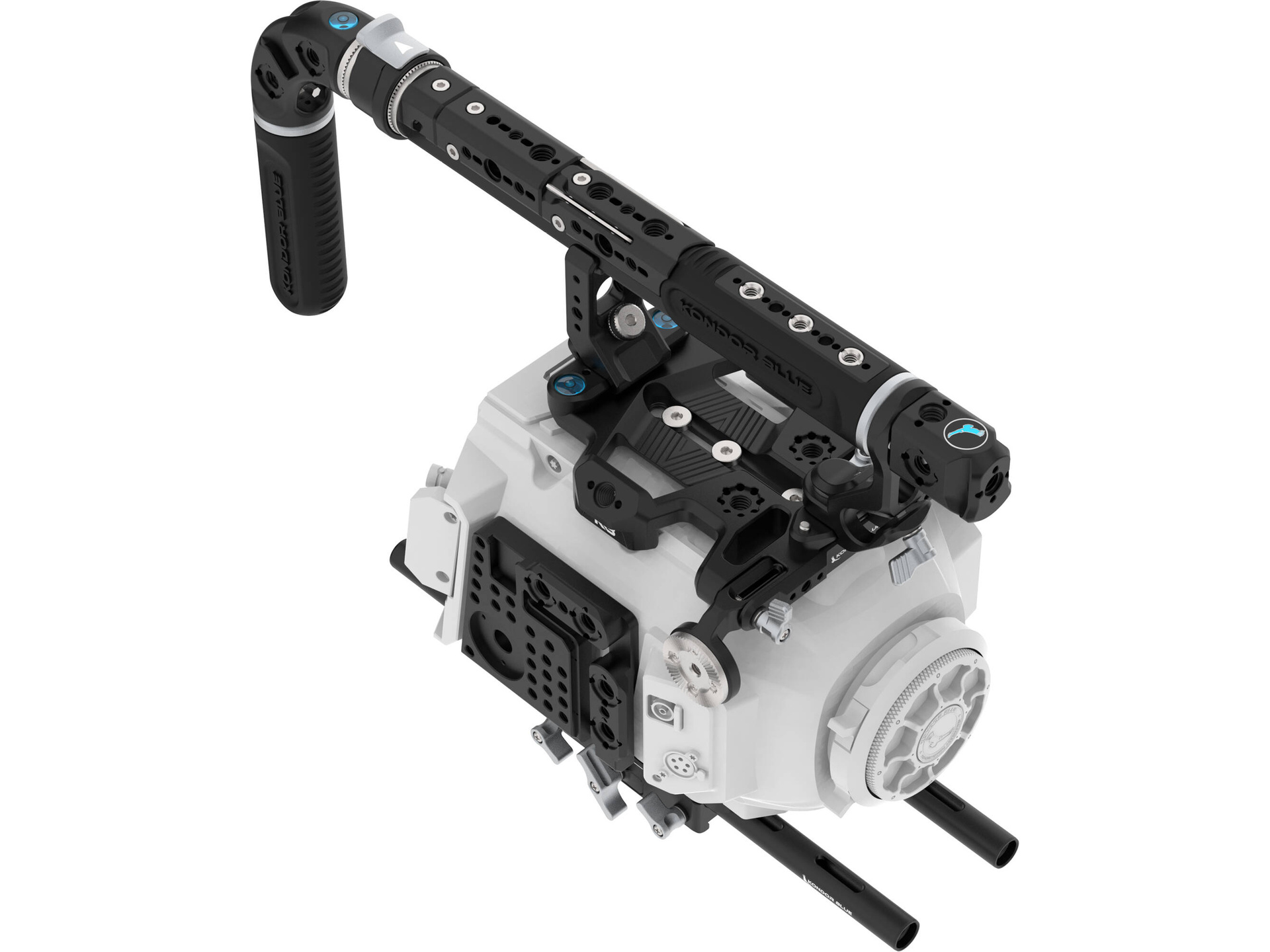

Enhance your Blackmagic Design URSA Mini 12K, 4.6K, or 4K cinema camera with comprehensive protection and an array of accessory options using the Kondor Blue Base Rig MKII for Blackmagic URSA Mini (Raven Black). Designed with a modular approach, this cage secures to the top and side of your camera, ensuring that all ports and controls remain fully accessible. Each component is capable of functioning independently, giving you the flexibility to configure your camera rig in the best way for your production needs.

The top plate comes equipped with multiple NATO rails, supporting the addition of an optional top handle like the Hollywood Handle or various side-mounted accessories. It also includes several 3/8"-16 anti-twist mounting threads, as well as “Dragonfly” rosette wings positioned toward the front. These rosette wings can be slid into different positions, enabling tailored placement of optional side handles in multiple directions. For added security and camera preservation, each plate is lined with rubber padding, ensuring a tight fit that resists vibration and prevents scratches.

Specifications

Support Type Cage
Grip Type No
Camera Compatibility Blackmagic URSA Mini
Mounting
Battery Plate Type No
Accessory Mounting Multiple&nbsp1/4"-20 Female Thread
Multiple&nbspAnti-Twist 1/4"-20 Female Thread
Multiple&nbspARRI Anti-Twist 3/8"-16 Female Thread
Camera Mounting 1/4"-20 Male Screw
Shoe Mounting Side Plate
1x Cold Shoe
Rosettes 3x ARRI Rosette w/ M6 Female Thread
Rail Mounting Top
4x NATO Rail
Side
2x NATO Rail
General
Dimensions 6.3 x 5.6 x 2" / 160 x 142.5 x 50 mm (Top Plate)
3.69 x 3.53 x 0.54" / 93.73 x 89.66 x 13.72 mm (Side Plate)
Weight 15 oz / 425 g (Top Plate)
5.5 oz / 156 g (Side Plate)

In The Box

  • Kondor Blue Camera Cage MKII for Blackmagic URSA Mini (Raven Black)
  • Kondor Blue Hollywood Handle Complete Kit (Raven Black)
  • 15mm LWS Baseplate
  • 2 x 15mm Rod

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Kondor Blue Base Rig MKII for Blackmagic URSA Mini (Raven Black)
  • Manufacturer: Kondor Blue
  • Model: KB-URSAM2-CO-BK
  • SKU: KB-URSAM2-BR-BK
  • RM Product #: 125162
  • Compatible With: Blackmagic URSA Mini
