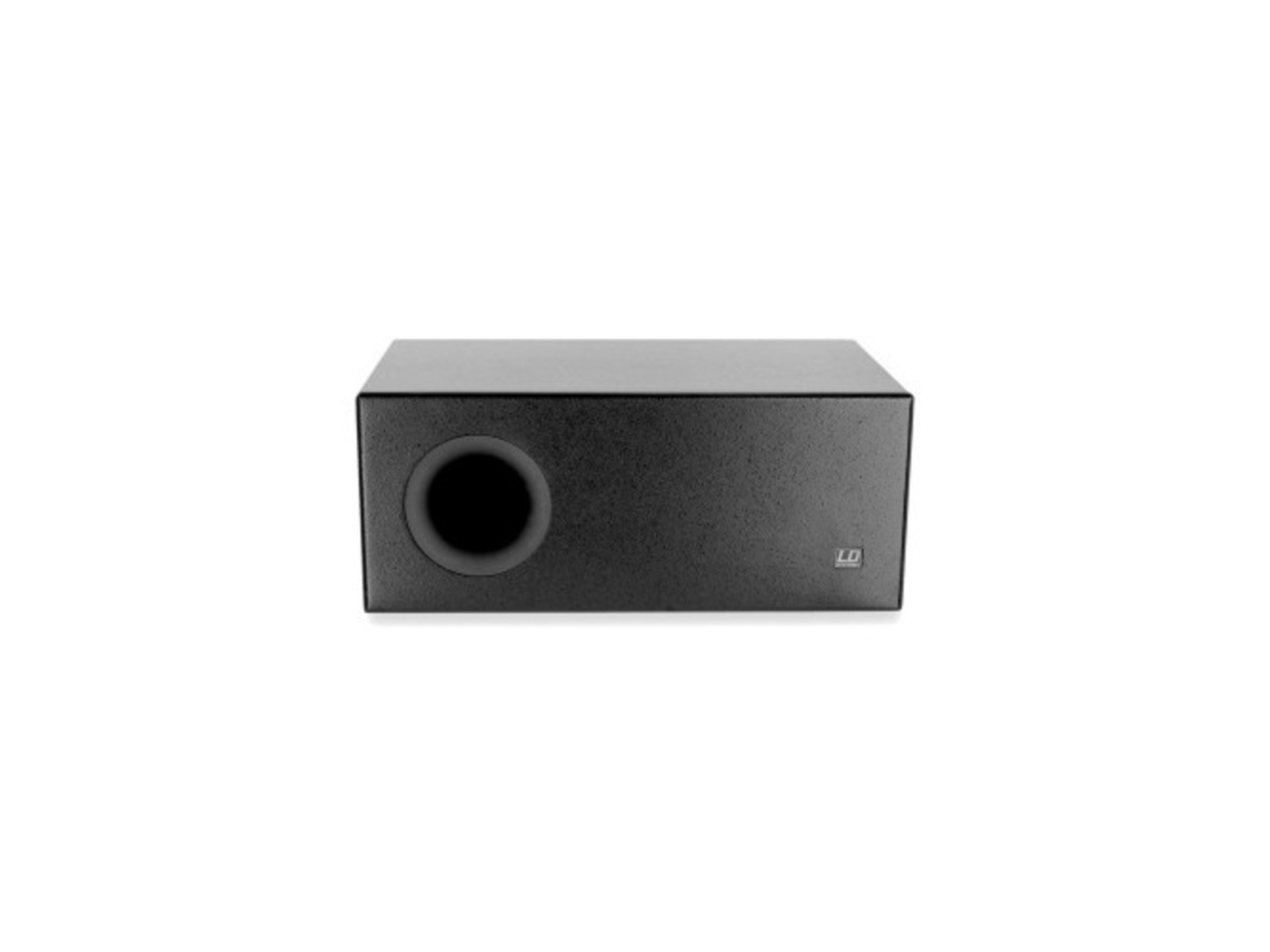

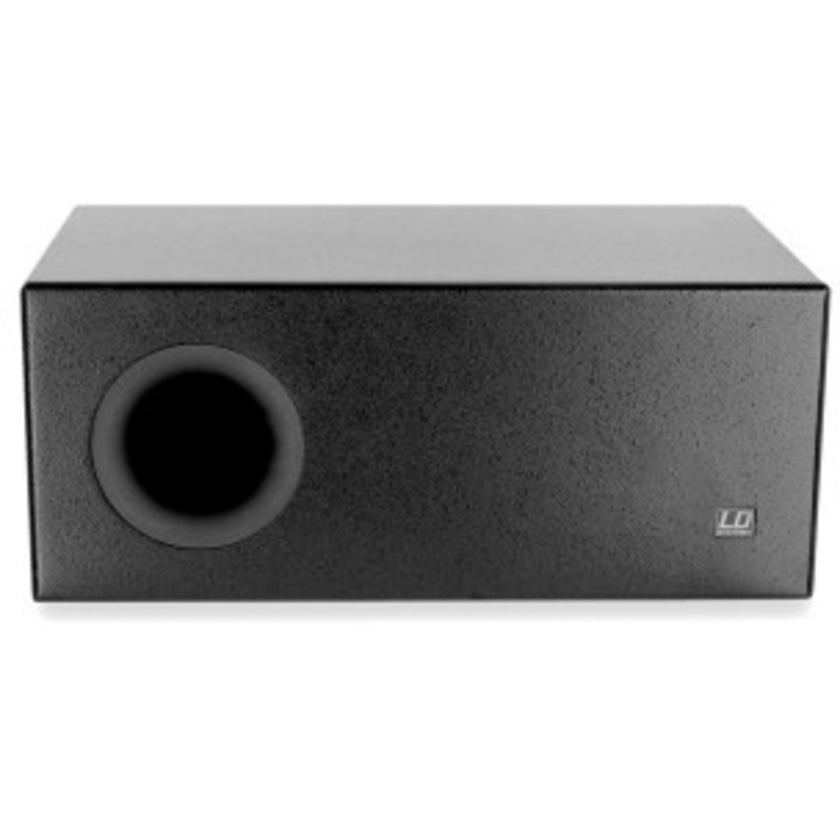

The LD Systems Sub 88A 2 x 8" Active Subwoofer features a 150 Watt (RMS) Mono-amplification unit offering great sound and dynamic characteristics. It is a perfect partner for the SAT62A active speaker or for the passive models SAT42/242/62 in combination with an external amplification unit such as the DJ200.
It can naturally be used with any other high/medium speaker if you wish to complete your sound with a deep and powerful bass fundament.
| Product type | PA subwoofer |
| Type | Powered |
| Low/mid Woofer dimensions | 2 x 8 " |
| Woofer dimensions (mm) | 2 x 203 mm |
| Woofer magnet | Ferrite |
| Woofer brand | Custom-made |
| Amplifier | Class A/B |
| System Power (RMS) | 150 W |
| Frequency response | 40 - 120 |
| SPL (1W/1m) | 92 dB |
| Max. SPL | 115 dB |
| Protection circuits | overload |
| Controls | Low-pass filter (70 - 140 Hz), Phase 180°, volume |
| Indicators | Limit, Power, Signal |
| Line inputs | 1 |
| Line input connectors | 6.3 mm jack, XLR |
| Power supply | transformer |
| Operating voltage | 220 V AC - 240 V AC, 50-60 Hz |
| Cabinet material | 15 mm MDF |
| Cabinet surface | texture paint |
| Cabinet colour | Black |
| Cabinet construction | Bandpass |
| Width | 600 mm |
| Height | 250 mm |
| Depth | 350 mm |
| Weight | 15 kg |
