The Laowa Aurogon FF 10-50x NA0.5 Super-Micro APO Lens covers full-frame sensors and can directly use on cameras. It features seamlessly interchangeable magnification tubes, offering 10X, 20X, 35X, and 50X magnification options. The adjustable numerical aperture (NA) of this microscope lens ranges from 0.5 to 0.1, the high NA providing room for exceptional brightness and minimal diffraction. The lens is designed with a fixed 20mm long working distance, ensuring both flexibility and convenience for the lighting setup. Aurogon delivers high performance with APO design and outstanding resolution. It is your ultimate companion for diving into the microscopic realm.

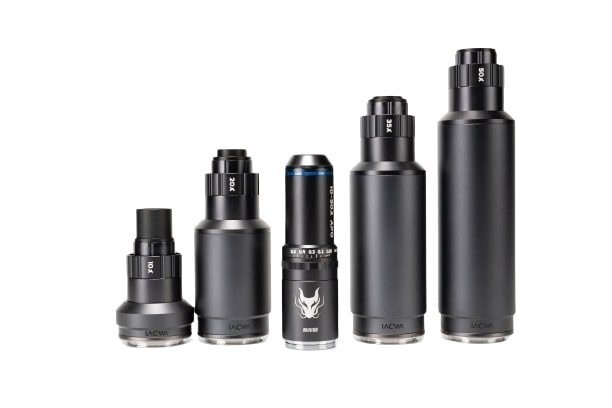

Laowa Aurogon FF 10-50x NA0.5 Super-Micro APO Lens (PL Mount)
In Stock with Supplier Usually ships in 2 - 4 weeks
Our Price
$2,869
In Stock with Supplier Usually ships in 2 - 4 weeks
Email me when stock arrives
Shipping & Availability
Usually ships in 2 - 4 weeks.
Deliver to
Auckland
for $32
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
2 - 4 weeks
Click & Collect
Features
- Full-frame format compatibility
- 10-50x magnification
- Switchable tubes
- 20mm long working distance
- Adjustable high numerical aperture
Description
Specifications
| Magnification | 10x / 20x / 30x / 50x |
| Adjustable Numerical Aperture (NA) | 0.5 / 0.45 / 0.4 / 0.35 / 0.30 / 0.25 / 0.2 / 0.15 |
| Working Distance (mm) | 20 |
| Maximum Objective Diameter (mm) | 50 |
| Length of the Objective Lens (mm) | 167 |
| Weight of Objective Lens (g) | 390 |
| Aperture Blades | 9 |
| Wavelength Range (nm) | 435-656 |
| Objective Lens + Tube Lens Focal Length (mm) | 10x - 18.8 / 20x - 10.3 / 30x - 6.85 / 50x - 5.56 |
| Special Tube Lens for Laowa Model | 10x / 20x / 30x / 50x Magnification Tube |
| Length of Tube Lens (mm) (Excluded Cover) | 10x - 112 / 20x - 163 / 30x - 210 / 50x - 253 |
| Weight of Tube Lens (g). | 10x - 377 / 20x - 444 / 30x - 530 / 50x - 609 |
| Max Distortion | 10x - 0.60% / 20x - 0.80% / 30x - 0.40% / 50x - 0.40% |
| Image Field Diameter | Full Frame (24mm×36mm) |
| Conjugate Distance (mm) | 10x - 299.4 / 20x - 370 / 30x - 420.2 / 50x - 465.1 |
In The Box
- 1x Laowa Aurogon FF 10-50x NA0.5 Supermicro APO Lens
- 1x 10x Magnification Tube
- 1x 20x Magnification Tube
- 1x 35x Magnification Tube
- 1x 50x Magnification Tube
- 1x Hard Case
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Laowa Aurogon FF 10-50x NA0.5 Super-Micro APO Lens (PL Mount)
- Manufacturer: Laowa
- Model: VEAU1050PL
- SKU: VEAU1050PL
- RM Product #: 108691
- Lens Type: Macro
- Maximum Aperture: f/0.5
- Lens Mount: Arri PL
- Zoom or Prime Lens: Prime
- Warranty: 1 year manufacturer warranty
