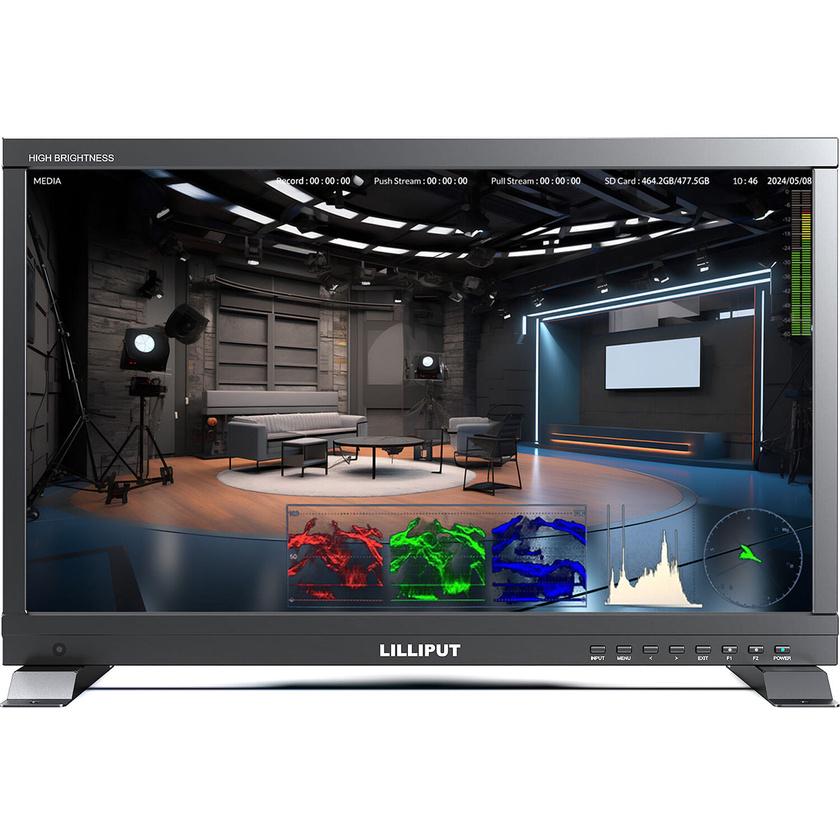

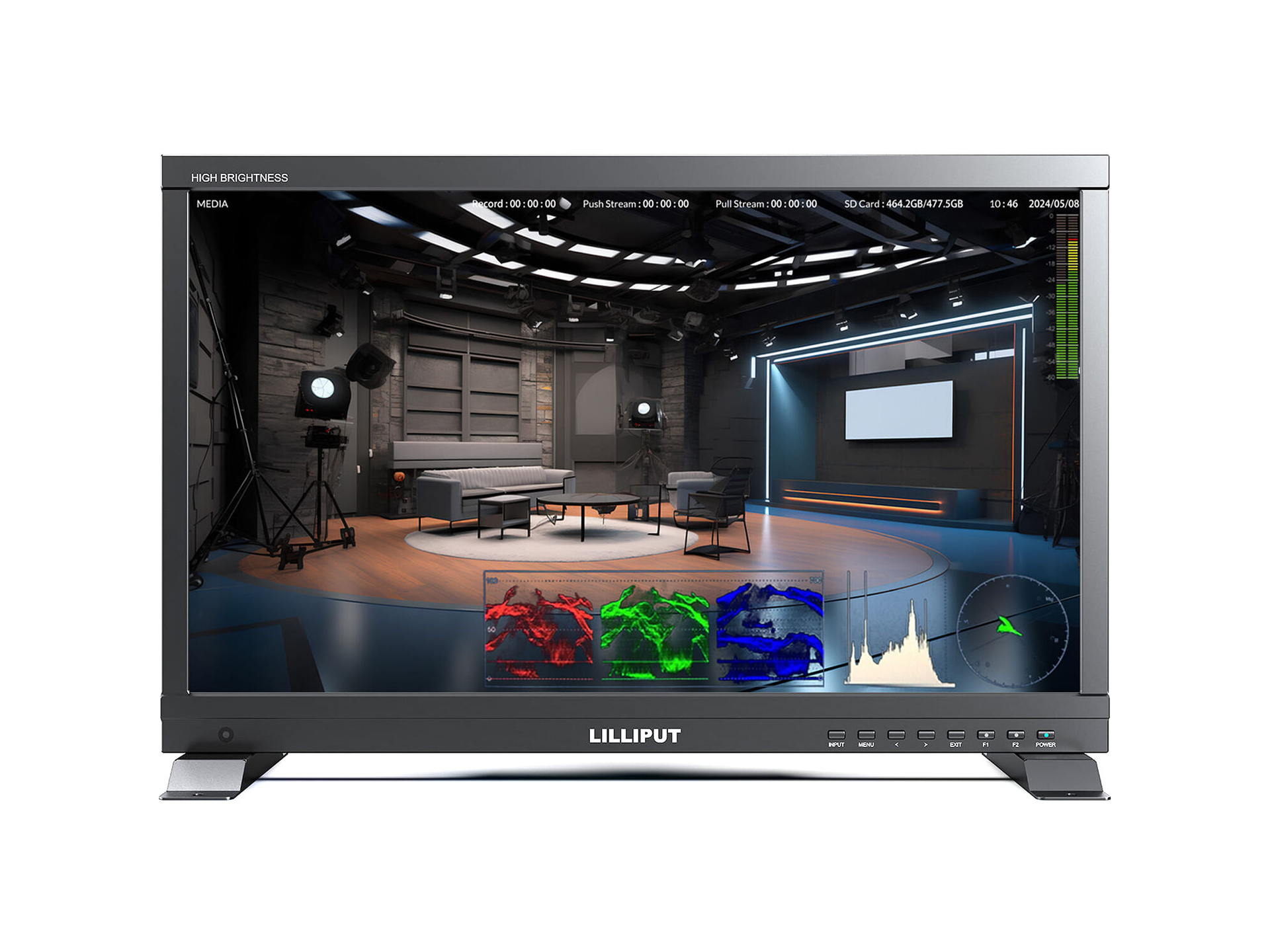

Lilliput PVM220S-E 21.5" Live Stream Recording Monitor with Carry Case (V-Mount)

Product #117291 | SKU PVM220S-E-VBP-CC | Lilliput
In Stock with Supplier Usually ships in 2 - 3 weeks what does this mean?
Our Price $1,719
In Stock with Supplier Usually ships in 2 - 3 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 weeks. Deliver to Auckland for $17 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 3 weeks
Click & Collect

Features

  • Live Streaming & Recording Monitor
  • 1000 cd/m² Brightness, 1000:1 Contrast
  • 3G-SDI & HDMI 2.0 Connectivity
  • Records on SD Cards up to 512GB
  • 3D LUT & HDR Support
  • Full-Screen Waveform & Vectorscope

Description

The Lilliput PVM220S-E 21.5" Live Stream Recording Monitor is a highly-capable monitor specifically designed for live streaming and recording purposes. With its impressive brightness of 1000 cd/m² and a contrast ratio of 1000:1, this monitor ensures optimal visibility and clarity. It offers a wide range of input options, including 3G-SDI and HDMI 2.0, making it compatible with various devices for high-quality monitoring during broadcasts. With the ability to record up to 1080p HDMI or SDI video signals directly onto an SD card with a maximum capacity of 512GB, this monitor provides convenient and efficient recording capabilities. It is equipped with advanced features such as precise waveform and vector functions, support for 3D LUT and HDR, and full-screen waveform and vectorscope functions, making it ideal for accurate color grading and detailed picture analysis. The PVM220S-H can be powered either by the included 15 VDC, 4A power adapter or with an integrated V-mount battery plate. To further enhance its utility, it comes with a sun hood for glare reduction and a durable carry case for easy storage and transportation.

Specifications

Display
Brightness 1000 cd/m²
Contrast Ratio 1000:1
Resolution 1920 x 1080
Technology Calibration to Rec.709 with optional calibration unit
Viewing Angle 178°/178°(H/V)
HDR ST2084 300/1000/10000/HLG
LUT Support 3D LUT (.cube format)
Screen Size 21.5"
Supported Log Formats SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User…
Supported Formats
HDMI Formats Supported 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
Monitor Specification
Video Inputs SDI 1×3G, 1X HDMI 2.0
Video Outputs SDI 1×3G, 1X HDMI 2.0, LAN - 1×1000M (PoE is optional)
Audio In / Out (48 kHz PCM Audio)
Built In Speakers 1x
Ear Jack 3.5mm
HDMI Audio Frequency 8ch 24-bit
SDI Audio Frequency 2ch 48kHz 24-bit
Recording
Video Resolution 1920×1080 / 1280×720 / 720×480
Frame Rates 60 / 50 / 30 / 25 / 24
Codecs Supported H.264
Audio Supported Rates 44.1kHz / 48kHz
Storage (Recording) SD Card - supports up to 512GB
Split Recording File Intervals 1min / 5 mins / 10 mins / 20 mins / 30 mins / 60mins
Size
Dimensions 508mm × 321mm × 47mm
Weight 4.75kg
Power
Compatible Batteries V-Lock or Anton Bauer Mount (Optional)
Input Voltage DC 9-24V, Battery 14.8V Nominal
Power Consumption ≤53W (DC 15V / Optional PoE PD function, supports IEEE802.3 bt protocol)
Environment
Operating Temperature 0℃~50℃
Storage Temperature -20℃~60℃

In The Box

  • Lilliput PVM220S-E 21.5" Live Stream Recording Monitor with Carry Case (V-Mount)
  • 15 VDC, 4A Power Adapter
  • Base Bracket
  • Carry Case
  • Sun Hood

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Lilliput PVM220S-E 21.5" Live Stream Recording Monitor with Carry Case (V-Mount)
  • Manufacturer: Lilliput
  • Model: PVM220S-E-VBP-CC
  • SKU: PVM220S-E-VBP-CC
  • RM Product #: 117291
  • Screen Size: 21.5"
  • Connection: HDMI
  • Screen Resolution: 1920 x 1080
  • Warranty: All LILLIPUT brand products come with a one year manufacturer warranty.
