Logitech Rally Plus Ultra-HD ConferenceCam System
Features
- Full Conference System
- Studio-quality video
- Advanced modular audio
- Sleek industrial design
- Smart cabling and content sharing
Related Products
Description
The Logitech Rally Plus Ultra-HD ConferenceCam System delivers studio-quality video, unmatched voice clarity, and RightSense automation for better meetings with video conferencing applications that work with USB devices, including Google Hangouts Meet, Microsoft Skype® for Business, Microsoft Teams, and Zoom. With modular audio, thoughtful cable management and premium finishes, Rally integrates beautifully into medium and larger rooms.
This Rally Plus version includes one extra Rally Speaker and one extra Rally Mic Pod than the standard version.
Key Features:
STUDIO-QUALITY VIDEO
With an Ultra-HD imaging system, Rally delivers brilliantly sharp video, outstanding color, and exceptional optical accuracy at resolutions up to 4K. Logitech RightLight™ technology optimizes light balance to emphasize faces and render natural-looking skin tones, even in dim or backlit conditions
ADVANCED MODULAR AUDIO
Crystal-clear audio is essential for world-class video conferencing, and Rally excels in delivering sound that's natural, crisp, and highly intelligible. Logitech RightSound™ enhances voice clarity by suppressing background noise, auto-leveling voices, and focusing on active speakers. Exquisitely sensitive mic pods ensure that everyone in the meeting can be clearly heard while stand-alone speakers fill larger rooms with rich, life-like sound.
SLEEK INDUSTRIAL DESIGN
Every component in the Rally system features premium industrial design suitable for any professional setting. Even as Rally helps everyone look and sound great during video meetings, each part of the system looks great in its own right. The premium PTZ camera at the core of the system is elegantly finished in matte black with slate gray metal trim, complemented by sleekly designed audio components and accessories that look great in any room.
ENHANCED USER EXPERIENCE
Logitech RightSense is a suite of technologies built into Rally that automate a better user experience. RightSight™ perfectly auto-frames participants no matter their distance from the lens. RightLight prioritizes faces over environment to render natural-looking skin tones while RightSound enhances vocal clarity by suppressing background noise, auto-leveling voices, and focusing on active speakers to support better meetings —automatically!
SMART CABLING AND CONTENT SHARING
With a Display Hub and Table Hub to keep cables neat and organized, Rally components and the meeting computer remain securely out of sight. Connected by a single CAT6A cable, both hubs feature a full complement of connections so you can locate the meeting computer near the display or at the table. An HDMI input on the Table Hub eliminates the need for extra-cost cable extenders and makes wired content sharing easy.
Specifications
DIMENSIONS | |
Rally Camera | |
Height x Width x Depth: | 182.5 mm x 152 mm x 152 mm |

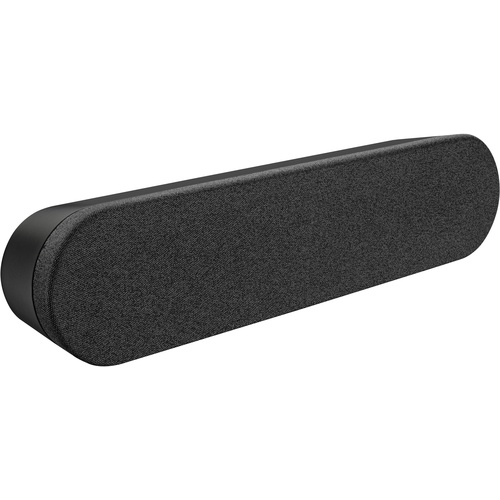

Rally Speaker | |
Height x Width x Depth: | 103 mm x 449 mm x 80 mm |
Rally Mic Pod | |
Height x Width x Depth: | 21 mm x 102 mm x 102 mm |
Rally Display Hub | |
Height x Width x Depth: | 40 mm x 206 mm x 179 mm |
Rally Table Hub | |
Height x Width x Depth: | 40 mm x 176 mm x 138 mm |
TECHNICAL SPECIFICATIONS | |
RALLY CAMERA | |
Ultra-HD imaging system supports: | 4 K, 1440 p, 1080 p, 900 p, 720 p, and SD at 30 fps 1080 p, 720 p at 30 fps and 60 fps Smooth motorized pan, tilt and zoom |
Pan: | ±90° |
Tilt: | +50° / -90° 15x HD zoom |
Field of View: | Diagonal: 90° Horizontal: 82.1° Vertical: 52.2 |
RALLY MIC POD | |
Pickup range: | 4.5 m diameter |
Frequency response: | 90 Hz – 16 kHz |
Sensitivity: | >-27 dB +/-1 dB @ 1 Pa |
Microphone | data rate: 48 kHz |
Recommended # of participants: | Rally (one Mic Pod): 10 |
Additional participants per Mic Pod: | 6 |
Recommended participants for Rally with 7 Mic Pods: | 46 |
RALLY SPEAKER | |
Speaker volume | 95 dB SPL @1 W, 100 dB SPL @7.5 W, both +/-2 dB at ½ meter |
Sensitivity: | 95+/-2 dB SPL at ½ meter |
Distortion: | 200 Hz–300 Hz < 2.5%, 300 Hz–10 kHz < 1%@7.5 W |
Speaker sampling rate: | 48 kHz |
RALLY TABLE HUB | |
Active speaker detection: | analyzes audio from up to 7 Mic Pods and 56 beams every 8ms |
Connections | 12 Pin connector for Rally Mic Pod HDMI Type A passthrough to Display Hub (x2) USB Type C USB Type A (reserved for future capability) USB Type B (connects to meeting room computer) RJ45 (reserved for future capability) |
RALLY DISPLAY HUB | |
Connections: | HDMI Type A (x2) (connects to displays) USB C (connects to Rally Camera) USB Type B (connects to meeting room computer) RJ45 (connects to Table Hub) Mini XLR (x2) |
In The Box
- Rally Camera
- Rally Display Hub
- Rally Table Hub
- Rally Speaker (x2)
- Rally Mic Pod (x2)
- Remote control
- USB Type C to USB Type C
- USB Type A to USB Type B
- CAT6A Ethernet cable
- HDMI Type A (x2)
- A/C cables (x2)
- Power Supplies (x2)
- Documentation
Reviews
(no ratings yet)Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Logitech Rally Plus Ultra-HD ConferenceCam System
- Manufacturer: Logitech
- Model: 960-001274
- SKU: 960-001274
- RM Product #: 75712
