Manfrotto FF3043 Pro Studio Rail Top System 43
Product #19547 | SKU FF3043
Special Order Usually ships in 8 - 12 weeks
0.0 (no ratings yet) Thanks for your rating!


Manfrotto FF3043 Pro Studio Rail Top System 43

Product #19547 | SKU FF3043
Special Order Usually ships in 8 - 12 weeks


Product Features
  • For large sized studios
  • Precise positioning of lights
  • Eliminate clutter of light stands
Customer Reviews
0.0 (no ratings yet) Thanks for your rating!
Email me when stock arrives
Product Details
  • Product: #19547
  • SKU: FF3043
Our Price $4,449.00

Delivery - $32.00*
8 - 12 weeks
Pickup AUCKLAND
8 - 12 weeks
Pickup WELLINGTON
8 - 12 weeks
*estimated shipping to Auckland

Related Products

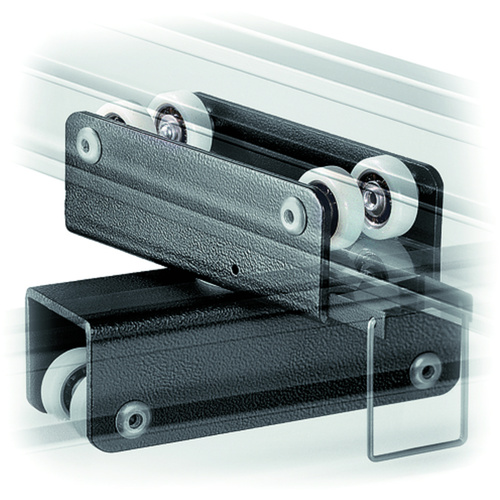

Manfrotto FF3236 Double Carriage with Single Brake Manfrotto FF3236 Double Carriage with Single Brake

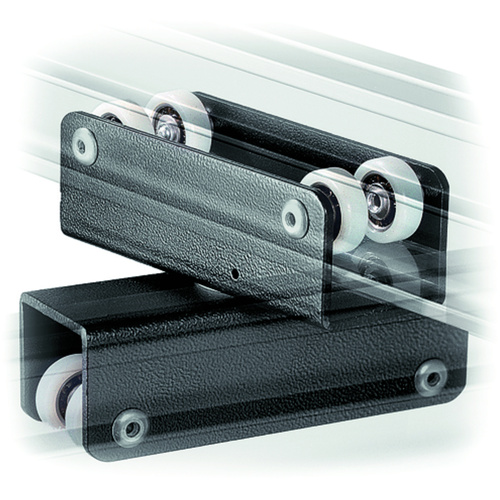

Manfrotto FF3232 Double Carriage Manfrotto FF3232 Double Carriage
Manfrotto FF3230 Single Carriage with 5/8" Spigot Manfrotto FF3230 Single Carriage with 5/8" Spigot
Manfrotto FF3210 Mounting Bracket for Ceiling Fixture Manfrotto FF3210 Mounting Bracket for Ceiling Fixture
Manfrotto FF3512N86 Pantograph with Wire Cable Manfrotto FF3512N86 Pantograph with Wire Cable

Overview

The Pro Studio Rail System is a modular overhead lighting suspension system which can be expanded or modified to your requirements. It provides precise positioning of lights with ease and speed, eliminating the clutter of light stands and power cables on the floor. The systems utilise a combination of rails, carriages, telescopic posts, and manual spring/cable assisted or motorised pantographs.

This is an 3 Pantograph System, for a large-size studio.

Key Features

  • Aluminium rails in this kit are 3 m and 4 m. This kit features 2 stationary, and 2 moving rails.
  • The Pantograph supports a load of up to 26lbs suspended from 46 cm to 2 m using only the friction device, while loads up to a maximum of 18 kg require the use of the optional springs. The pantograph can be adjusted to keep suspended loads from 0.9 kg to 4.5 kg perfectly balanced. The coloured ring can adjust the pantograph's friction; this will ensure that the load remains stable when set in position, but that it will move smoothly up and down when necessary. It is advisable to use springs to aid raising the pantograph.
  • Each pantograph extends from 46 cm to 2 m.
  • Nylon wheels with metal ball bearings ensure safe operation with loads of up to 18 kg.
  • Extruded aluminium rails enable efficient utilisation of studio perimeter walls and corners for back lighting, drapes, and background paper.
  • All components are black, to eliminate unwanted reflections.
  • Accessories may be ordered separately, to augment and customise the system to your specific requirements.

Note: Sliding rails cannot be joined. To connect two fixed rails use code FF3208. You must always support the junction of two rails with a ceiling attachment placed on the junction itself.

Note: Moving rails longer than 3 m must be supported with more than two fixed rails. The maximum distance between any of these fixed rails is 2 m.

Specifications

Dimensions
2 Rails - 9' 10" (3 M) each
2 Rails - 13' 3" (4 M) each
Kit Weight
Approx 36 kg

In The Box

  • 2 x 9' 10" Rails (FF6003B)
  • 2 x 12' 3" Rails (FF6004B)
  • 3 x Top 2 Pantograph (FF3512N86)
  • 2 x Double sliding carriages (FF3232)
  • 2 x Double sliding carriages with single brakes (3236)
  • 3 x Wheeled sliding carriages with 5/8" spigots (FF3230)
  • 6 x Mounting brackets (FF3210)
  • 3 x Sets of 4 End stops (FF3207)
  • 3 x Safety cables (FF3276)
  • 1 Year Manufacturer's Warranty
