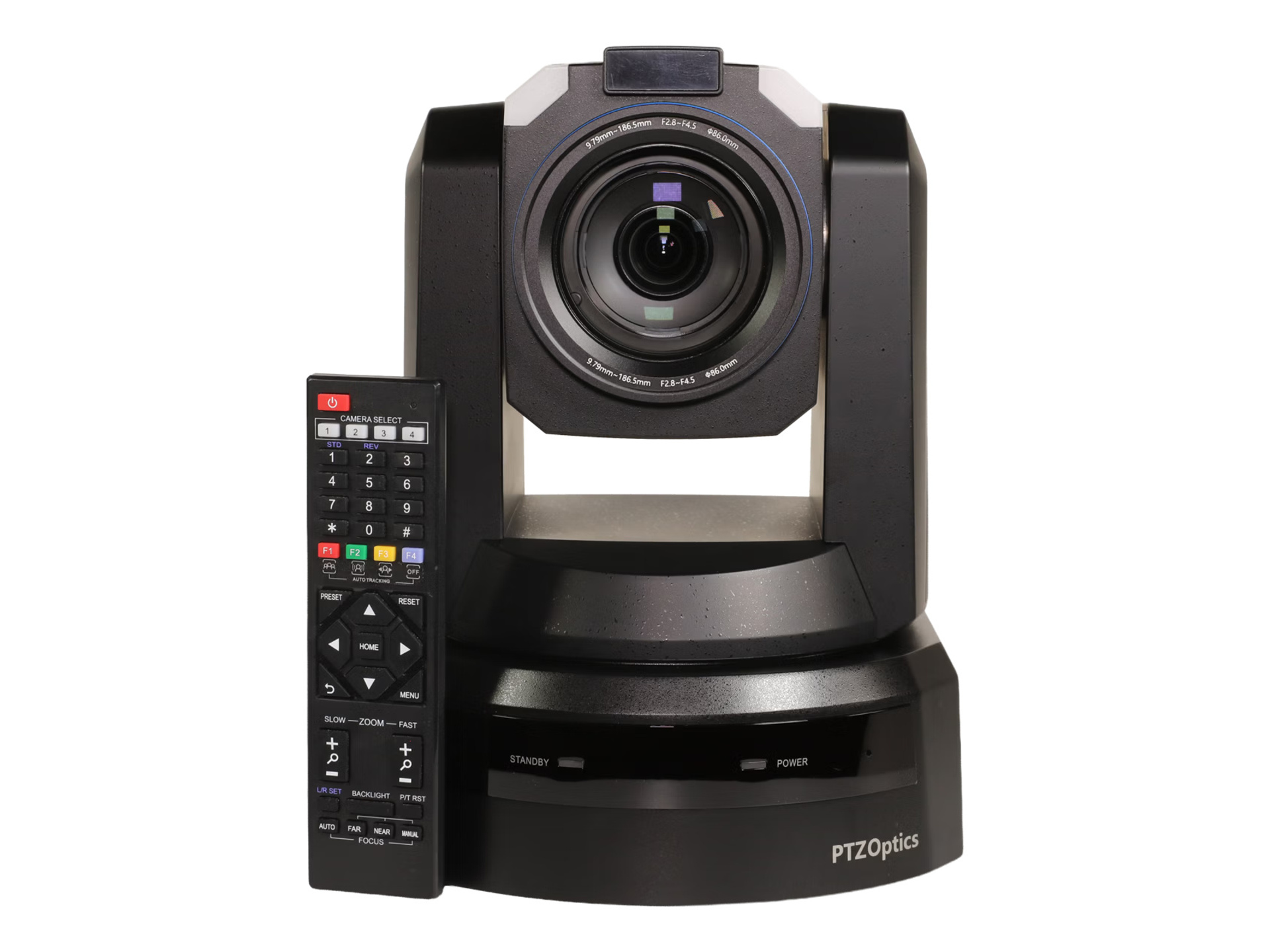

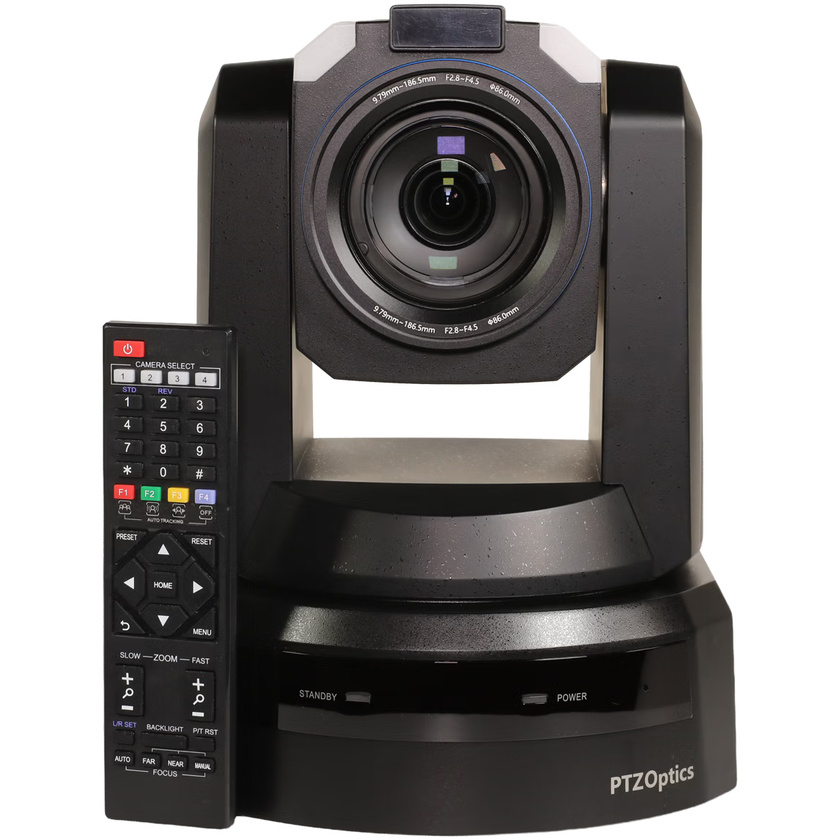

PTZOptics Rise 4K Broadcast Camera

Product #127301 | SKU PT20X-RISE-4K-BK | PTZOptics
Pre-Order ETA to be confirmed what does this mean?
PRE-ORDER
Our Price $19,249
A deposit of $1,925.00 is required for this pre-order.
Pre-Order ETA to be confirmed what does this mean?
PRE-ORDER
- +

Email me when stock arrives

Shipping & Availability
ETA to be confirmed. Deliver to Auckland for $17 Change location
Click & Collect Availability
Wellington Out of stock. ETA to be confirmed
Click & Collect

Features

  • 2.54 cm, 50 MP sensor
  • Up to 4K at 60 fps
  • 20× optical zoom, fast autofocus
  • 12G-SDI, 3G-SDI, HDMI connectivity
  • Native NDI® support included
  • Genlock, timecode, Horizon Web UI

Description

The PTZOptics Rise 4K Broadcast Camera brings broadcast-grade imaging, professional connectivity and intelligent camera control together in an entirely new PTZOptics platform. Its large 1-inch sensor captures exceptional detail and color in 4K at 60 fps, while 20X optical zoom and phase-detection autofocus deliver precise, reliable coverage across studios and large production environments. With 12G-SDI, NDI®, genlock, timecode and Horizon control included standard, Rise integrates seamlessly into modern broadcast and IP production workflows. It is designed for broadcasters, sports productions, live events, studios and organizations ready to elevate their video quality and production capabilities.

Exceptional Broadcast-Quality Imaging

Capture vivid color, outstanding detail and improved low-light performance with a large 1-inch sensor designed for demanding professional productions.

Precision Coverage at Any Distance

Frame wide scenes, close-ups and everything in between with powerful 20X optical zoom and responsive phase-detection autofocus that keeps subjects sharp.

Built for Professional Workflows

Integrate Rise into established broadcast, baseband and IP environments with 12G-SDI, 3G-SDI, HDMI, NDI®, genlock and timecode connectivity.

Intelligent Control Made Simple

Horizon comes standard, providing intuitive camera control, advanced image adjustment and intelligent automation through a streamlined browser-based interface.

Specifications

Image Sensor 1-inch, 50MP CMOS sensor
Maximum Resolution 4K Ultra HD at up to 60 fps
Optical Zoom 20x
Horizontal Field of View Approximately 70° at wideset setting
Autofocus Phase-detect autofocus
Image Stabilization Optical image stabilization
Exposure Control Built-in three-stage ND filter
Pan-and-tilt System Precision brushless DC motors
Primary Video Output 12G SDI supporting 4K60
Additional Video Outputs 3G-SDI, HDMI and USB 3.0
IP Video and Streaming NDI, HX, RTMP, RTSP, and SFP+
Fiber Connectivity 12G-compatible SFP+
Production Synchronization Timecode and genlock
Camera-tracking Data FreeD support
Audio Balanced XLR with 48V phantom power
Recording Onboard TF card recording
Tally Front and rear tally lights
Intelligent Features AI auto-tracking, auto-framing, intelligent presets, and autom
Standard Camera Interface Horizon Web
Horizon Access Browser-based access over the same local network

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: PTZOptics Rise 4K Broadcast Camera
  • Manufacturer: PTZOptics
  • Model: PT20X-RISE-4K-BK
  • SKU: PT20X-RISE-4K-BK
  • RM Product #: 127301
  • Resolution: 3840 x 2160
  • Optical Zoom: 20x
  • Warranty: 5 Year Manufacturer warranty
