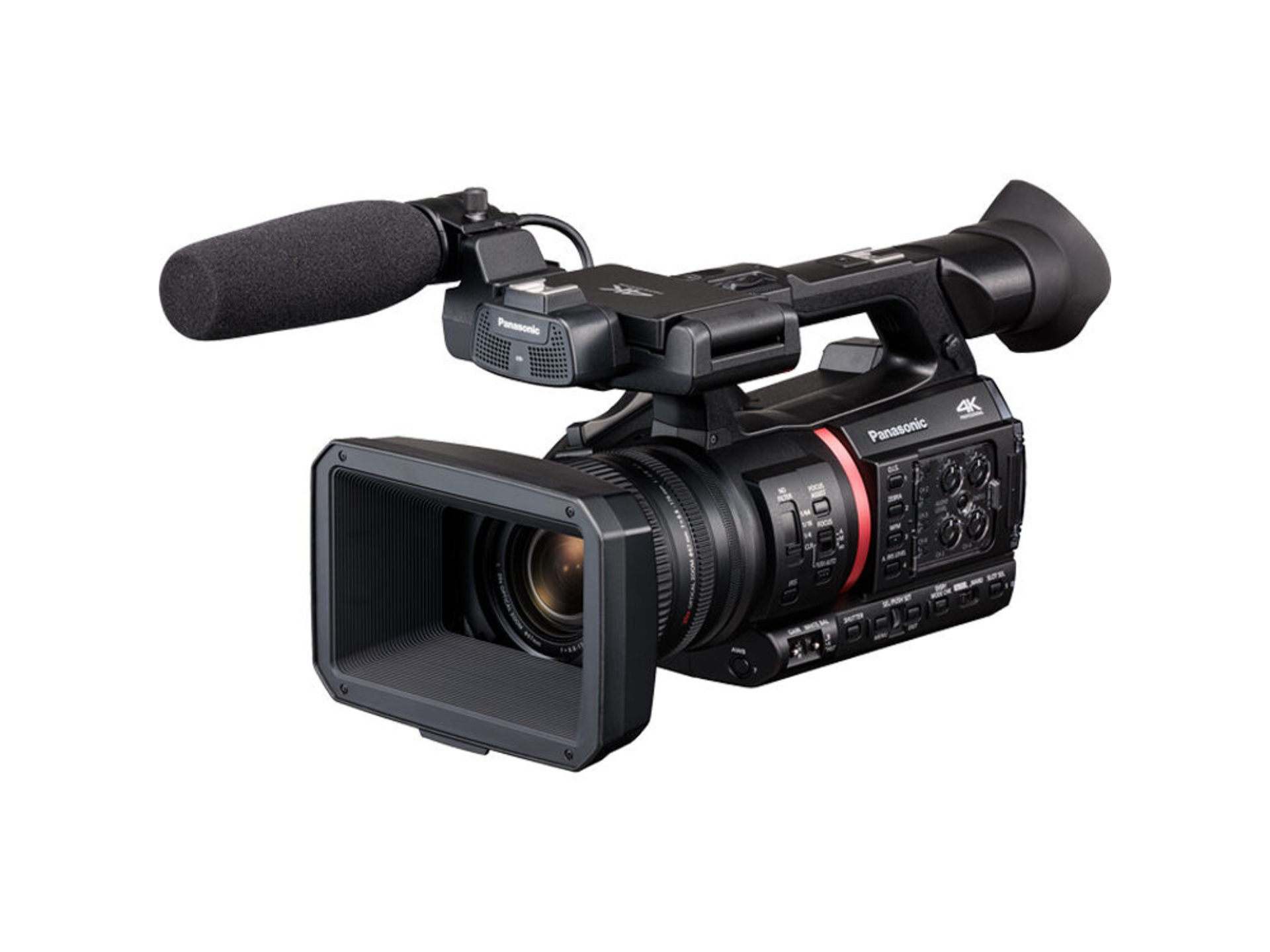

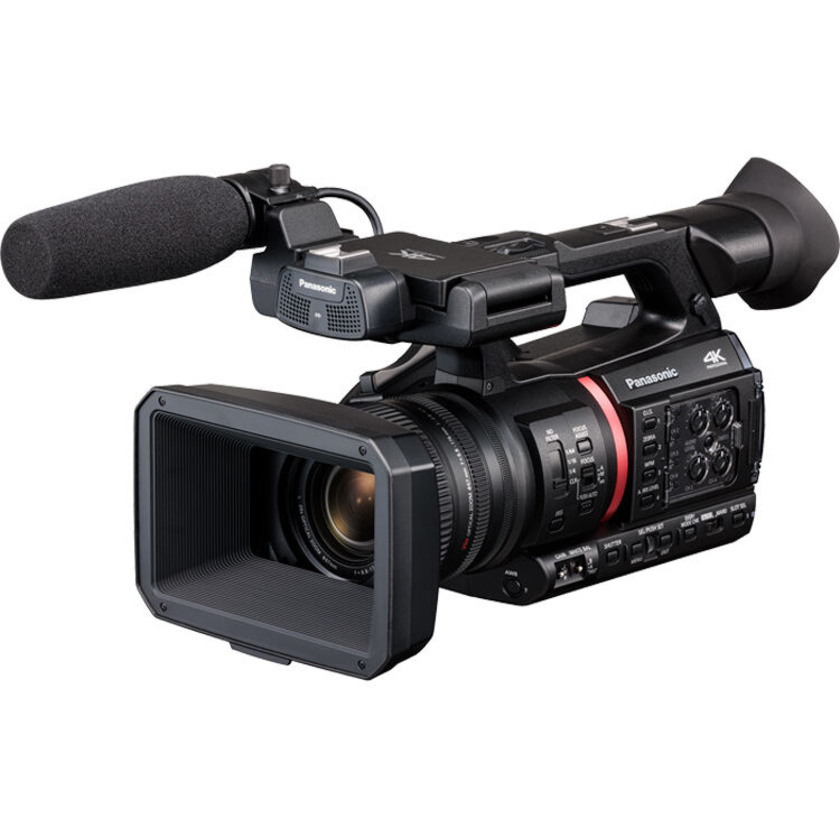

The Panasonic AG-CX370 UHD 4K Pro Camcorder with NDI/HX2 and Auto-Tracking is a high-end handheld camcorder designed to meet the demands of modern video production. Building on the acclaimed high performance and usability of its predecessor, the AG-CX350, it features 10-bit 4K recording, a wide-angle high-magnification zoom lens, and HDR-compatible V-Log/HLG as well as manual three-ring control for precise operation. Expanded functionality in the AG-CX370 includes a new 4-channel audio input terminal with independent volume control for simultaneous recording from up to four microphones. It also incorporates a GENLOCK input terminal for broadcast-quality multi-camera synchronized recording. In addition, the SDI output has been upgraded to 12G-SDI for uncompressed 4K video output, and the IP output now supports NDI® HX2,* enhancing its operability for live camera applications. Despite its lightweight and compact design, the AG-CX370 provides professionals with a powerful solution for production, broadcasting, and streaming.
Panasonic AG-CX370 UHD 4K Pro Camcorder with NDI/HX2 and Auto-Tracking
Usually ships in 4 - 6 weeks
Our Price
$8,549
Usually ships in 4 - 6 weeks
Email me when stock arrives
Shipping & Availability
Usually ships in 4 - 6 weeks.
Deliver to
Auckland
for $18
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
4 - 6 weeks
Click & Collect
Features
- 1"-Type 15MP MOS Sensor
- Up to UHD 4K60, Uncompressed 12G-SDI Out
- 20x Optical, 32x HD/24x UHD 4K i.Zoom
- Intelligent AF, Tracking, Face Detection
- 4-Channel Audio and Genlock Inputs
- HDR and V-Log/HLG Support
Description
Specifications
| General | |||
| Power | DC 7.28 V (when the battery is used) DC 12 V (when the AC adaptor is used) |
||
| Power Consumption | 26 W (when the LCD monitor is used) 17 W (1080i / 422ALL-I 100M recording, when the LCD monitor is used, no external device connection) |
||
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) | ||
| Operating Humidity | 10 % to 80 % (no condensation) | ||
| Weight | Body: approx. 1.9 kg (4.19 lb) (body only, excluding lens hood, battery, and accessories) Shooting: approx. 2.3 kg (5.07 lb) (including lens hood, battery, and microphone holder) |
||
| Dimensions | 180 mm (W) x 173 mm (H) x 311 mm (D) (7-1/8 inches x 6-13/16 inches x 12-1/4 inches) (excluding protrusion and eye cup) | ||
| Camera Unit | |||
| Pickup Device | 1.0-type (effective size) MOS solid state image sensor | ||
| Effective Pixels | 15,030,000 pixel | ||
| Lens | Optical image stabilizer lens, optical 20x motorized zoom F value: F2.8 to F4.5 Focal length: f=8.8 mm to 176 mmm, 35 mm equivalent: 24.5 mm to 490 mm |
||
| Filter Diameter | 67 mm | ||
| Optical Filter | ND Filter: Clear, 1/4, 1/16, 1/64 IR Filter: Incorporates the ON/OFF control function |
||
| Shortest Shooting Distance (M.O.D.) | Approx. 10 cm (W), 1.0 m (T) from the front lens | ||
| Gain Setting | L/M/H selector switch GAIN/ISO mode = dB –3 dB to 18 dB (adjustable in 1 dB steps) 24 dB, 30 dB, 36 dB switched (when assigning [S. GAIN] to the USER button) GAIN/ISO mode = ISO ISO 400, ISO 500, ISO 640, ISO 800, ISO 1000, ISO 1250, ISO 1600, ISO 2000, ISO 2500, ISO 3200, ISO 4000, ISO 5000, ISO 6400, ISO 8000, ISO 10000, ISO 12800 |
||
| Color Temperature Setting | ATW, ATW LOCK, A ch, B ch, preset 3200 K/preset 5600 K/VAR (2000 K to 15000 K) |
||
| Shutter Speed | When [SYSTEM MODE] = 59.94 Hz | ||
| 59.94i/59.94p mode | 1/60 sec. (shutter off), 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec. |
||
| 29.97p mode | 1/30 sec., 1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec. |
||
| 23.98p mode | 1/24 sec., 1/48 sec., 1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec. |
||
| When [SYSTEM MODE] = 50.00 Hz | |||
| 50i/50p mode | 1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec. |
||
| 25p mode | 1/25 sec., 1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec. |
||
| Shutter Speed (Slow Shutter) | When [SYSTEM MODE] = 59.94 Hz | ||
| 59.94i/59.94p mode | 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/15 sec., 1/30 sec. | ||
| 29.97p mode | 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/15 sec. | ||
| 23.98p mode | 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/12 sec. | ||
| When [SYSTEM MODE] = 50.00 Hz | |||
| 50i/50p mode | 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/12 sec., 1/25 sec. | ||
| 25p mode | 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/12 sec. | ||
| Shutter Speed (Synchro Scan) | When [SYSTEM MODE] = 59.94 Hz | ||
| 59.94i/59.94p mode | 1/60.0 sec. to 1/7200 sec. | ||
| 29.97p mode | 1/30.0 sec. to 1/7200 sec. | ||
| 23.98p mode | 1/24.0 sec. to 1/7200 sec. | ||
| When [SYSTEM MODE] = 50.00 Hz | |||
| 50i/50p mode | 1/50.0 sec. to 1/7200 sec. | ||
| 25p mode | 1/25.0 sec. to 1/7200 sec. | ||
| Shutter Open Angle | 3.0 deg to 180.0 deg to 360.0 deg (in 0.5 deg steps) | ||
| VFR Recording Frame Rate | When [SYSTEM MODE] = 59.94 Hz 1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 24, 25, 26, 27, 28, 30, 32, 34, 36, 40, 44, 48, 54, 60 (fps) |
||
| When [SYSTEM MODE] = 50.00 Hz 1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 23, 24, 25, 26, 27, 28, 30, 32, 34, 37, 42, 45, 48, 50 (fps) |
|||
| Super Slow Recording | When [SYSTEM MODE] = 59.94 Hz 1920 x 1080 (FHD): shooting frame rate 120 fps |
||
| When [SYSTEM MODE] = 50.00 Hz 1920 x 1080 (FHD): shooting frame rate 100 fps |
|||
| Sensitivity | When [HIGH SENS.] mode F12 (2000 lx, 3200 K, 89.9 % reflect, 2160/59.94p, 1080/59.94i) F13 (2000 lx, 3200 K, 89.9 % reflect, 2160/50p, 1080/50i) |
||
| Horizontal Resolution | 2000 TV or higher (UHD: center) 1000 TV or higher (FHD: center) |
||
| i.Zoom | x32 (FHD), x24 (UHD) | ||
| Digital Zoom | x2/ x5/ x10 | ||
| Lens Hood | Hood with lens cover | ||
| Memory Card Recorder | |||
| Recording Media | SDHC memory card, SDXC memory card UHS-I/UHS-II UHS Speed Class 3 supported, Video Speed Class V90 supported |
||
| Recording Slot | SDXC UHS-II card slot x 22 | ||
| Recording Pixels | 3840 × 2160 (UHD), 1920 × 1080 (FHD), 1280 × 720 (HD) (AVC-Intra50: 1440 × 1080, 960 × 720) |
||
| System Frequency | 59.94 Hz/50.00 Hz | ||
| Recording File Format | MOV (AVC), MOV (HEVC), AVCHD, P2 MXF | ||
| 2 Slot Functions | Relay Rec, Simultaneous Rec, Background Rec | ||
| Special Recording Functions | Pre Rec, Interval Rec, Time Stamp | ||
| Digital Video | |||
| Quantization | MOV | 4:2:2 10 bit/4:2:0 8 bit/4:2:0 10 bit (HEVC) | |
| AVCHD | 4:2:0 8 bit | ||
| P2 | 4:2:2 10 bit/4:2:0 10 bit (AVC-intra50)/4:2:0 8 bit (AVC-LongG12) | ||
| Video Compression Format | MOV: H.264/MPEG-4 AVC High Profile P2: AVC-Intra422/AVC-LongG50/AVC-LongG25/AVC-LongG12: MPEG-4 AVC/H.264 High Profile P2: AVC-Intra200/AVC-Intra100/AVC-Intra50: MPEG-4 AVC/H.264 Intra Profile |
||
| Digital Audio | |||
| Recording Audio Signal | MOV | 48 kHz/24 bit, 4 ch, Linear PCM | |
| AVCHD | 48 kHz/16 bit, 2 ch, Dolby Audio™ | ||
| P2 | 48 kHz/24 bit, 4 ch (excluding AVC‑LongG12) 48 kHz/16 bit, 4 CH (AVC-Intra100/AVC-Intra50/AVC‑LongG12) * 24 bit/16 bit switch by menu |
||
| Headroom | 12 dB/18 dB/20 dB switchable (menu) | ||
| AVC Proxy | |||
| File Format | MOV | ||
| Video Compression Format | H264/AVC High Profile | ||
| Audio Compression Format | AAC-LC | ||
| Recording Time | Approx. 13 min. per 1 GB of AVC-G6 2CH MOV | ||
| Live Streaming | |||
| Video Compression Format | H.264/MPEG-4 AVC Main Profile, H.264/MPEG-4 AVC High Profile |
||
| Video Resolution | 3640 x 2160 (UHD), 1920 x 1080 (FHD), 1280 x 720 (HD), 640 x 360, 360 x 180 | ||
| Streaming Method | Unicast, Multicast | ||
| Frame Rate | System frequency = 59.94 Hz: 24 fps, 30 fps, 60 fps System frequency = 50.00 Hz: 25 fps, 50 fps |
||
| Bit Rate | 3640 x 2160 (UHD): 75 Mbps, 50 Mbps, 25 Mbps, 12 Mbps, 8 Mbps Other than those above: 24 Mbps, 20 Mbps, 16 Mbps, 14 Mbps, 8 Mbps, 6 Mbps, 4 Mbps, 3 Mbps, 2 Mbps, 1.5 Mbps, 1 Mbps, 0.7 Mbps, 0.5 Mbps |
||
| Audio Compression Format | AAC-LC, 48 kHz/16 bit, 2 ch | ||
| Network Protocol | RTSP/RTP/RTMP/RTMPS/SRT | ||
| Video Output | |||
| SDI OUT | BNC x 1, SDI REC REMOTE supported 4K(12G/6G), HD (3G/1.5G) 0.8 V [p-p], 75 Ω, Output format (4:2:2 10 bit): • 1920 x 1080: 59.94p, 50p, 59.94i, 50i, 29.97Psf, 25Psf, 23.98PsF • 1280 x 720: 59.94p, 50p |
||
| HDMI OUT | HDMI x 1, Type A, HDMI REC REMOTE supported, VIERA Link not supported Output format (4:2:2 10 bit): • 3840 x 2160: 59.94p, 50p, 29.97p, 25p, 23.98p • 1920 x 1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p • 1280 x 720: 59.94p, 50p |
||
| VIDEO OUT | 3.5 mm diameter mini jack, composite 1.0 V [p-p], 75 Ω | ||
| Audio Input/Output | |||
| Built-in Microphone | Stereo microphone | ||
| AUDIO INPUT 1/2 | XLR (3-pin) x 2 (INPUT1, INPUT2) Input high impedance, LINE/MIC/MIC+48V (switchable SW) MIC: -40 dBu/-50 dBu/-60 dBu (switchable menu) LINE: +4 dBu/0 dBu (switchable menu) |
||
| AUDIO INPUT | φ3.5 mm stereo mini jack, unbalance MIC: -40 dBV (0 dB=1 V/Pa, 1 kHz) Plug-in power compatible, supply voltage:2.5 V±0.5 V LINE：-10dBV Input impedance: Approx. 3kΩ (when plug-in power is ON) Approx.20kΩ (when plug-in power is OFF) |
||
| SDI OUT | Linear PCM 4 ch | ||
| HDMI OUT | Linear PCM 4 ch (switchable menu) | ||
| Headphone | 3.5 mm diameter stereo mini jack x 1 | ||
| Speaker | 20 mm diameter, round x 1 | ||
| Other Input/Output | |||
| GENLOCK IN | BNCx1, 1.0V [p-p], 75Ω | ||
| TC IN/OUT | BNC x 1, Used as the input and output terminals (switchable menu) Input: 1.0 V to 4.0 V [p-p] 10 kΩ Output: 2.0 V ± 0.5 V [p-p] low impedance |
||
| Remote | 2.5 mm diameter super mini jack | ||
| LAN | RJ-45: 1000BASE-T/100BASE-TX/10BASE-T NDI® HX2 supported |
||
| USB 2.0 HOST | Type-A, 4-pin (5 V, 0.5 A) for Wireless Module (option) | ||
| USB 3.0 DEVICE | USB 3.1 GEN1 Type-C, USB Mass storage function No USB bus power function |
||
| DC IN 12V | DC 12 V EIAJ Type 4 | ||
| Monitor/Viewfinder | |||
| LCD Montor | 3.2 type TFT LCD color monitor (3:2), approx. 1,620,000 dots, Touch panel video display (16: 9) area: Approx. 1,370,000 dots |
||
| Viewfinder | 0.39 type OLED (organic EL display), approx. 2,360,000 dots, video display (16: 9) area: approx. 1,770,000 dots |
In The Box
- Panasonic AG-CX370 UHD 4K Pro Camcorder with NDI|HX2 and Auto-Tracking
- Panasonic 7.28V 43Wh Lithium-Ion Battery for DVX200 and CX10 (5900mAh)
- Panasonic Battery Charger for AG-VBR & Other Batteries
- AC Adapter with Power Cord
- Microphone Holder Kit
- Shoulder Strap
- Eye Cup
- Lens Hood
- Grip Belt
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Panasonic AG-CX370 UHD 4K Pro Camcorder with NDI/HX2 and Auto-Tracking
- Manufacturer: Panasonic
- Model: AG-CX370
- SKU: AG-CX370
- RM Product #: 122180
- Warranty: All Lumix and Panasonic Camcorder products come with a 3 year warranty
