| Key Specs |
|
| Lens Mount |
Canon RF |
| Sensor Resolution |
Actual: 50.3 Megapixel Effective: 45 Megapixel |
| Image Sensor |
36 x 24 mm (Full-Frame) BSI Stacked CMOS |
| Image Stabilisation |
Sensor-Shift, 5-Axis |
| ISO Sensitivity Range |
Photo 100 to 51,200 (Extended: 50 to 102,400) |
| Continuous Shooting |
Electronic Shutter Up to 30 fps at 45 MP for up to 200 Frames (JPEG) / 93 Frames (Raw) Mechanical Shutter Up to 12 fps at 45 MP for up to 760 Frames (JPEG) / 230 Frames (Raw) |
| Internal Recording Modes |
Raw 12-Bit DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97/50/59.94 fps DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps H.264/MP4/XF-AVC S/XF-HEVC S 4:2:2/4:2:0 8/10-Bit DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps UHD 8K (7680 x 4320) at 23.98/25/29.97 fps DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94/100/120 fps UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100/120 fps DCI 2K (2048 x 1080) at 23.98/24.00/25/29.97/50/59.94/100/120/200/240 fps 1920 x 1080 at 23.98/25/29.97/50/59.94/100/120/200/240 fps |
| External Recording Modes |
4:2:2 10-Bit via HDMI DCI 4K (4096 x 2160) up to 59.94 fps UHD 4K (3840 x 2160) up to 59.94 fps |
| Media/Memory Card Slot |
Slot 1: CFexpress Type B (CFexpress 2.0) [2 TB Maximum / VPG-400 or Faster Recommended] Slot 1: SD/SDHC/SDXC (UHS-II) [V90 or Faster Recommended] |
| Video I/O |
1x HDMI (Unspecified Signal) Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Microphone Input on Camera Body 1x 1/8" / 3.5 mm TRS Stereo Headphone Output on Camera Body |
| Power I/O |

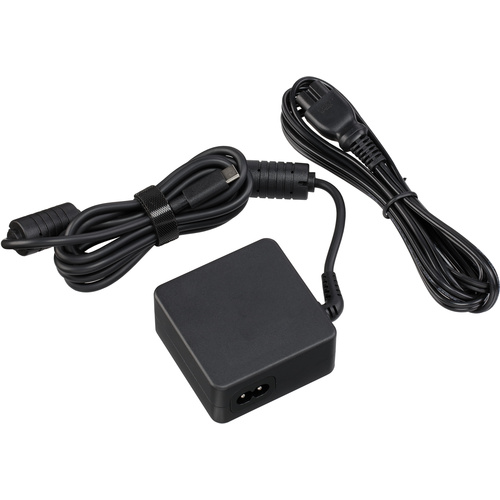

1x USB-C (5VDC at 1.5 A) Input |
| Other I/O |
1x USB-C (USB 3.2 / 3.1 Gen 2) Data Input/Output (Shared with Power Input) 1x Canon N3 Control Input 1x PC Sync Socket FlashSync |
| Wireless |
2.4 / 5 / 6 GHz Wi-Fi 6 (802.11ax), Bluetooth 5.0 |
| Display Type |
Articulating Touchscreen LCD |
| Battery Type |

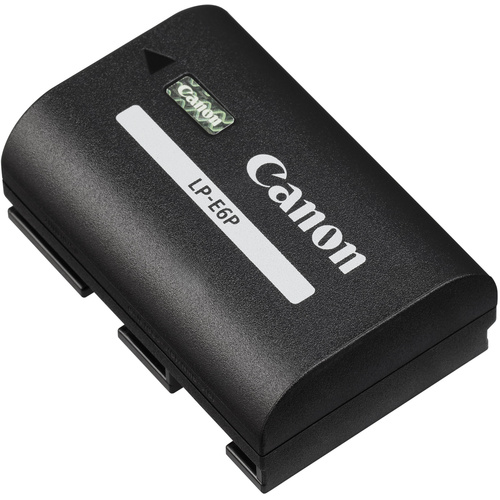

1x LP-E6P Rechargeable Lithium-Ion or 1x LP-E6NH Rechargeable Lithium-Ion or 1x LP-E6N Rechargeable Lithium-Ion |
| Imaging |
|
| Lens Mount |
Canon RF |
| Sensor Resolution |
Actual: 50.3 Megapixel Effective: 45 Megapixel |
| Image Sensor |
36 x 24 mm (Full-Frame) BSI Stacked CMOS |
| Sensor Crop (35mm Equivalent) |
Crop Factor: 1x Additional Modes: 1.6x Additional Crop Occurs in Select Video Modes |
| Image Stabilisation |
Sensor-Shift, 5-Axis |
| Built-In ND Filter |
No |
| Capture Type |
Stills & Video |
| Exposure Control |
|
| Shutter Type |
Mechanical Focal Plane Shutter and Electronic Rolling Shutter |
| Shutter Speed |
Electronic Shutter 1/32000 to 30 Seconds Electronic Front Curtain Shutter 1/8000 to 30 Seconds Mechanical Shutter 1/8000 to 30 Seconds |
| Bulb/Time Mode |
Bulb Mode |
| ISO Sensitivity Range |
Photo 100 to 51,200 (Extended: 50 to 102,400) |
| Metering Method |
Centre-Weighted Average, Evaluative, Partial, Spot |
| Exposure Modes |
Aperture Priority, Auto, Manual, Programme, Shutter Priority |
| Exposure Compensation |
-3 to +3 EV (1/3, 1/2 EV Steps) |
| Metering Range |
-3 to 20 EV |
| White Balance |
Presets: Auto, Cloudy, Colour Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten |
| Continuous Shooting |
Electronic Shutter Up to 30 fps at 45 MP for up to 200 Frames (JPEG) / 93 Frames (Raw) Mechanical Shutter Up to 12 fps at 45 MP for up to 760 Frames (JPEG) / 230 Frames (Raw) |
| Interval Recording |
Yes |
| Self-Timer |
2/10-Second Delay |
| Still Image Capture |
|
| Image Sizes |
3:2 HEIF / JPEG / Raw 44.8 MP (8192 x 5464) 24 MP (6000 x 4000) 17.3 MP (5088 x 3392) 11.6 MP (4176 x 2784) 3.8 MP (2400 x 1600) 1:1 HEIF / JPEG 29.8 MP (5456 x 5456) 16 MP (4000 x 4000) 7.8 MP (2784 x 2784) 2.6 MP (1600 x 1600) 4:3 HEIF / JPEG 39.8 MP (7280 x 5464) 21.3 MP (5328 x 4000) 10.3 MP (3172 x 2784) 3.4 MP (2112 x 1600) 16:9 HEIF / JPEG 37.7 MP (8192 x 4608) 20.2 MP (6000 x 3386) 9.8 MP (4176 x 2344) 3.2 MP (2400 x 1344) |
| Aspect Ratio |
1:1, 3:2, 4:3, 16:9 |
| Image File Format |
HEIF, JPEG, Raw |
| Bit Depth |
14-Bit |
| Video Capture |
|
| Internal Recording Modes |
Raw 12-Bit DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97/50/59.94 fps DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps H.264/MP4/XF-AVC S/XF-HEVC S 4:2:2/4:2:0 8/10-Bit DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps UHD 8K (7680 x 4320) at 23.98/25/29.97 fps DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94/100/120 fps UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100/120 fps DCI 2K (2048 x 1080) at 23.98/24.00/25/29.97/50/59.94/100/120/200/240 fps 1920 x 1080 at 23.98/25/29.97/50/59.94/100/120/200/240 fps |
| External Recording Modes |
4:2:2 10-Bit via HDMI DCI 4K (4096 x 2160) up to 59.94 fps UHD 4K (3840 x 2160) up to 59.94 fps |
| Fast-/Slow-Motion Support |
Slow-Motion Only |
| Gamma Curve |
Canon Log 2, Canon Log 3, HDR-HLG, HDR-PQ, Rec709, Rec2020 |
| Recording Limit |
No |
| IP Streaming |
No |
| Built-In Microphone |
Stereo |
| Audio Recording |
AAC Audio LPCM Audio |
| Interface |
|
| Media/Memory Card Slot |
Slot 1: CFexpress Type B (CFexpress 2.0) [2 TB Maximum / VPG-400 or Faster Recommended] Slot 1: SD/SDHC/SDXC (UHS-II) [V90 or Faster Recommended] |
| Video I/O |
1x HDMI (Unspecified Signal) Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Microphone Input on Camera Body 1x 1/8" / 3.5 mm TRS Stereo Headphone Output on Camera Body |
| Power I/O |
1x USB-C (5VDC at 1.5 A) Input |
| Other I/O |
1x USB-C (USB 3.2 / 3.1 Gen 2) Data Input/Output (Shared with Power Input) 1x Canon N3 Control Input 1x PC Sync Socket FlashSync |
| Wireless |
2.4 / 5 / 6 GHz Wi-Fi 6 (802.11ax), Bluetooth 5.0 |
| Mobile App Compatible |
Yes: Android & iOS App Name: Canon Camera Connect Functionality: Access Stored Files, Adjust Settings, Firmware Update, Remote Control, View Live Feed |
| Global Positioning (GPS, GLONASS, etc.) |
GPS Via Connected Smartphone |
| Monitor |
|
| Display Size |
3.2" |
| Resolution |
2,100,000 Dot |
| Display Type |
Articulating Touchscreen LCD |
| Secondary Display |
Top: Status Display |
| Viewfinder |
|
| Type |
Built-In Electronic (OLED) |
| Size |
0.5" |
| Resolution |
5,760,000 Dot |
| Eye Point |
24 mm |
| Coverage |
100% |
| Magnification |
Approx. 0.76x |
| Dioptre Adjustment |
-4 to +2 |
| Focus |
|
| Focus Type |
Auto and Manual Focus |
| Focus Mode |
Continuous-Servo AF, Manual Focus, One-Shot AF, Single-Servo AF |
| Autofocus Points |
Photo Phase Detection: 1053 Video Phase Detection: 975 |
| Autofocus Sensitivity |
-7.5 to +21 EV |
| Flash |
|
| Built-In Flash/Light |
No |
| Maximum Sync Speed |
1/250 Second |
| Flash Compensation |
-3 to +3 EV (1/3, 1/2 EV Steps) |
| Dedicated Flash System |
eTTL |
| External Flash Connection |
Shoe Mount |
| Environmental |
|
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Operating Humidity |
85% |
| General |
|
| Battery Type |
1x LP-E6P Rechargeable Lithium-Ion or 1x LP-E6NH Rechargeable Lithium-Ion or 1x LP-E6N Rechargeable Lithium-Ion |
| Shoe Mount |
1x Hot Shoe |
| Tripod Mounting Thread |
1x 1/4"-20 Female (Bottom) |
| Material of Construction |
Magnesium Alloy |
| Dimensions (W x H x D) |
5.4 x 3.9 x 3.5" / 138.4 x 98.4 x 88.4 mm |
| Weight |
1.5 lb / 670 g (With Battery, Recording Media) 1.3 lb / 588 g (Body Only) |
