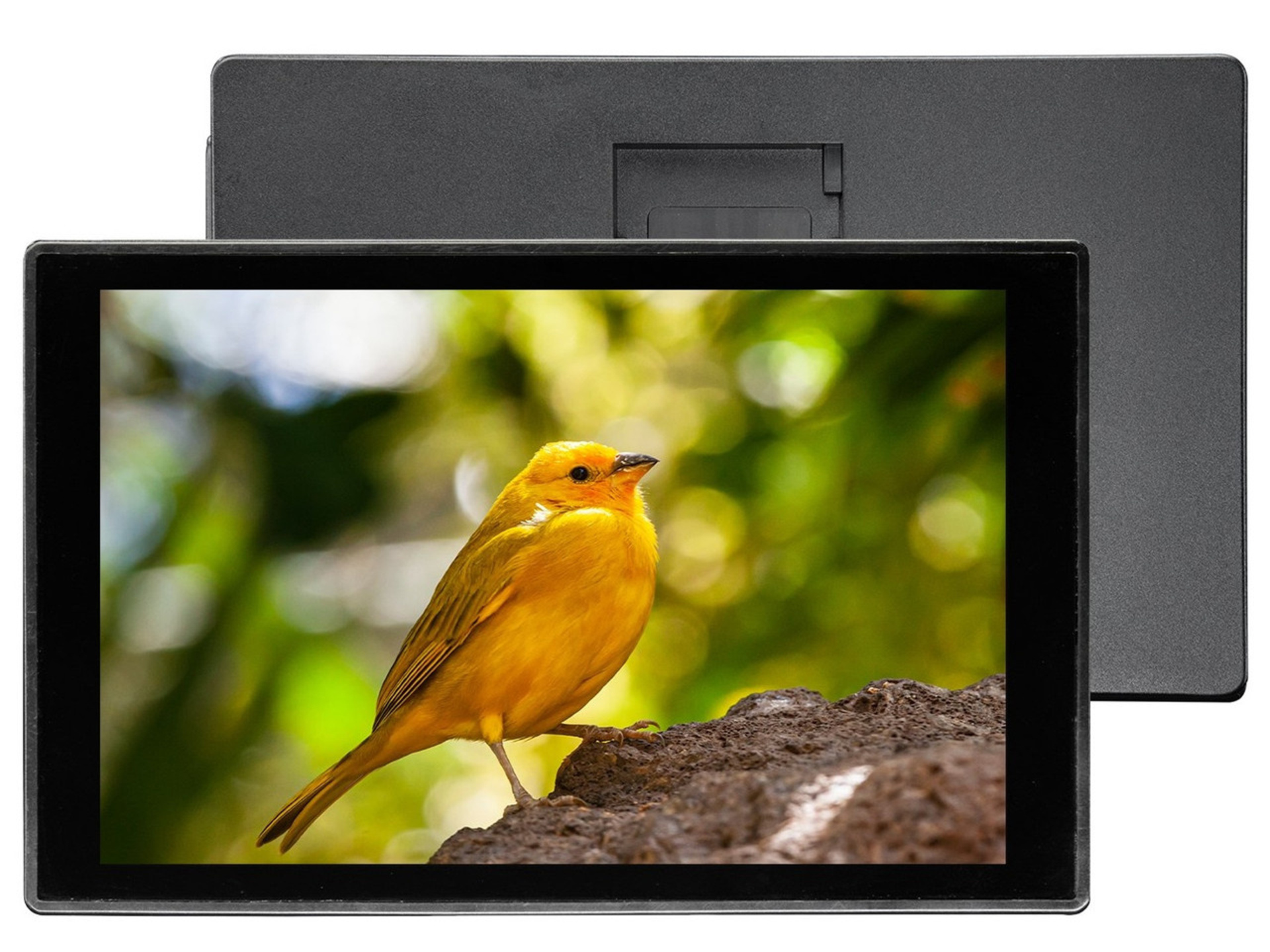

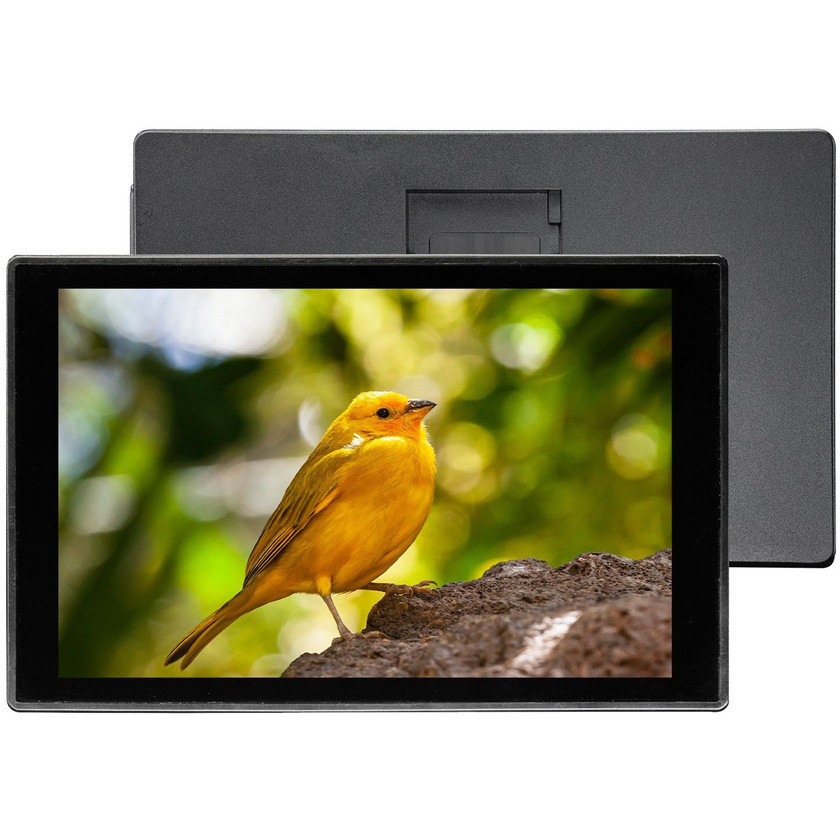

Portkeys HD7T 7" 1000nit Touchscreen 4K HDMI Monitor

Product #122381 | SKU HD7T | Portkeys
Usually ships in 6 - 8 weeks what does this mean?
Our Price $219
Usually ships in 6 - 8 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 6 - 8 weeks. Deliver to Auckland for $8.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 6 - 8 weeks
Click & Collect

Features

  • 1000 nits high-brightness screen
  • 7-inch IPS HD matte display
  • Supports 4K HDMI input
  • Real-time 3D LUT preview
  • Peaking, Zebra, Waveform tools
  • Silent fan with adjustable speed

Description

The Portkeys HD7T 7" 1000nit Touchscreen 4K HDMI Monitor is an ultra-lightweight, HDMI-only 7-inch on-camera monitor designed for creators who need essential monitoring features in a compact and budget-friendly form. With 4K30p signal support, 1000nits brightness, and a responsive touchscreen interface, the HD7T is ideal for outdoor shooting, lightweight camera rigs, or as a reliable secondary monitor.

Its full-laminated touchscreen makes navigation and function control intuitive, while a wide viewing angle of 80° from all sides, and ensures you see a consistent image from any angle. Whether you’re shooting interviews, vlogs, or action scenes in daylight, the HD7T has the visibility, precision, and flexibility you need.

Specifications

Display Specifications
Color Gamut Rec.709
Resolution 8-bit
Brightness 1000 nits
Contrast Ratio 1000:1
Viewing Angle 80°/80°/80°/80°
Physical Characteristics
Dimensions 176.1 × 103.8 × 29.2 mm
Weight 245 g
Material Plastic
Power
Input Voltage 7–20 V
Power Input DC 7–24 V, USB-A
Maximum Power 10.5 W
Supported Battery Models SONY NP-F970/F960/F750/F550
Operating System
OS Portkeys OS
Interfaces
Input Interface 4K30p HDMI, AV IN
Output Interface 3.5 mm Headphone Jack (3-pole)
Firmware Upgrade USB-A
Supported Input Signals
HDMI Input Signal 4096×2160p@24Hz
3840×2160p@23.97Hz, 24Hz, 25Hz, 29.97Hz, 30Hz
1920×1080p@23.97Hz, 24Hz, 25Hz, 29.97Hz, 30Hz, 50Hz, 59.94Hz, 60Hz
1920×1080psf@23.97Hz, 24Hz, 25Hz, 29.97Hz, 30Hz
1920×1080i@50Hz, 59.94Hz, 60Hz
1280×720p@50Hz, 59.94Hz, 60Hz
720×576p@50Hz
720×576i@50Hz
720×480p@50Hz, 59.94Hz, 60Hz
720×480i@50Hz, 59.94Hz, 60Hz
AV Input Signal NTSC, PAL
Software Features
Monitoring Tools Peaking, Zebra, False Color, Luma Waveform, RGB Waveform, Luma Histogram, Audio Meters, Rectangle Crop, HDR (HLG), Check Field, Guides, Cross Hair, Grids, Anamorphic, 3D LUT
Image Adjustments Contrast, Brightness, Sharpness, Chroma, Color Temperature, Tint, Black Level
Display Settings Display Flip, V Flip, H Flip, Gesture Zoom
Color Temperature Setting Manual

In The Box

  • Portkeys HD7T 7" 1000nit Touchscreen 4K HDMI Monitor
  • Sunshade
  • A to A HDMI Cable
  • A to D (Micro) HDMI Cable
  • 360° Rotatable Ball Head Mount
  • AV Cable
  • Pair of Rubber Covers

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Portkeys HD7T 7" 1000nit Touchscreen 4K HDMI Monitor
  • Manufacturer: Portkeys
  • Model: HD7T
  • SKU: HD7T
  • RM Product #: 122381
  • Screen Size: 7"
  • Screen Resolution: 1280 x 800
