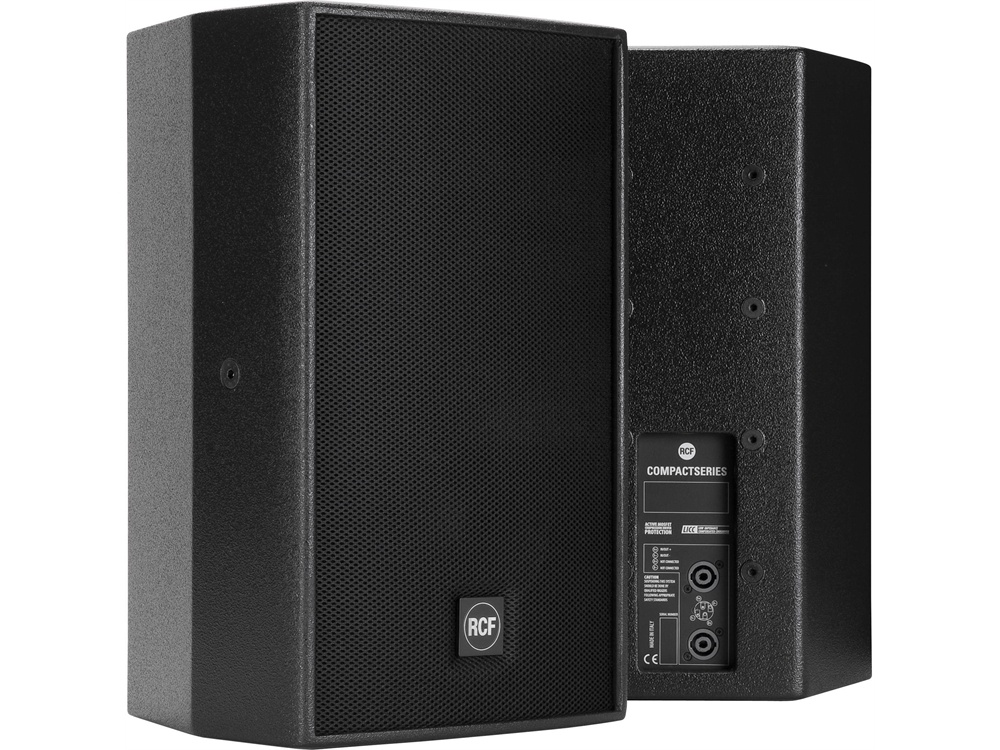

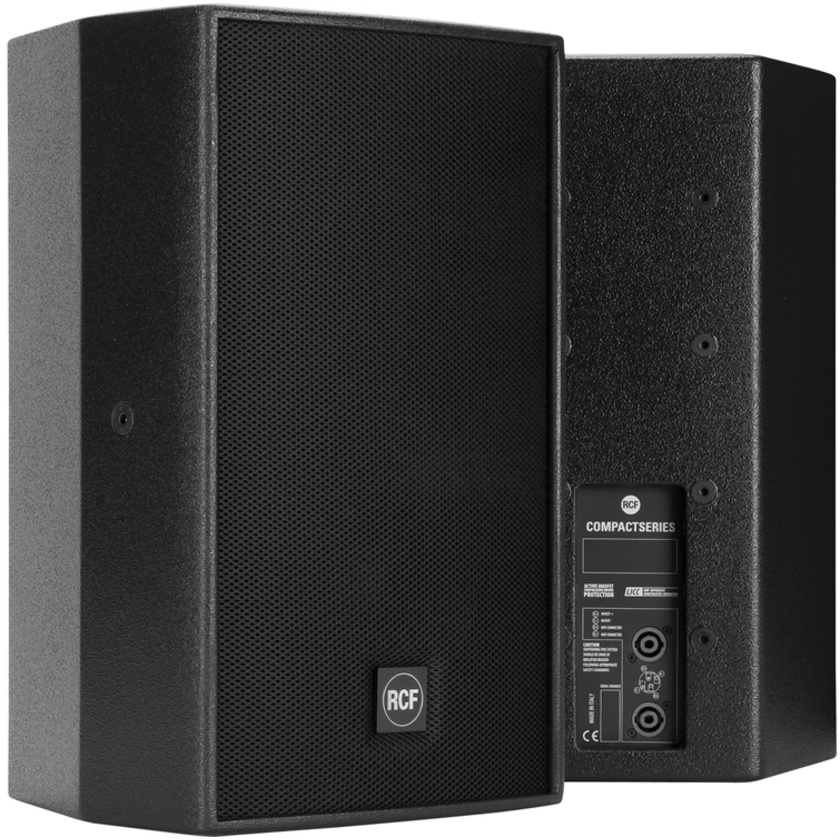

RCF C3110-96 Two-Way Passive Speaker System (Black)

Product #43200 | SKU 13000283 | RCF
In stock Ships direct Monday
Our Price $1,579.00
In stock Ships direct Monday
- +

this item may be nonreturnable
Shipping & Availability
Ships Monday. Deliver to Auckland for $33.00 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 3 working days
Click & Collect

Overview

Features an 10" high-output woofer and a 1" compression driver

Description

The black C3110-96 Two-Way Passive Speaker System from RCF features Constant Matching Design technology for optimal transition between the high frequency horn polar pattern and the low frequency woofer directivity. The horn can be rotated, allowing the loudspeaker to be installed either vertically or horizontally. The high-frequency transducer in this system is a 1” compression driver with 1.5” voice coil for smooth, wide dispersion and features an 10” woofer with a 2” voice coil for low frequency signals.

The system includes a high-level crossover network that features the LICC (Low Impedance Compensated Crossover) that offers delay reduction, reduced phase shift, and superior transient response. Dynamic high-frequency driver protection is accomplished with the Active Mosfet Compression Driver Protection System (AMCDP) that complements the driver power curve.

The cabinet is made of Baltic birch and is equipped with top and bottom multiple plates for either wall or suspended mounting with chains. The steel front grille is protected with a double layer polyurethane fabric. Connections are made through two Neutrik Speakon NL4 connectors (audio input and parallel link output). It is suitable for use in permanent installations such as main reinforcement in small spaces, high-level AV playback, zone delay and fill systems, or under balcony installations.

Features

  • Features an 10" high-output woofer and a 1" compression driver
  • 90° x 60° CMD (Constant Matching Design) constant directivity horn
  • Rotatable horn for horizontal mounting
  • Trapezoidal enclosure made of 15mm birch plywood
  • HF driver with Active Mosfet Compression Driver Protection (AMCDP)
  • Low Impedance Compensated Crossover (LICC)
  • Rigging inserts: 8 x M8 (rear), 2 x M10 (lateral)
  • Features multiple plates on top and bottom for either wall or suspended mounting with chains and includes installation points on its rear panel as well
  • Easily rotatable front RCF logo

Specifications

System
Frequency Response -10 dB: 67 Hz to 20 kHz
Coverage Angle Horizontal (-6 dB): 90°
Vertical (-6 dB): 60°
Directivity Factor Q: 11 (500 Hz to 16 kHz)
Sensitivity 1 W, 3.3' (1.0 m): 97 dB
Maximum SPL Peak Power, 3.3' (1.0 m): 128 dB
Impedance 8 O
Power RMS: 300 W
Peak: 1200 W
Protection Dynamic HF protection
Crossover 2.2 kHz
Transducers
Type Low Frequency: 10.0" (25.4 cm) woofer with 2.0" (5.1 cm) voice coil
High Frequency: 1.0" (2.5 cm) driver with 1.5" (3.8 cm) voice coil
Impedance 8 O
Power Low Frequency: 250 W (AES), 500 W (peak)
High Frequency: 25 W (AES), 50 W (peak)
Sensitivity 1 W, 3.3' (1.0 m)
Low Frequency: 96 dB
High Frequency: 106 dB
Physical
Enclosure Trapezoidal, 20° side angles, 15 mm birch plywood construction
Insert Rigging Inserts: 8 x M8 (rear), 2 x M10 (lateral), multiple plates (top and bottom)
Grille Perforated powder-coated steel covered with double layer polyurethane fabric
Input Connectors 2 x SPEAKON NL4
Dimensions (W x H x D) 11.8 x 19.7 x 11.7" (30.0 x 50.0 x 29.8 cm)
Weight 34.8 lb (15.8 kg)
Packaging Info
Package Weight 40.5 lb
Box Dimensions (LxWxH) 22.5 x 15.0 x 15.0"
