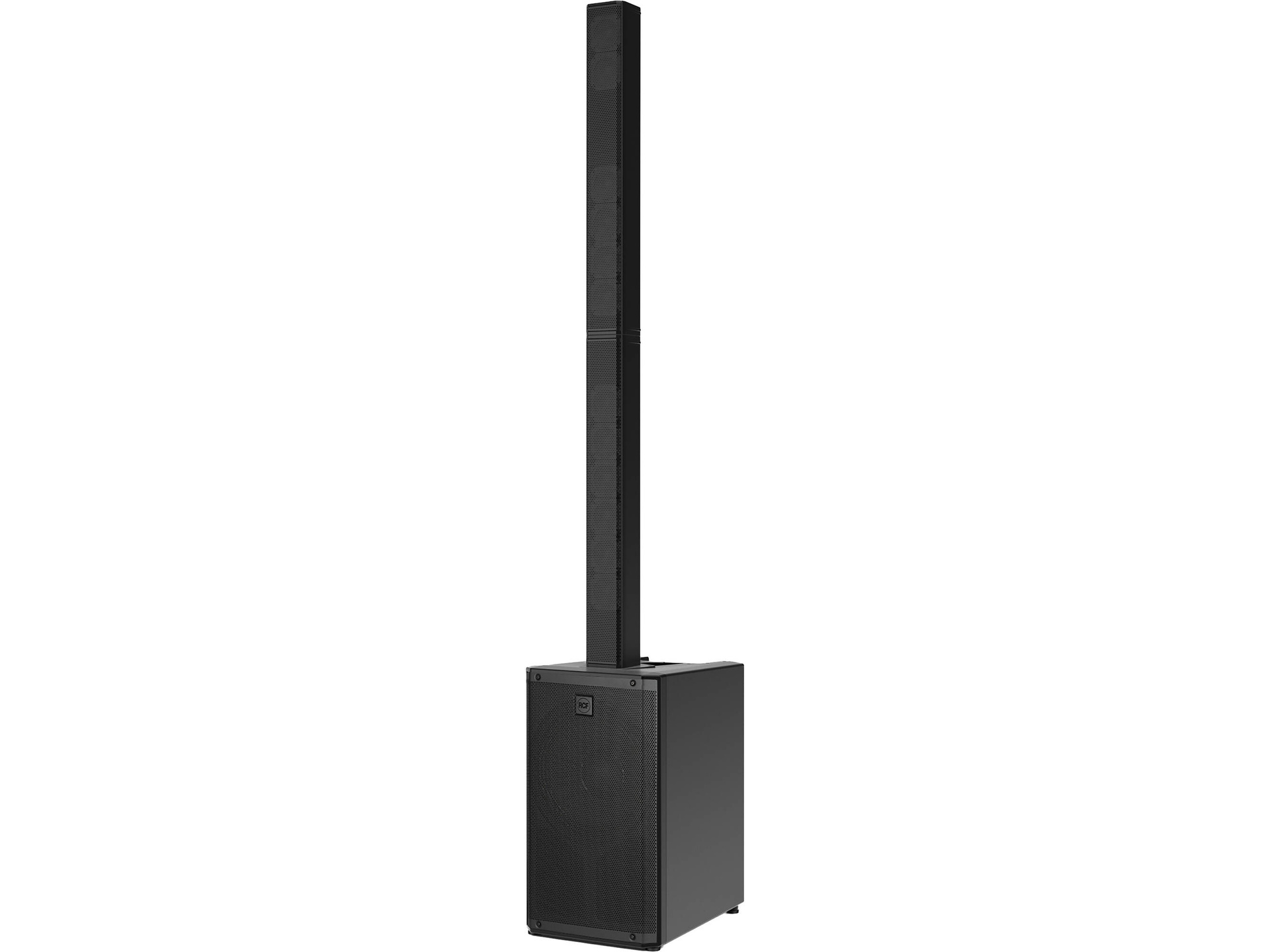

RCF EVOX J11 Active 12" 3-Way 3500W Portable Line Array PA System (Black)

Product #124933 | SKU EVOX-J11 | RCF
Pre-Order ETA to be confirmed what does this mean?
PRE-ORDER
Coming Soon...
A deposit of $500.00 is required for this pre-order.
Pre-Order ETA to be confirmed what does this mean?
PRE-ORDER
- +

Email me when stock arrives

Shipping & Availability
ETA to be confirmed. Deliver to Auckland for $139 Change location
Click & Collect Availability
Wellington Out of stock. ETA to be confirmed
Click & Collect

Features

  • For Live Stage, Theatre, and DJ Setups
  • 12" Woofer, 12 x 3" Drivers
  • 1.75" Neodymium Compression Driver
  • 120x40° Dispersion
  • 3500W Class-D Amplifier
  • Combo XLR-1/4" Input, XLR Output

Description

The RCF EVOX J11 Active 12" 3-Way 3500W Portable Line Array PA System (Black) is a powerful, active 12" 3-way portable line array PA system, engineered to provide exceptional sound projection for musicians, presenters, and DJs in a variety of environments including clubs, parties, and live stages. With its robust features, this system is well-suited for demanding audio applications.

Power and Amplification

Utilizing advanced Class-D amplification technology, the EVOX J11 delivers an impressive 3500W of power. The system incorporates a 12" high-excursion woofer, twelve 3" full-range drivers, and a 1.75" neodymium compression driver. This configuration enables a wide frequency response ranging from 37 Hz to 20 kHz and achieves a maximum SPL of 132 dB.

Coverage and Design

The EVOX J11 is designed for expansive sound coverage, providing a dispersion pattern of 120° horizontally and 40° vertically. This ensures that audio reaches a large area, making it ideal for both intimate and sizable venues.

Connectivity and Accessories

Connectivity options include a combo XLR-1/4" input and an XLR output, offering flexibility for various audio sources and setups. For added convenience, the system comes with a column carrying bag and a power cord, making transportation and setup quick and easy.

Specifications

Portable PA System
Speaker Configuration 1x 3-Way Speaker Column with Subwoofer
Number of Input Channels 1 (1 x Mono)
Amplifier Power Rating Total:
3500 W Peak
HF:
1500 W Peak
LF:
2000 W Peak
Amplifier Class Class-D
Speakers
Enclosure Type Bass-Reflex
HF Driver 1x 1.75" / 4.45 cm Compression Driver
HF Voice Coil 1.75" / 4.45 cm
MF Driver 12x 3" / 7.6 cm
MF Voice Coil 1" / 2.5 cm
LF Driver 1x 12" / 304.8 mm Woofer
Subwoofer Driver 1x 12" / 30.5 cm
Subwoofer Voice Coil 2.5" / 6.3 cm
Magnet HF Driver:
Neodymium
Signal Processing
Crossover 160 / 1800 Hz
Semi-Parametric AEQ No
Dynamic Processing Soft Limiter
Performance
Frequency Response 37 Hz to 20 kHz
Maximum SPL 132 dB
Coverage Angle 120° H x 40° V
Protections RMS, Thermal
Connectivity
Audio I/O 1x Combo XLR-1/4" 3-Pin Balanced Mic/Line Input
1x XLR 3-Pin Male Link Output
USB I/O No
Mobile App Compatible No
Network I/O No
Wireless Connectivity No
Power
AC Input Power 100 to 120 VAC, 60 Hz
AC Power I/O 1x powerCON Input
1x powerCON Output
Physical
Transport Options Speaker:
1x Carry Case (Top)
Construction Material Aluminium, Composite, Wood
Environmental Resistance No
Dimensions 81.89 x 22.17 x 13.78" / 208 x 56.31 x 35 cm
Weight 63.93 lb / 29 kg

In The Box

  • RCF EVOX J11 Active 12" 3-Way 3500W Portable Line Array PA System (Black)
  • Carrying Case for Array Speaker
  • Power Cable

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: RCF EVOX J11 Active 12" 3-Way 3500W Portable Line Array PA System (Black)
  • Manufacturer: RCF
  • Model: EVOX-J11
  • SKU: EVOX-J11
  • RM Product #: 124933
  • Colour: Black
