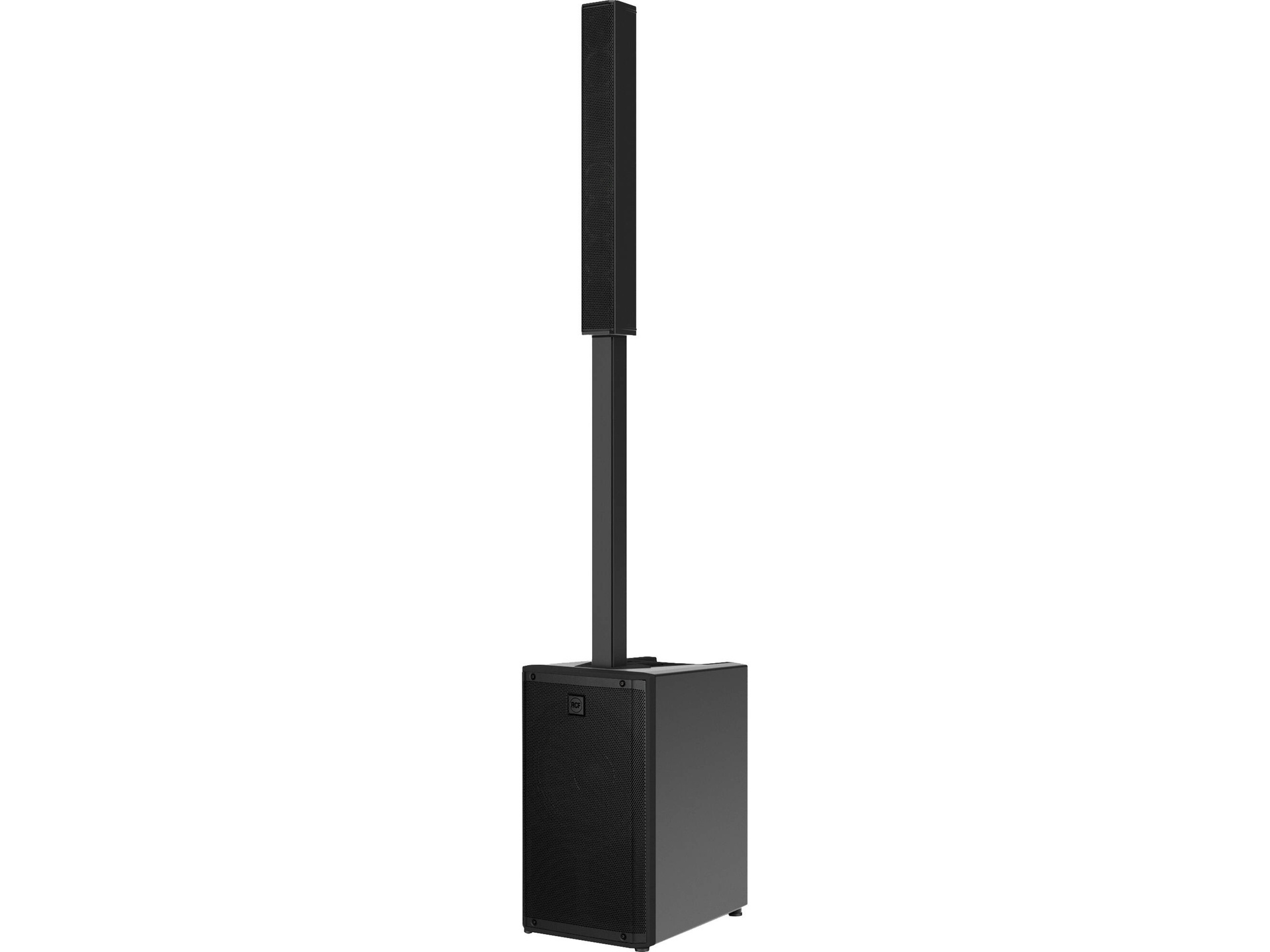

RCF EVOX J9 Active 12" 3-Way 2100W Portable Line Array PA System (Black)

Product #124932 | SKU EVOX-J9 | RCF
Pre-Order ETA to be confirmed what does this mean?
PRE-ORDER
Coming Soon...
A deposit of $400.00 is required for this pre-order.
Pre-Order ETA to be confirmed what does this mean?
PRE-ORDER
- +

Email me when stock arrives

Shipping & Availability
ETA to be confirmed. Deliver to Auckland for $128 Change location
Click & Collect Availability
Wellington Out of stock. ETA to be confirmed
Click & Collect

Features

  • For Live Stage, Theatre, and DJ Setups
  • 12" Woofer, 6 x 3" Drivers
  • 6 x 3" Midrange Drivers
  • 1.75" Neodymium Compression Driver
  • 2100W Class-D Amplifier
  • Combo XLR-1/4" Input, XLR Output

Description

The RCF EVOX J9 Active 12" 3-Way 2100W Portable Line Array PA System (Black) stands out as an active 12" 3-way 2100W portable line array PA system, expertly engineered for powerful sound projection, making it an excellent choice for musicians, presenters, and DJs alike in clubs, at parties, or during live stage performances.

Amplification and Drivers

Class-D amplification fuels the system with 1400W dedicated to a 12" high-excursion woofer, while an additional 700W powers six 3" full-range drivers and a 1.75" neodymium compression driver. This robust setup delivers a combined output of 2100W, resulting in a maximum SPL of 130 dB and an impressive frequency response extending from 40 Hz to 20 kHz.

Coverage and Design

The RCF EVOX J9 is designed to offer wide coverage with its 120° horizontal by 40° vertical dispersion pattern, ensuring clear and consistent sound throughout your audience area.

Connectivity

The system is equipped with versatile connectivity options, including a combo XLR-1/4" input for microphones or line-level sources and an XLR output for easy system expansion or linking to additional speakers.

Portability and Accessories

For convenience and portability, the adjustable pole mount allows easy and precise height positioning of the satellite speaker unit. The satellite speaker can be stored securely in the included padded bag, while a standard IEC power cord is provided for straightforward setup wherever your performance takes you.

Specifications

Portable PA System
Speaker Configuration 1x 2-Way Speaker Column with Subwoofer
Number of Input Channels 1 (1 x Mono)
Amplifier Power Rating Total:
2100 W Peak
HF:
700 W Peak
LF:
1400 W Peak
Amplifier Class Class-D
Speakers
Enclosure Type Bass-Reflex
HF Driver 1x 1.75" / 4.45 cm Compression Driver
HF Voice Coil 1.75" / 4.45 cm
MF Driver 6x 3" / 7.6 cm
MF Voice Coil 1" / 2.5 cm
Subwoofer Driver 1x 12" / 30.5 cm
Subwoofer Voice Coil 2.5" / 6.3 cm
Magnet HF Driver/MF Driver:
Neodymium
Signal Processing
Crossover 200 / 1800 Hz
Semi-Parametric AEQ No
Dynamic Processing Soft Limiter
Performance
Frequency Response 40 Hz to 20 kHz
Maximum SPL 130 dB
Coverage Angle 120° H x 40° V
Protections RMS, Thermal
Connectivity
Audio I/O 1x Combo XLR-1/4" 3-Pin Balanced Mic/Line Input
1x XLR 3-Pin Male Link Output
USB I/O No
Mobile App Compatible No
Network I/O No
Wireless Connectivity No
Power
AC Input Power 100 to 120 VAC, 60 Hz
AC Power I/O 1x IEC Input
Physical
Environmental Resistance No
Dimensions 81.89 x 18.21 x 13.78" / 208 x 46.25 x 35 cm
Weight 62.39 lb / 28.3 kg

In The Box

  • RCF EVOX J9 Active 12" 3-Way 2100W Portable Line Array PA System (Black)
  • Subwoofer
  • Power Cable
  • Satellite Speaker
  • Mounting Pole
  • Padded Bag

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: RCF EVOX J9 Active 12" 3-Way 2100W Portable Line Array PA System (Black)
  • Manufacturer: RCF
  • Model: EVOX-J9
  • SKU: EVOX-J9
  • RM Product #: 124932
  • Colour: Black
