The RCF HDL 38-AS 3200W Active Flyable Subwoofer Module (Black) is the ideal flyable bass complement for the HDL 30-A array system. It features one 4.0” voice coil, 18” Neodymium woofer to handle 136 dB SPL Max from 30 Hz to 140 Hz with the maximum linearity and low distortion. The HDL 38-AS is perfect to create flown systems for theatrical and indoor requirements. The built-in 3200W class-D amplifier delivers excellent playback clarity and up to 136 decibels SPL max. Due to its compatibility with RDNet - remote monitoring and control, the HDL 38-AS is part of the professional HDL System.

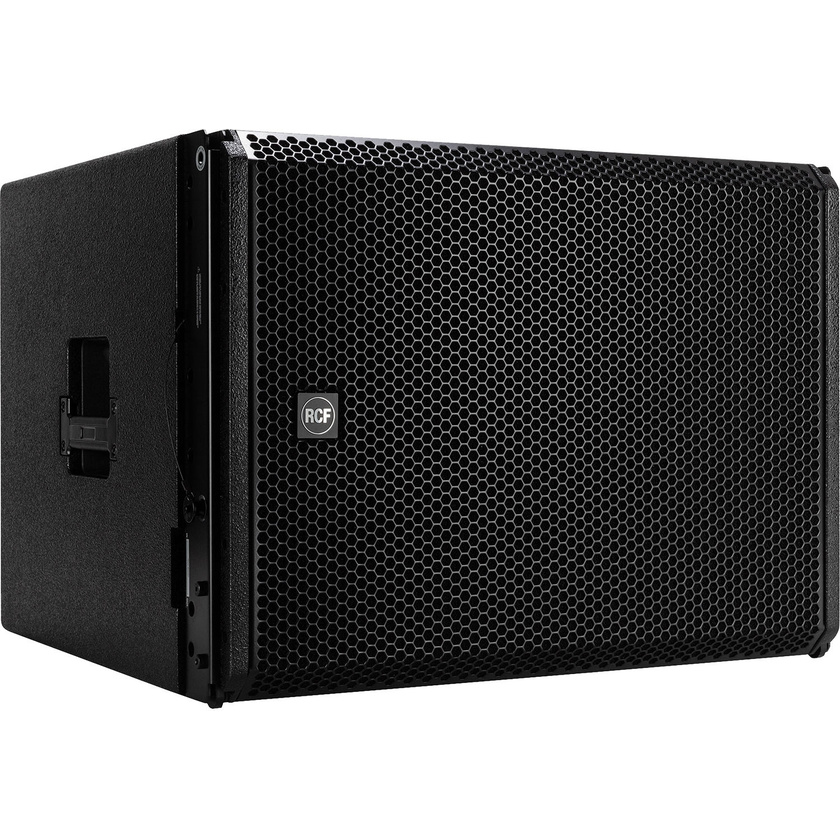

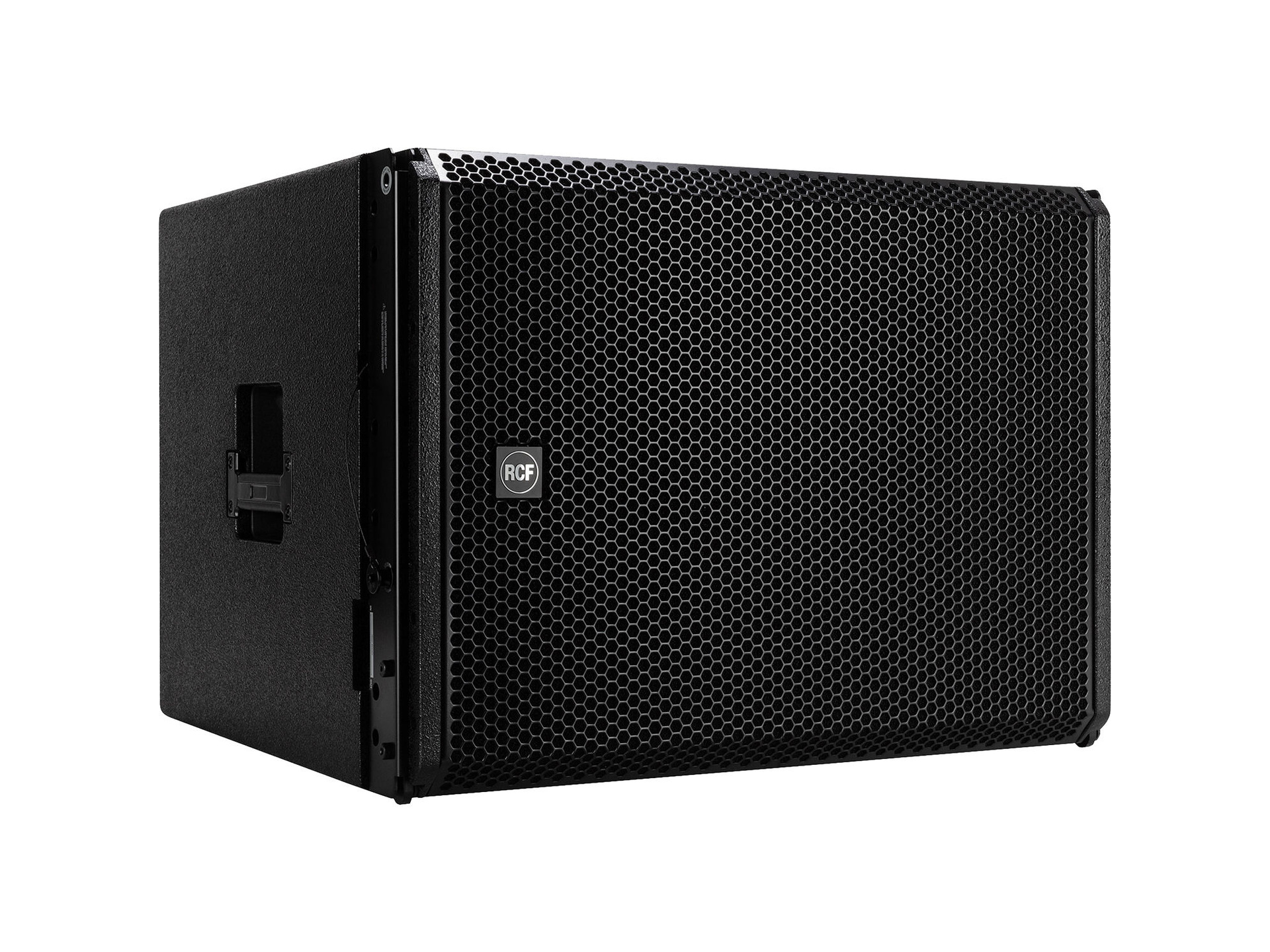

RCF HDL 38-AS 3200W Active Flyable Subwoofer Module (Black)
Contact us for an ETA
Our Price
$10,349
Contact us for an ETA
Email me when stock arrives
Features
- For Use with HDL 30-A Array System
- 18" Neodymium Woofer with 4" Voice Coil
- 3200W Class-D Amplifier
- 136 dB Max SPL
- 30 to 140 Hz Frequency Response
- RDNet Networked Management
Description
Specifications
| Enclosure Type | Line Array Subwoofer |
| Total Power Capacity | 3200 W Peak 1600 W RMS |
| Amplifier Power Rating | 3200 W Peak 1600 W RMS |
| Amplifier Class | Class-D |
| Drivers | |
| MF Driver | No |
| LF Driver | 1x 18" / 45.7 cm Woofer |
| LF Voice Coil | 4" / 10.2 cm |
| Magnet | Neodymium |
| Performance | |
| Frequency Response | 30 Hz to 140 Hz |
| Maximum SPL | 136 dB |
| Input Sensitivity | +4 dBu |
| Protections | Output Limiter, Thermal |
| Connectivity | |
| Audio I/O | 1x XLR 3-Pin Female Balanced/Unbalanced Line Input (Lockable) 1x XLR 3-Pin Male Balanced/Unbalanced Line Thru |
| Network I/O | 1x etherCON (RDNet) Input 1x etherCON (RDNet) Output |
| USB I/O | No |
| Wireless Connectivity | No |
| Signal Processing | |
| AEQ | Yes |
| Parametric AEQ | Yes |
| Semi-Parametric AEQ | No |
| Alignment Delay | Yes |
| Phase Adjustment | Yes |
| Digital Signal Processing | Delay, FIR Filter, User Settings |
| Power | |
| AC Input Power | 115 VAC, 60 Hz 230 VAC, 50 Hz |
| AC Power I/O | 1x powerCON Input (Locking) 1x powerCON Output (Locking) |
| Physical | |
| Mounting | 1 x Bracket Point (Each Side) 1 x Bracket Point (Rear) |
| Handles | 1x Each Side |
| Cooling | Convection |
| Environmental Resistance | No |
| Construction Material | Metal Grille, Plywood |
| Certifications | COE |
| Dimensions | 19.8 x 27.6 x 24.5" / 50.3 x 70.1 x 62.2 cm |
| Weight | 107.4 lb / 48.7 kg |
In The Box
- RCF HDL 38-AS 3200W Active Flyable Subwoofer Module (Black)
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: RCF HDL 38-AS 3200W Active Flyable Subwoofer Module (Black)
- Manufacturer: RCF
- Model: HDL38AS
- SKU: HDL38-AS
- RM Product #: 120471
