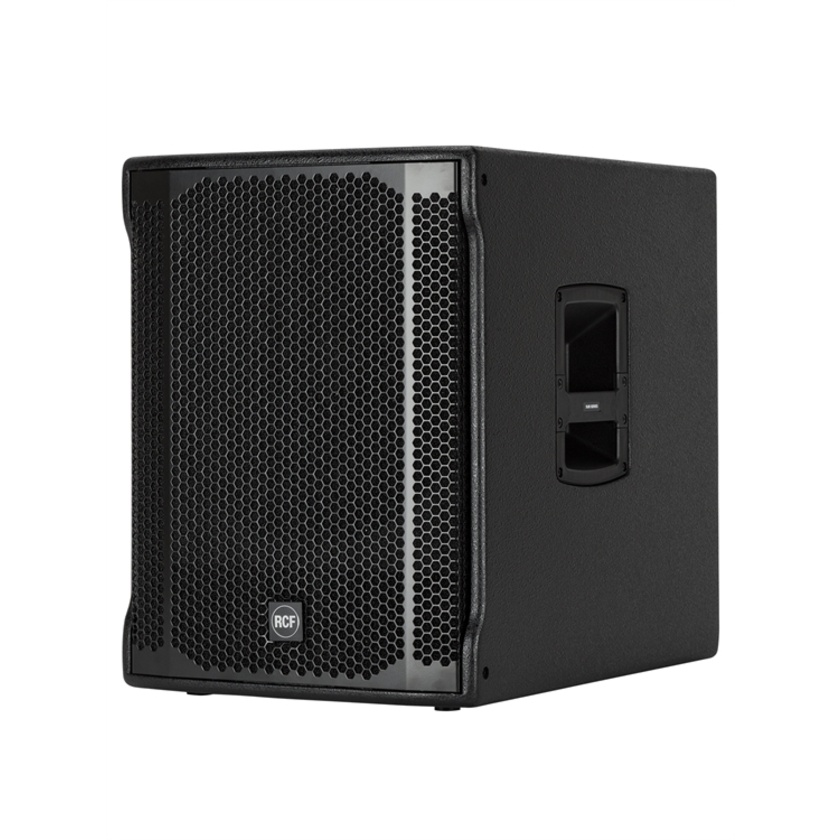

RCF SUB 705-AS MK3 15" Active Subwoofer

Product #50509 | SKU 13000455 | RCF
Contact us for an ETA what does this mean?
Our Price $2,699.00
Contact us for an ETA what does this mean?
- +

Email me when stock arrives


Features

  • For Small to Midsize Venues
  • Great for Portable Applications
  • 1400W Class-D Amplifier
  • 15" Woofer, 3" Voice Coil
  • Stereo Crossover, Switchable Frequencies
  • 131 dB Max SPL

Description

Designed to complement the ART-Series or any full-range speaker, the RCF SUB 705-AS MK3 15" Active Subwoofer is a portable 15" high-powered active subwoofer that is suitable for bands, DJs, clubs, touring companies, and rental houses.

Features and Specifications

The subwoofer is equipped with an integrated amplifier that delivers 1400W peak power to the 15" driver. It offers a frequency range of 40 to 120 Hz, providing powerful and deep bass. With a maximum SPL of 131 dB, the SUB 705-AS MK3 is capable of filling small to midsized venues with rich and immersive low frequencies.

The rear panel of the subwoofer features intuitive controls, including volume, AEQ (Audio Equalization), polarity, and crossover frequency selection. These controls allow users to fine-tune the sound to their preference and adapt it to different environments.

The SUB 705-AS MK3 is built with a rugged all-wood cabinet that is coated with a scratch-resistant polyurea material. This durable construction ensures that the subwoofer can withstand the rigors of travel and perform reliably in various settings. Additionally, its portable design makes it easy to carry and install securely wherever it is needed.

Whether you are a professional musician, sound engineer, or event organizer, the RCF SUB 705-AS MK3 offers a reliable and powerful solution for adding impactful low frequencies to your sound system.

Specifications

Key Specs
Configuration Active Subwoofer
Enclosure Type Subwoofer
Total Power Capacity 700 W RMS
1400 W Peak
HF Driver No
MF Driver No
LF Driver 1x 15" / 381 mm Inverted Woofer
Wireless Connectivity No
Colour Black
Enclosure Type Subwoofer
Total Power Capacity 700 W RMS
1400 W Peak
Amplifier Class Class-D
Drivers
HF Driver No
MF Driver No
LF Driver 1x 15" / 381 mm Inverted Woofer
LF Voice Coil 3" / 76.2 mm
Performance
Frequency Response 40 Hz to 120 Hz
Maximum SPL 131 dB
Input Sensitivity +4 dBu to -2 dB
Protections RMS, Thermal
Connectivity
Audio I/O 2x XLR 3-Pin Female Balanced/Unbalanced Link Input
2x XLR 3-Pin Male Balanced/Unbalanced Link Output
Network I/O No
USB I/O No
Wireless Connectivity No
Bluetooth No
Mobile App Compatible No
Signal Processing
Crossover Low-Pass:
80 Hz
High-Pass:
110 Hz
AEQ Yes
Parametric AEQ No
Semi-Parametric AEQ No
Dynamic Processing Soft Limiter
Alignment Delay No
Phase Adjustment Yes
Power
AC Input Power 100 to 120 VAC, 50 / 60 Hz
220 to 240 VAC, 50 / 60 Hz
AC Power I/O 1x IEC Input
Physical
Colour Black
Mounting 1 x 1.4" / 35 mm Pole Socket (Top)
Handles 2x Side
Construction Material Plywood, Steel
Dimensions 23.5 x 23.2 x 16.4" / 59.7 x 58.9 x 41.7 cm
Weight 60.6 lb / 27.5 kg

In The Box

  • RCF SUB 705-AS MK3 15" Active Subwoofer
  • Power Cable Cable
