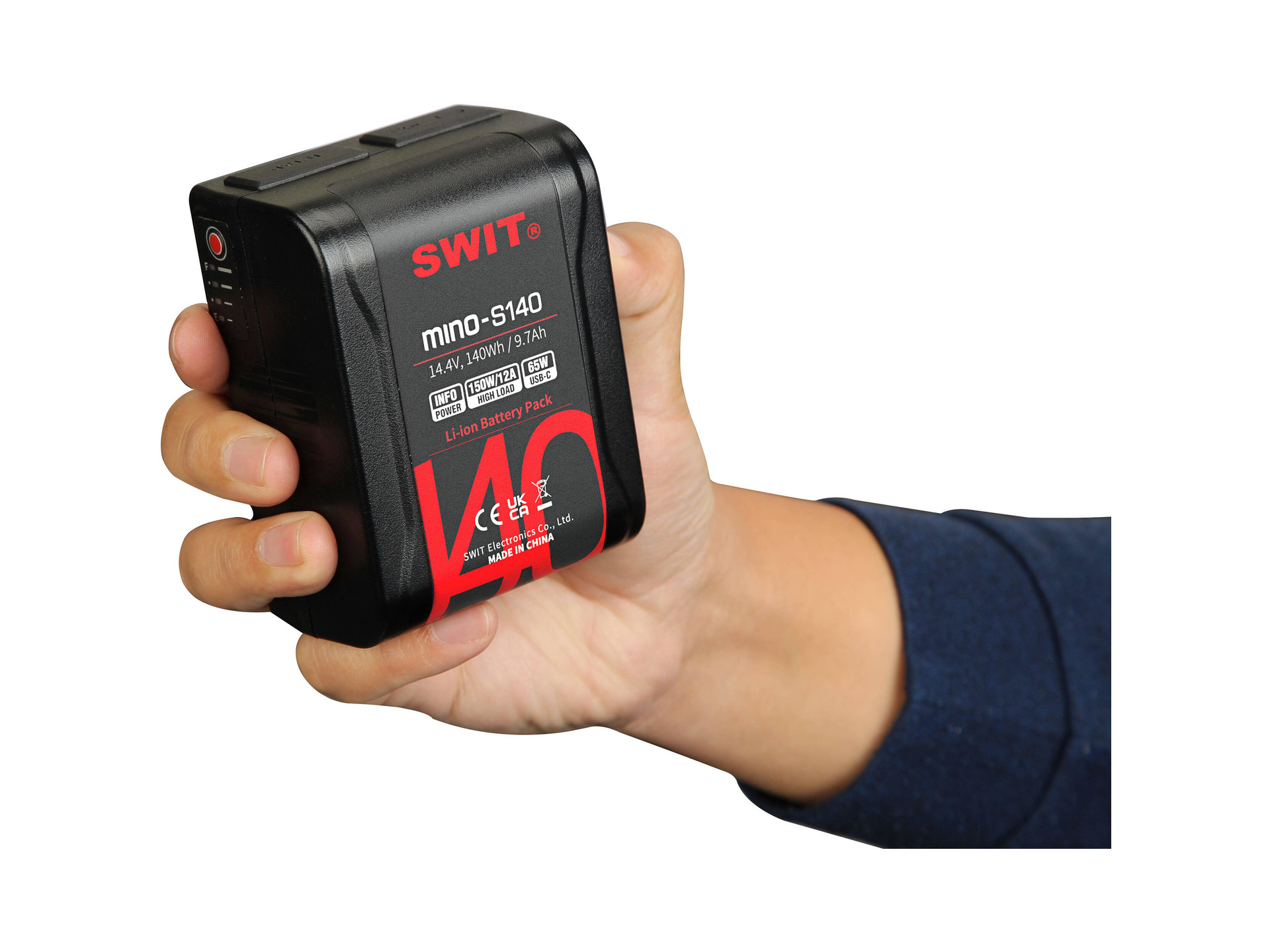

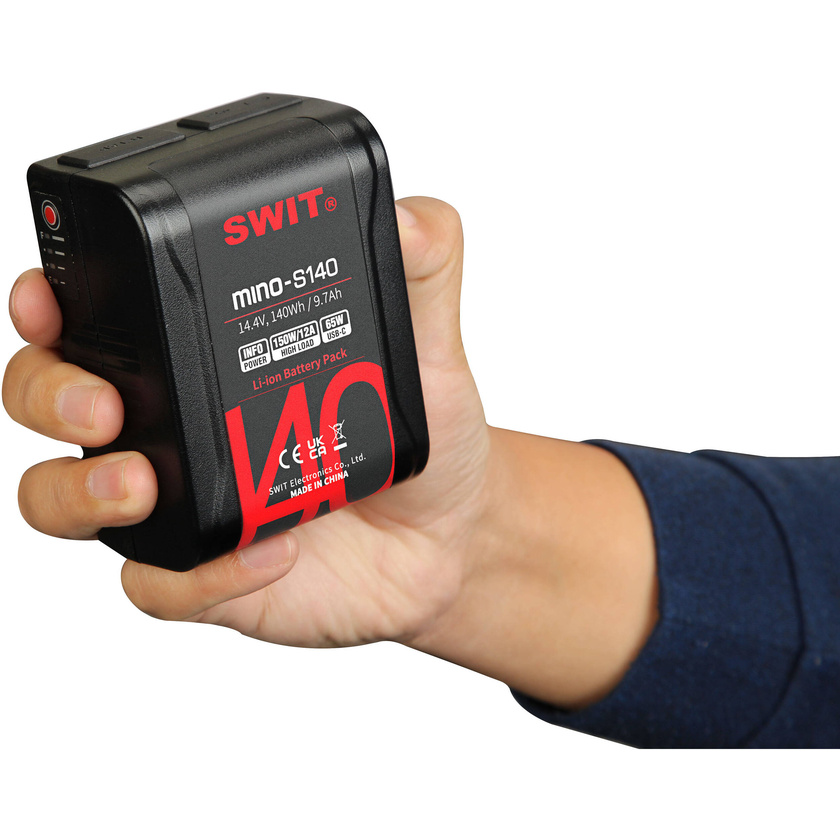

SWIT 140Wh Pocket Battery with D-Tap and USB Outputs (V-Mount)

Product #114007 | SKU MINO-S140 | SWIT
Usually ships in 10 - 12 weeks what does this mean?
Our Price $509
Usually ships in 10 - 12 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 10 - 12 weeks. Deliver to Auckland for $18 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 10 - 12 weeks
Click & Collect

Features

  • Compact 140Wh Li-Ion V-Mount Battery
  • D-Tap, USB Type-A & Type-C Outputs
  • D-Tap & USB Type-C Also Charge Inputs
  • Up to 12A Continuous Load
  • Wire-Free Internals, Circuit Protection
  • 4-Stage Status LEDs

Description

Add an ultracompact professional battery to power your rig with the SWIT 140Wh Pocket Battery with D-Tap and USB Outputs. This V-mount battery offers a large 140Wh capacity and a maximum load of 12A, all while maintaining a small size that is perfect for small rigs like gimbals and drones.

You have multiple options for powering your camera and accessories with this battery. It includes a D-Tap output, a USB Type-A output, and a USB Type-C output. Additionally, both the D-Tap and USB Type-C ports can be used as inputs for charging the battery. The battery also includes a 4-LED gauge that displays the remaining battery capacity, and this information can be transmitted to Sony and RED camera displays. Furthermore, the battery is designed without internal wiring and has built-in circuit protection for added safety.

Specifications

Mount / Series Type V-Mount
Chemistry Lithium-Ion
Battery Capacity 9700 mAh / 140 Wh
Output Voltage 14.4 VDC
Maximum Load 12 A
Accessory I/O 1x D-Tap / P-Tap Input/Output 150 W, 12 A Out / 16.8 V, 3 A Out Regulated
1x USB-A Output 5 V, 2 A Regulated
1x USB-C Input/Output 65 W Out, 48 W In Regulated
USB Output 5 V
Charging Temperature 32 to 104°F / 0 to 40°C
Discharging Temperature -4 to 122°F / -20 to 50°C
Dimensions (W x H x D) 4.1 x 3.1 x 2.2" / 105 x 79 x 55.5 mm
Weight 1.6 lb / 713 g

In The Box

  • SWIT 140Wh Pocket Battery with D-Tap and USB Outputs (V-Mount)

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: SWIT 140Wh Pocket Battery with D-Tap and USB Outputs (V-Mount)
  • Manufacturer: SWIT
  • Model: MINO-S140
  • SKU: MINO-S140
  • RM Product #: 114007
  • Battery Mount / Series: V-Mount
  • Batteries / Chargers: Batteries Only
  • Wattage / mAh: 9700 mAh
  • Battery: Lithium-Ion
  • Warranty: 1 year manufacturer warranty. Batteries over 100Wh - 2 year manufacturer warranty
