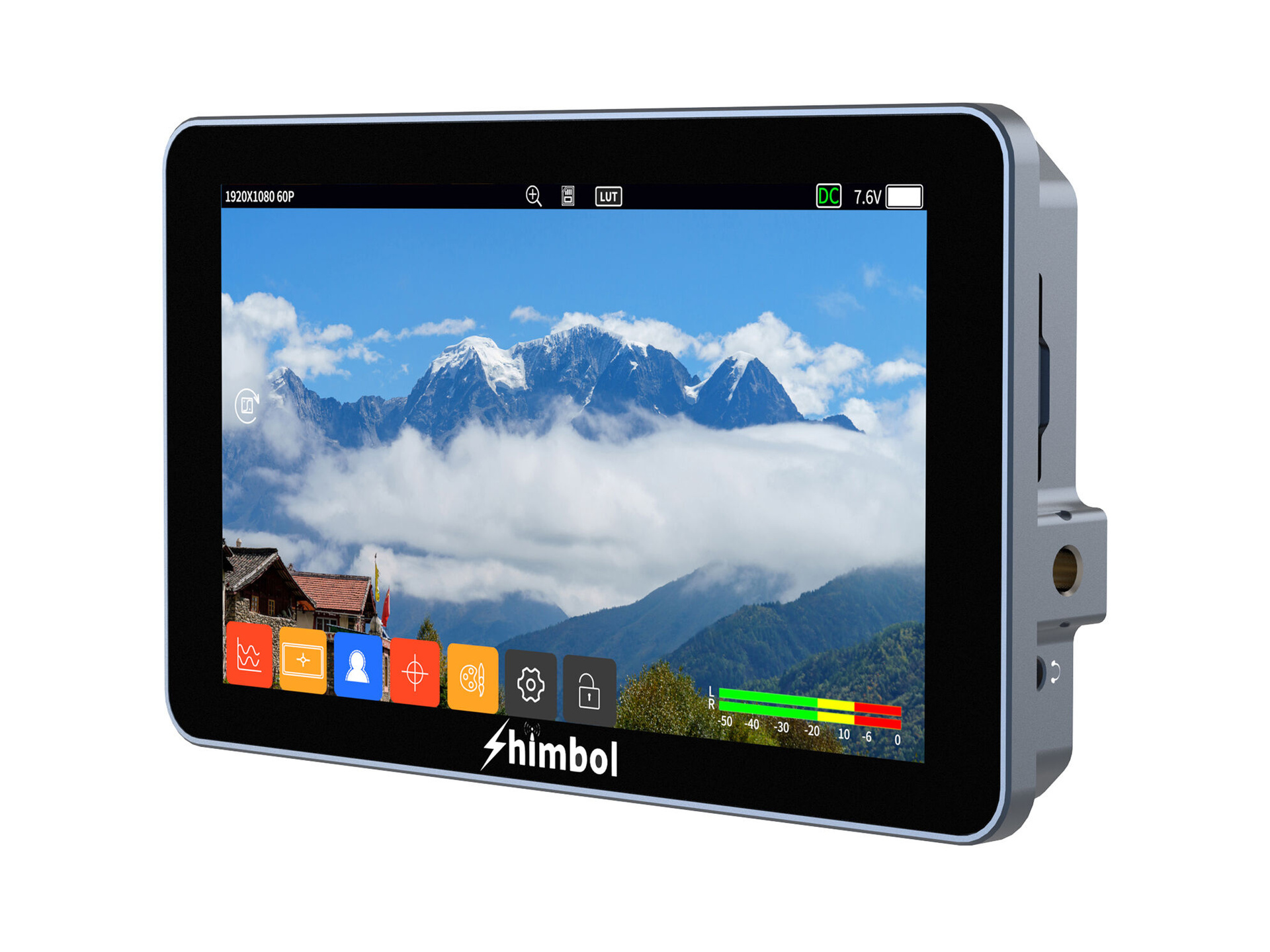

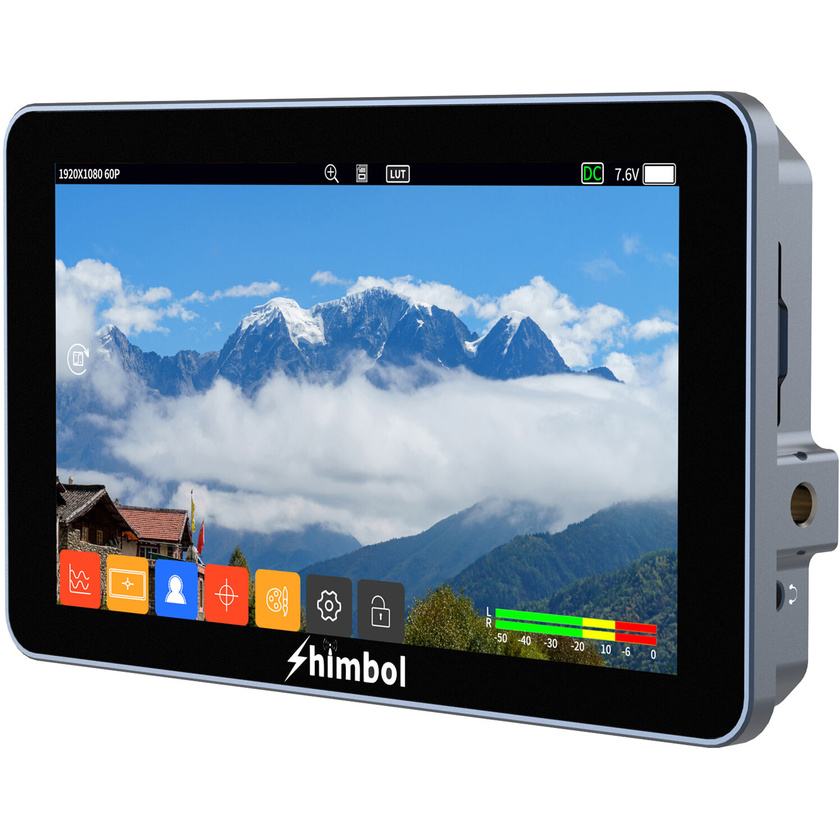

Monitor your 4K HDR video with the Shimbol M5 5.5" 3D LUT 4K HDMI HDR Touchscreen Monitor. This monitor offers a brightness of 1200 nits and a contrast ratio of 1000:1. The IPS screen provides wide viewing angles of up to 160 degrees. It also features a built-in HLG mode and PQ support. The M5 monitor is calibrated to cover 100% of the Rec. 709 colour space, ensuring accurate color monitoring with a low Delta E of 0.6. It supports resolutions of up to DCI 4K25 or UHD 4K30. Additionally, it comes equipped with extensive monitoring tools, including 17- and 33-cube 3D LUT monitoring. Its aluminium housing is designed for passive cooling, making it lightweight, quiet, and capable for use on-camera.
Shimbol M5 5.5" 3D LUT 4K HDMI HDR Touchscreen Monitor
In stock
Ships tomorrow
Shipping & Availability
Ships tomorrow.
Deliver to
Auckland
for $8.90
Change location
Click & Collect Availability
Wellington
Out of stock.
Pickup in
2 - 3 working days
Click & Collect
Features
- 1920 x 1080 Touchscreen Display
- Up to DCI 4K25 and UHD 4K30 HDMI Input
- 1200 cd/m² Brightness
- HDR Monitoring, 3D LUT Support
- Scope, Marker, Focus, Exposure Tools
- Backlight, RGB, Temperature Adjustment
Description
Specifications
| Key Specs | |
| Display Size | 5.5" / 14.0 cm |
| Native Resolution | 1920 x 1080 |
| Touchscreen | Yes |
| HDR Support | Yes |
| Video I/O | 1x HDMI 1.4 Input 1x HDMI 1.4 Output |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC |
| Video Format | HDMI DCI 4K: 25/24/23.98 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Battery Type | 1x L-Series |
| Power Consumption | 6.5 W (Maximum) |
| Mounting | 2x 1/4"-20 Female |
| Display | |
| Panel Type | IPS-Type LCD |
| Display Size | 5.5" / 14.0 cm |
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 160° Vertical: 160° |
| Touchscreen | Yes |
| Maximum Brightness | 1200 nits / cd/m2 |
| Contrast Ratio | 1000:1 |
| HDR Support | Yes |
| Pixels Per Inch (ppi) | 400 ppi |
| Image Controls | Cheque Field, Colour Temperature Selection, Customisable Aspect Ratios, False Colour, Histogram, Waveform, Zebra |
| Inputs / Outputs | |
| Video I/O | 1x HDMI 1.4 Input 1x HDMI 1.4 Output |
| Embedded Audio | HDMI |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | 1x Barrel Input |
| Other I/O | No |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Format Support | |
| Video Format | HDMI DCI 4K: 25/24/23.98 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Gamma Curve | HDR-HLG, HDR-PQ |
| Power | |
| Input Power | 6.5 to 16.8 VDC |
| Battery Type | 1x L-Series |
| Power Consumption | 6.5 W (Maximum) |
| Mounting | 2x 1/4"-20 Female |
| General | |
| Environmental Resistance | No |
| Operating Conditions | 14 to 104°F / -10 to 40°C |
| Storage Conditions | -4 to 140°F / -20 to 60°C |
| Material of Construction | Aluminium |
| Dimensions | 5.8 x 3.4 x 1" / 146.6 x 87.6 x 26.5 mm |
| Weight | 0.6 lb / 283.5 g |
In The Box
- Shimbol M5 5.5" 3D LUT 4K HDMI HDR Touchscreen Monitor
- HDMI Cable
- Micro-HDMI Cable
- Screen Protector
- Cleaning Cloth
- Carry Case
