Shure BLX288/PG58 Dual-Channel Wireless Handheld Microphone System with PG58 Capsules (M17: 662 - 686 MHz)

Product #75044 | SKU BLX288-PG58-M17 | Shure
In stock Ships Monday
Our Price $1,579
In stock Ships Monday
- +

this item may be nonreturnable
Shipping & Availability
Ships Monday. Deliver to Auckland for $15 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 3 working days
Click & Collect

Features

  • For Two Presenters or Performers
  • 2 x PG58 Cardioid Mic/Transmitters
  • Dual-Channel Tabletop Receiver
  • 123 Auto-Scan Frequencies
  • Internal Antenna Diversity

Related Products


Description

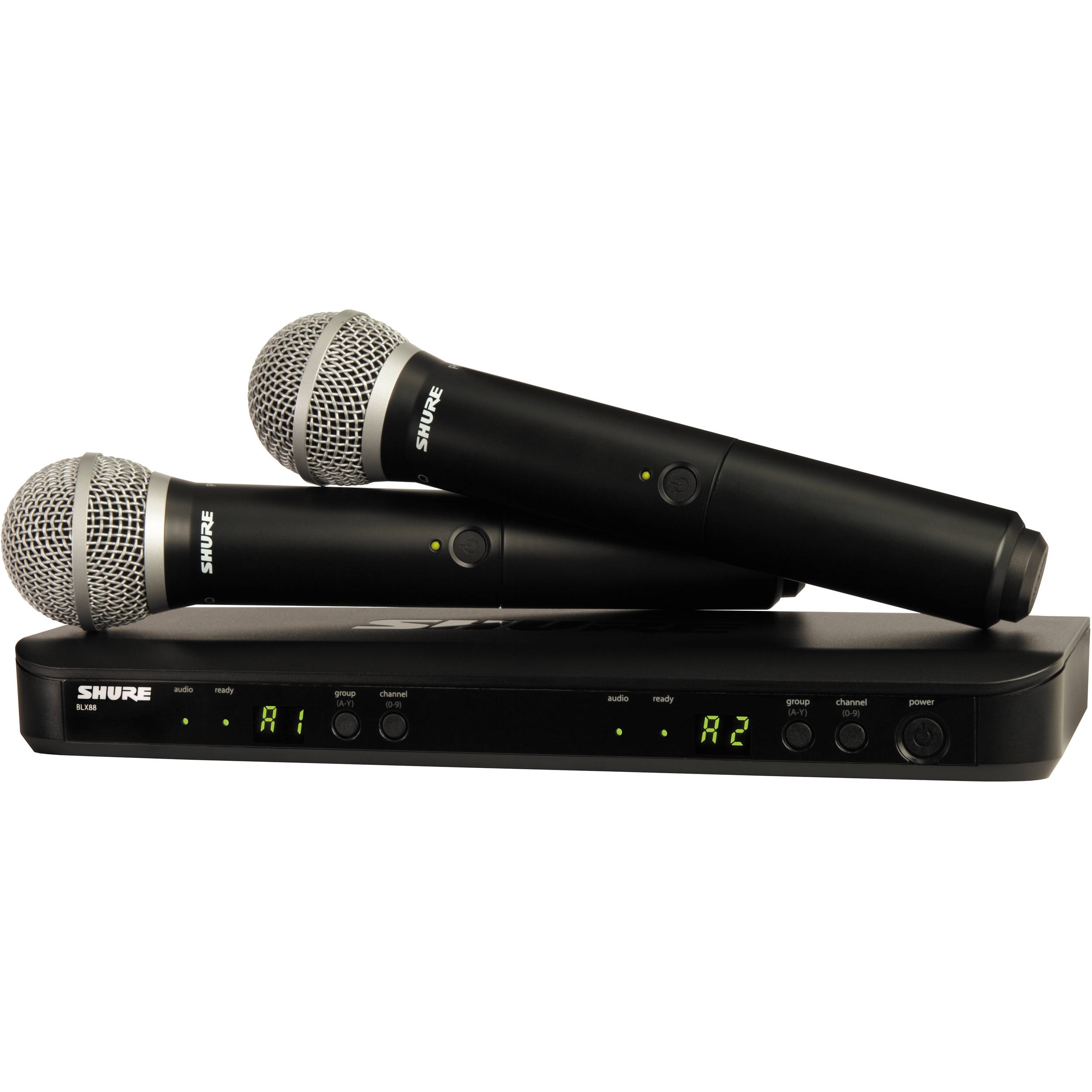

The Shure BLX288/PG58 Dual-Channel Wireless Handheld Microphone System with PG58 Capsules (M17: 662 - 686 MHz) is a cost-effective wireless handheld microphone system for two presenters, teachers, or lecturers which offers quality sound, simple setup, and dependable performance right out of the box. It includes the compact and lightweight BLX88 dual-channel tabletop receiver with internal antennas, ideal for portable use.

The BLX288/PG58 also includes two handheld transmitters equipped with an integrated PG58 dynamic cardioid microphone capsule. The receiver features one-touch QuickScan frequency selection to quickly search 123 available frequencies and locate a clean RF channel in case of interference. The system provides up to 14 hours of continuous use with four AA batteries, at a range up to 300'. Up to 12 mic channels can operate simultaneously in each frequency band.

This streamlined system is well suited for live performances and events in small venues, wedding halls, and houses of worship, as well as conference, educational, and corporate facilities.

PG58 Mic Capsules Optimised for Vocals and Speech

The PG58 dynamic capsules feature a cardioid polar pattern that minimises background noise and feedback. The built-in spherical wind and pop filters reduce plosives for clear and intelligible speech.

Lightweight Handheld Transmitters

The durable BLX2 handheld transmitters offer a lightweight, ergonomic design, and are comfortable to hold. Group- and channel-selection buttons allow for quick and simple frequency matching with the receiver. Other features include an easily accessible on/off button, adjustable gain control, and a black identification cap. The WA621 Colour ID Caps kit containing assorted coloured caps is available as an optional accessory.

Easy-to-Use Dual-Channel Tabletop Receiver for Quality Audio

The BLX88 receiver employs a microprocessor-controlled internal antenna diversity feature to improve the quality and reliability of your wireless audio. Two LED displays show group and channel settings, while four LED lights indicate when the system is ready for use and the strength of the incoming audio signal. The unit offers two 1/4" and two XLR outputs for connectivity to PA systems and mixing boards.

A Versatile System to Meet Your Needs

Shure offers a BLX1 bodypack transmitter compatible with a variety of lavalier, instrument, and headset microphone options to adapt your BLX system as your needs evolve.

  • The discrete MX153 sub-miniature earset mic and the CVL lavalier mic both provides exceptional clarity in spoken word applications.
  • The PGA31 is a comfortable, durable headset microphone for active performance.
  • Instrumentalists can attach the WB98H/C flexible gooseneck instrument microphone for brass, woodwind, and percussion applications.
  • The WA302 guitar cable lets you connect the bodypack transmitter to a guitar or bass.

Specifications

System
Wireless Transmission Analogue UHF
Number of RF Channels 123
Included Transmitters 2 x Handheld
Diversity Antenna Diversity
RF Frequency Band M17: 662 - 686 MHz
RF Bandwidth 24 MHz
RF Channel Scanning Auto-Scan
Max Operating Range 300' / 91.4 m (Line of Sight)
Max Systems per Setup 12
Dynamic Range 100 dBA
Receiver
Form Factor Tabletop
Mounting Options Tabletop
Antenna 2 x Internal
Number of Audio Channels 2
Audio I/O 2 x XLR 3-Pin Male Balanced Output
2 x 1/4" TS Female Unbalanced Output
Audio Output Level XLR Outputs:
-27 dBV (Mic Level)
1/4" Outputs:
-13 dBV (Instrument Level)
Frequency Response 50 Hz to 15 kHz (Dependant on Mic)
Impedance XLR Outputs:
200 Ohms
1/4" Outputs:
50 Ohms
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 12 to 15 VDC at 160 mA, Centre-Positive (Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Display & Indicators 2 x Multi-Segment LED (Channel, Group)
4 x LED (AF Level, Sync)
Housing ABS
Operating Temperature 0 to 135°F / -17 to 57°C
Dimensions 15.3 x 1.6 x 4.6" / 388 x 40 x 116 mm
Weight 15.1 oz / 429 g
Transmitter
Form Factor Handheld
RF Output Power 10 mW
Audio I/O None
Muting Off/On Switch
Auto-Level Control No
Gain Range -20 to -10 dB
Sync Method Manual
Antenna 1 x Internal (Handheld)
Power Requirements Battery
Battery Type 2 x AA (Included)
Approx. Battery Life 14 Hours (Alkaline)
Display & Indicators 1 x Multi-Segment LED (Channel, Group)
1 x LED (Battery Status, Power)
Housing ABS
Dimensions 2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm
Weight 7.7 oz / 218 g (without Batteries)
Microphone
Form Factor Handheld Capsule
Sound Field Mono
Capsule Dynamic
Polar Pattern Cardioid
Frequency Range 50 Hz to 16 kHz
Sensitivity -55 dBV/Pa at 1 kHz

In The Box

  • Shure BLX288/PG58 Dual-Channel Wireless Handheld Microphone System with PG58 Capsules (M17: 662 - 686 MHz)
  • Shure BLX88 Dual-Channel Tabletop Wireless Receiver (M17: 662 - 686 MHz)
  • Shure BLX2/PG58 Handheld Wireless Microphone Transmitter with PG58 Capsule (M17: 662 - 686 MHz)
  • Microphone Clips
  • Shure PS24AZ Power Supply for Select Wireless Receivers
  • AA Batteries
