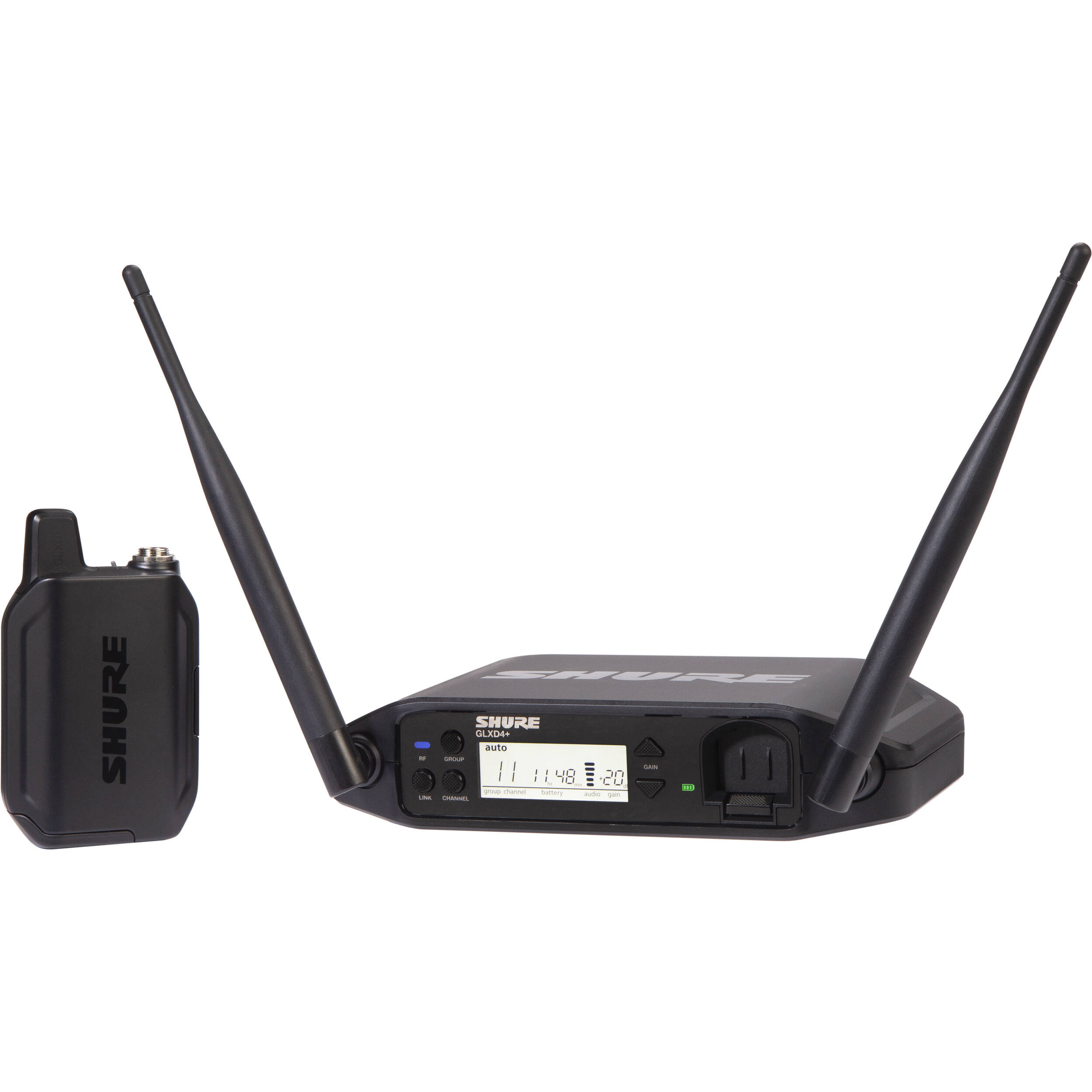

Shure GLXD14+ Dual-Band Wireless Guitar System

Name: Shure GLXD14+ Dual-Band Wireless Guitar System
Brand: Shure
SKU: 103432
Price: 1299.00 NZD
Availability: BackOrder

Product #103432 | SKU GLXD14+ | Shure

| Write a review

Usually ships in 4 - 6 weeks what does this mean?

Shure GLXD14+ Dual-Band Wireless Guitar System

Our Price $1,299

Usually ships in 4 - 6 weeks what does this mean?

Email me when stock arrives

Request price match

Talk to our experts

Shipping & Availability

Usually ships in 4 - 6 weeks. Deliver to Auckland for $12 Change location

Click & Collect

Check availability

Features

For Performers & Musicians
WA302 Guitar Cable
Lightweight Bodypack Transmitter
Portable Tabletop Receiver
Auto Scans 2.4 and 5.8 GHz Frequencies
Easy Setup with Auto Pairing

Description Specifications In The Box

Description

Shure GLXD4R+ Digital Wireless Dual Band Half-Rack Receiver

The new GLXD4+ Dual Band Rack Receiver delivers exceptional digital audio clarity. In combination with the new GLXD+ Dual Band Frequency Manager provides seamless operation with advanced RF performance.

Shure GLXD1+ Dual-Band Wireless Bodypack Transmitter

The Shure GLXD1+ Dual-Band Wireless Bodypack Transmitter has rugged, metal construction with ergonomic design and reversible belt clip to fit comfortably and snugly in various positions. Compatible with instrument cable, and a variety of headset and lavalier microphone options. This bodypack is compatible with all GLX-D+ systems and features a TA4F connector for your microphone or specialty instrument cable.

Key Features

For Performers & Musicians
WA302 Guitar Cable
Lightweight Bodypack Transmitter
Portable Tabletop Receiver
Auto Scans 2.4 and 5.8 GHz Frequencies
Easy Setup with Auto Pairing

Specifications


System
Wireless Technology	Digital 2.4 GHz/5.8 GHz
Included Transmitters	1 x Bodypack
Diversity	True Digital Diversity
RF Channel Scanning	Auto-Scan
Max Operating Range	30.5 m (Line of Sight)
Max Transmitters per Band	8
Mobile App Compatible	No *As of February, 2023: Cheque with manufacturer for the most up-to-date compatibility
Dynamic Range	120 dBA
Modulation	Proprietary
Receiver
Receiver Type	Tabletop
Antenna	2 x 1/2 Wave Sleeve Dipole, Fixed (Front-Mount)
Number of Audio Channels	1
Audio I/O	1 x XLR 3-Pin Male Balanced Output 1 x 1/4" TRS Female Balanced Output
Gain Range	-20 to +40 dB (1 dB Steps)
Audio Output Level	XLR Output: +1 dBV 1/4" Output: +8.5 dBV
Frequency Response	20 Hz to 20 kHz (Dependant on Mic)
USB/Lightning Connectivity	1 x USB-C Female (Firmware Update)
Impedance	XLR Output: 100 Ohms (Balanced) 1/4" Output: 100 Ohms (Balanced) 50 Ohms (Unbalanced)
Approximate RF Sensitivity	-88 dBm
Spurious	Rejection: >35 dB
Power Requirements	AC/DC Power Adapter
AC/DC Power Adapter	14.5 to 17 VDC at 600 mA (Included)
AC Input Power	100 to 240 VAC, 50 / 60 Hz
Display & Indicators	1 x Backlit LCD (AF Level, Channel, Frequency, Group, Transmitter Battery Status)
Housing	ABS
Operating Temperature	32 to 113°F / 0 to 45°C
Dimensions	7.2 x 1.6 x 4.8" / 183 x 40 x 122 mm
Weight	310 g
Transmitter
Transmitter Type	Bodypack
RF Output Power	10 mW (EIRP)
Audio I/O	1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)
Pad	None
Muting	Off/On Switch
Audio Input Level	-8.4 dBV / 7.5 V p-p
Gain Range	-18 to +42 dB (1 dB Steps)
Sync Method	Proprietary
Antenna	1 x Internal, Fixed (Beltpack)
Power Requirements	Battery
Battery Type	1 x Shure SB904 (Included, Replaceable)
Internal Battery Capacity	2420 mAh
Battery Charging Time	.25 to 3 Hours
Approx. Battery Life	12 Hours (Lithium Rechargeable)
USB/Lightning I/O	1 x USB-C (Charging)
Display & Indicators	1 x LED (Battery Status, Sync)
Housing	Metal
Dimensions	2.6 x 4.5 x 1.1" / 67 x 115 x 28.5 mm
Weight	153.1 g (without Batteries)

In The Box

Shure GLXD14+ Dual-Band Wireless Guitar System
Shure GLXD4+ Dual-Band Wireless Tabletop Receiver
Shure GLXD1+ Dual-Band Wireless Bodypack Transmitter
Shure WA302 1/4" Instrument to TA4F Cable for Shure Bodypack Transmitters
Carrying Case

Reviews

(no ratings yet)

Own or use this product?
Give it a quick rating:

Share your thoughts with other customers:
Write a review

Details

Product: Shure GLXD14+ Dual-Band Wireless Guitar System
Manufacturer: Shure
Model: GLXD14+
SKU: GLXD14+
RM Product #: 103432
Warranty: 2 year manufacturer warranty (excluding consumable e.g. lithium-ion batteries).
