The Shure GLXD14R+ Dual-Band Cardioid Wireless Presenter Rack System is a user-friendly digital wireless lavalier microphone system that delivers exceptional sound quality for hassle-free, hands-free audio. Even if you have limited experience with wireless systems, this package offers simplicity and ease of use. With Shure's cutting-edge technology, the setup process is taken care of for you. Through automatic scanning of the 2.4 frequency ranges, this system ensures optimal digital transmission channel selection, guaranteeing reliable performance for your presentations, broadcasts, interviews, and events. With an effective range of up to 100' indoors and 65' outdoors, the Shure GLXD14R+ is a trusted choice.

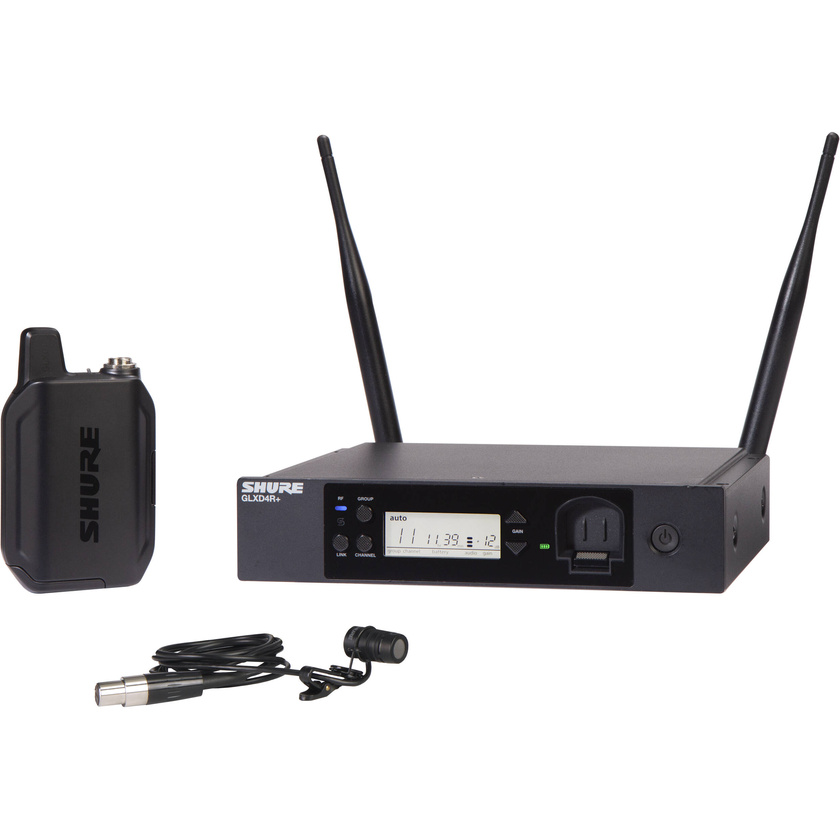

Shure GLXD14R+ Dual-Band Cardioid Wireless Presenter Rack System (2.4GHz)
Special Order
Features
- For Presenters and Broadcasters
- WL185m Cardioid Lavalier Microphone
- Lightweight Bodypack Transmitter
- Metal Half-Rack Receiver
- Auto Scans 2.4 Frequencies
- Easy Setup with Auto Pairing
Description
Specifications
| Key Specs | |
| Wireless Technology | Digital 2.4 GHz |
| Included Transmitters | 1x Bodypack |
| Diversity | True Digital Diversity |
| Max Operating Range | 100' / 30.5 m (Line of Sight) |
| Receiver Type | Rackmount |
| Microphone Type | Lavalier |
| Polar Pattern | Cardioid |
| System | |
| Wireless Technology | Digital 2.4 GHz/5.8 GHz |
| Included Transmitters | 1x Bodypack |
| Diversity | True Digital Diversity |
| RF Frequency Band | Z3: 2400 to 2483.5 MHz / 5725 to 5850 MHz |
| RF Bandwidth | 208.5 MHz |
| RF Channel Scanning | Auto-Scan |
| Max Operating Range | 100' / 30.5 m (Line of Sight) |
| Max Transmitters per Band | 8 |
| Built-In Recorder | No |
| Timecode Support | No |
| Mobile App Compatible | No |
| Latency | 4.5 to 8 ms |
| Dynamic Range | 120 dBA |
| Modulation | Proprietary |
| Receiver | |
| Receiver Type | Rackmount |
| Mounting Options | Rackmount (with Included Hardware) |
| Rackmount Size | 1 RU (1/2 Rack) |
| Antenna | 2x 1/2 Wave Sleeve Dipole, Detachable (Rear-Mount) |
| Number of Audio Channels | 1 |
| Built-In Microphone | No |
| Audio I/O | 1x XLR 3-Pin Male Balanced Mic/Line Output 1x 1/4" TRS Female Balanced Output |
| Audio Output Level | XLR Output: +18 dBV (Line Level) -12 dBV (Mic Level) 1/4" Output: +12 dBV (Balanced) |
| Phantom Power Protection | On 1/4", XLR Outputs |
| Frequency Response | 20 Hz to 20 kHz (Dependant on Mic) |
| Network I/O | No |
| Word Clock I/O | No |
| USB/Lightning Connectivity | 1x USB-C Female (Firmware Update) |
| USB Class-Compliant | No |
| Impedance | XLR Output: 100 Ohms (Balanced) 1/4" Output: 100 Ohms (Balanced) 50 Ohms (Unbalanced) |
| RF Output Power | 10 mW (EIRP, Max) |
| Spurious | Rejection: >35 dB |
| Power Requirements | AC/DC Power Adapter |
| AC/DC Power Adapter | 14.5 to 17 VDC at 600 mA (Included) |
| Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Display & Indicators | 1x Backlit LCD (AF Level, Channel, Frequency, Group, Transmitter Battery Status) |
| Housing | Metal |
| Operating Temperature | 32 to 113°F / 0 to 45°C |
| Dimensions | 7.8 x 1.7 x 6.4" / 197 x 42 x 163 mm (without Antennas) |
| Weight | 30.5 oz / 866 g |
| Transmitter | |
| Transmitter Type | Bodypack |
| RF Output Power | 10 mW (EIRP) |
| Built-In Microphone | No |
| Audio I/O | 1x TA4/Mini-XLR 4-Pin Male Unbalanced Input (Locking) |
| Plug-In Power | 5 V |
| Pad | No |
| Muting | Off/On Switch |
| Audio Input Level | -8.4 dBV / 7.5 V p-p |
| Auto-Level Control | No |
| Gain Range | -18 to +42 dB (1 dB Steps) |
| Sync Method | Proprietary |
| Antenna | 1x Internal, Fixed (Beltpack) |
| Power Requirements | Battery |
| Battery Type | 1x Shure SB904 (Included, Replaceable) |
| Internal Battery Capacity | 2420 mAh |
| Battery Charging Time | .25 to 3 Hours |
| Approx. Battery Life | 12 Hours (Lithium Rechargeable) |
| USB/Lightning I/O | 1x USB-C (Charging) |
| Display & Indicators | 1x LED (Battery Status, Sync) |
| Housing | Metal |
| Dimensions | 2.6 x 4.5 x 1.1" / 67 x 115 x 28.5 mm (without Antennas) |
| Weight | 5.4 oz / 153.1 g (without Batteries) |
| Microphone | |
| Form Factor | Lavalier |
| Compatible Transmitters | Shure: Axient AD1, Axient ADX1, Axient AXT100, BLX1, GLXD1, MXW1, PGXD1, QLXD1, SLX1, SLXD1, ULX1, ULXD1 |
| Polar Pattern | Cardioid |
| Frequency Range | 70 Hz to 20 kHz |
| Maximum SPL | 140.5 dB SPL (1% THD) |
| Output Connector | 1x TA4F/Mini-XLR 4-Pin Female |
| Power Sources | Plug-In Power |
| Colour | Black |
| Microphone | |
| Form Factor | Lavalier |
| Compatible Transmitters | Shure: Axient AD1, Axient ADX1, Axient AXT100, BLX1, GLXD1, MXW1, PGXD1, QLXD1, SLX1, SLXD1, ULX1, ULXD1 |
| Intended Sound Sources | Vocals, Speech/Voice-Over |
| Sound Field | Mono |
| Element Type | 1x Electret Condenser |
| Polar Pattern | Cardioid |
| Included Tone Caps | No |
| Performance | |
| Frequency Range | 70 Hz to 20 kHz |
| Maximum SPL | 140.5 dB SPL (1% THD) |
| Sensitivity | -43 dBV/Pa |
| Dynamic Range | 120.5 dB |
| Signal-to-Noise Ratio | 74 dB |
| Connectivity | |
| Output Connector | 1x TA4F/Mini-XLR 4-Pin Female |
| Cable Length | 4' / 1.22 m |
| Power | |
| Power Sources | Plug-In Power |
| Operating Voltage | 5 V (Plug-In Power) |
| Physical | |
| Colour | Black |
| Construction Material | Aluminium |
| Dimensions | ø: 0.5 x L: 0.53" / ø: 12.74 x L: 13.55 mm |
| Weight | 0.7 oz / 20 g (with Cable) |
In The Box
- Shure GLXD14R+ Dual-Band Cardioid Wireless Presenter Rack System (2.4GHz)
- Shure GLXD4R+ Dual-Band Wireless Rack Receiver (2.4GHz)
- Shure GLXD1+ Dual-Band Wireless Bodypack Transmitter (2.4GHz)
- Shure WL185m Cardioid Lavalier Microphone with TA4F Connector (Black)
- Carrying Case
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Shure GLXD14R+ Dual-Band Cardioid Wireless Presenter Rack System (2.4GHz)
- Manufacturer: Shure
- Model: GLXD14R+-85M
- SKU: GLXD14R+-85M
- RM Product #: 118611
- Length Meters: 1.2 m
- Length Feet: 3.94 ft
- Warranty: 2 year manufacturer warranty (excluding consumable e.g. lithium-ion batteries).
