Shure GLXD16+ Dual-Band Wireless Guitar Pedal System

Name: Shure GLXD16+ Dual-Band Wireless Guitar Pedal System
Brand: Shure
SKU: 103433
Price: 1379.00 NZD
Availability: InStock

Product #103433 | SKU GLXD16+ | Shure

| Write a review

In stock Ships Monday

Shure GLXD16+ Dual-Band Wireless Guitar Pedal System

Our Price $1,379

In stock Ships Monday

this item may be nonreturnable

Request price match

Talk to our experts

Shipping & Availability

Ships Monday. Deliver to Auckland for $8^.90 Change location

Click & Collect

Check availability

Features

For Guitar and Bass Players
WA305 Guitar Cable
Lightweight Bodypack Transmitter
Stompbox-Style Pedal Receiver
Pedalboard-Ready for Wired Tuner Use
Auto Scans 2.4 and 5.8 GHz Frequencies

Description Specifications In The Box

Description

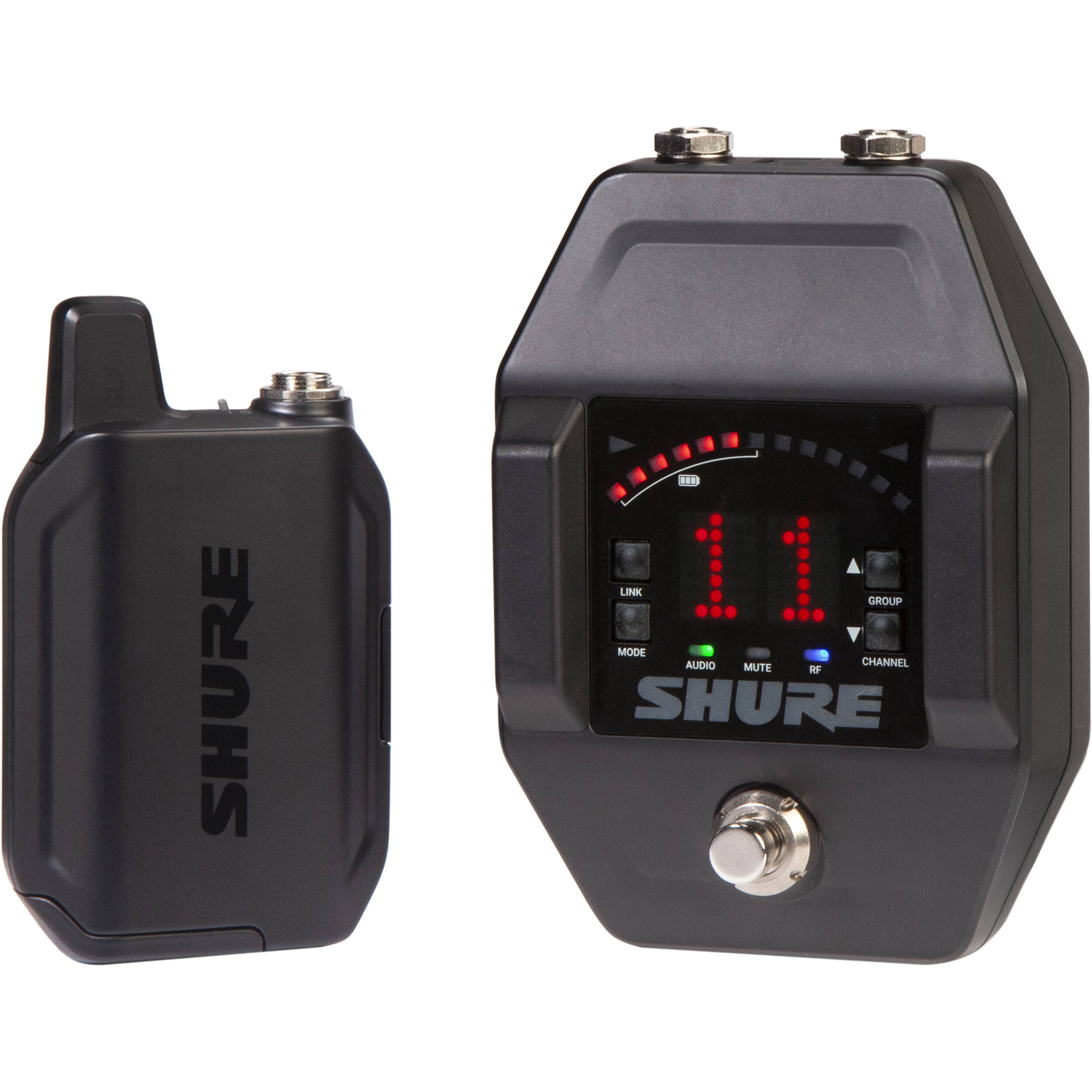

The new Shure GLXD16+ Dual-Band Wireless Guitar Pedal System features the WA305 Premium Guitar Cable, the GLXD1+ Digital Wireless Bodypack transmitter, and the GLXD6+ Guitar Pedal receiver. Go wireless without compromising your tone or complicating your rig. The new GLXD6+ Dual Band Guitar Pedal receiver is engineered in a rugged metal design that can be completely integrated into your pedalboard (9V DC power). The included tuner with a new ¼” guitar input makes it easy to go from practice to live performance, whether you choose to plug directly into the pedal or go wireless. Easily switch between two or more transmitters linked to a single receiver.

Key Features

For Guitar and Bass Players
WA305 Guitar Cable
Lightweight Bodypack Transmitter
Stompbox-Style Pedal Receiver
Pedalboard-Ready for Wired Tuner Use
Auto Scans 2.4 and 5.8 GHz Frequencies

Specifications


System
Wireless Technology	Digital 2.4 GHz/5.8 GHz
Included Transmitters	1 x Bodypack
Diversity	True Digital Diversity
Max Operating Range	30.5 m (Line of Sight)
Max Transmitters per Band	8
Mobile App Compatible	No *As of February, 2023: Cheque with manufacturer for the most up-to-date compatibility
Dynamic Range	120 dBA
Modulation	Proprietary
Receiver
Receiver Type	Stompbox
Mounting Options	Pedalboard (with Included Hardware)
Antenna	2 x External, Fixed (Top-Mount)
Number of Audio Channels	1
Audio I/O	1 x 1/4" TS Female Unbalanced Instrument Input 1 x 1/4" TRS Female Balanced Instrument Output
Audio Output Level	1/4" Output: +8.5 dBV
Frequency Response	20 Hz to 20 kHz (Dependant on Mic)
USB/Lightning Connectivity	1 x USB-C Female (Firmware Update)
Impedance	1/4" Output: 100 Ohms (Balanced) 50 Ohms (Unbalanced)
Approximate RF Sensitivity	-88 dBm
Spurious	Rejection: >35 dB
Power Requirements	AC/DC Power Adapter
AC/DC Power Adapter	9 to 15 VDC at 400 mA (Included)
AC Input Power	100 to 240 VAC, 50 / 60 Hz
Display & Indicators	1 x Backlit LED (Channel, Group) 1 x Multi-Segment LED (Transmitter Battery Status)
Housing	Aluminium
Operating Temperature	0 to 50°C
Dimensions	95 x 48 x 138 mm
Weight	560 g
Transmitter
Transmitter Type	Bodypack
RF Output Power	10 mW (EIRP)
Audio I/O	1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)
Pad	None
Muting	Off/On Switch
Audio Input Level	-8.4 dBV / 7.5 V p-p
Gain Range	-20 to +40 dB (1 dB Steps)
Sync Method	Proprietary
Antenna	1 x Internal, Fixed (Beltpack)
Power Requirements	Battery
Battery Type	1 x Shure SB904 (Included, Replaceable)
Internal Battery Capacity	2420 mAh
Battery Charging Time	.25 to 3 Hours
Approx. Battery Life	12 Hours (Lithium Rechargeable)
USB/Lightning I/O	1 x USB-C (Charging)
Display & Indicators	1 x LED (Battery Status, Sync)
Housing	Metal
Dimensions	67 x 115 x 28.5 mm
Weight	153.1 g (without Batteries)

In The Box

Shure GLXD16+ Dual-Band Wireless Guitar Pedal System
Shure GLXD6+ Dual-Band Wireless Guitar Pedal Receiver
Shure GLXD1+ Dual-Band Wireless Bodypack Transmitter
Shure WA305 1/4" Instrument to TA4F Cable for Shure Transmitters (0.9m)

Reviews

(no ratings yet)

Own or use this product?
Give it a quick rating:

Share your thoughts with other customers:
Write a review

Details

Product: Shure GLXD16+ Dual-Band Wireless Guitar Pedal System
Manufacturer: Shure
Model: GLXD16+
SKU: GLXD16+
RM Product #: 103433
System Type: Instrument System
Warranty: 2 year manufacturer warranty (excluding consumable e.g. lithium-ion batteries).
