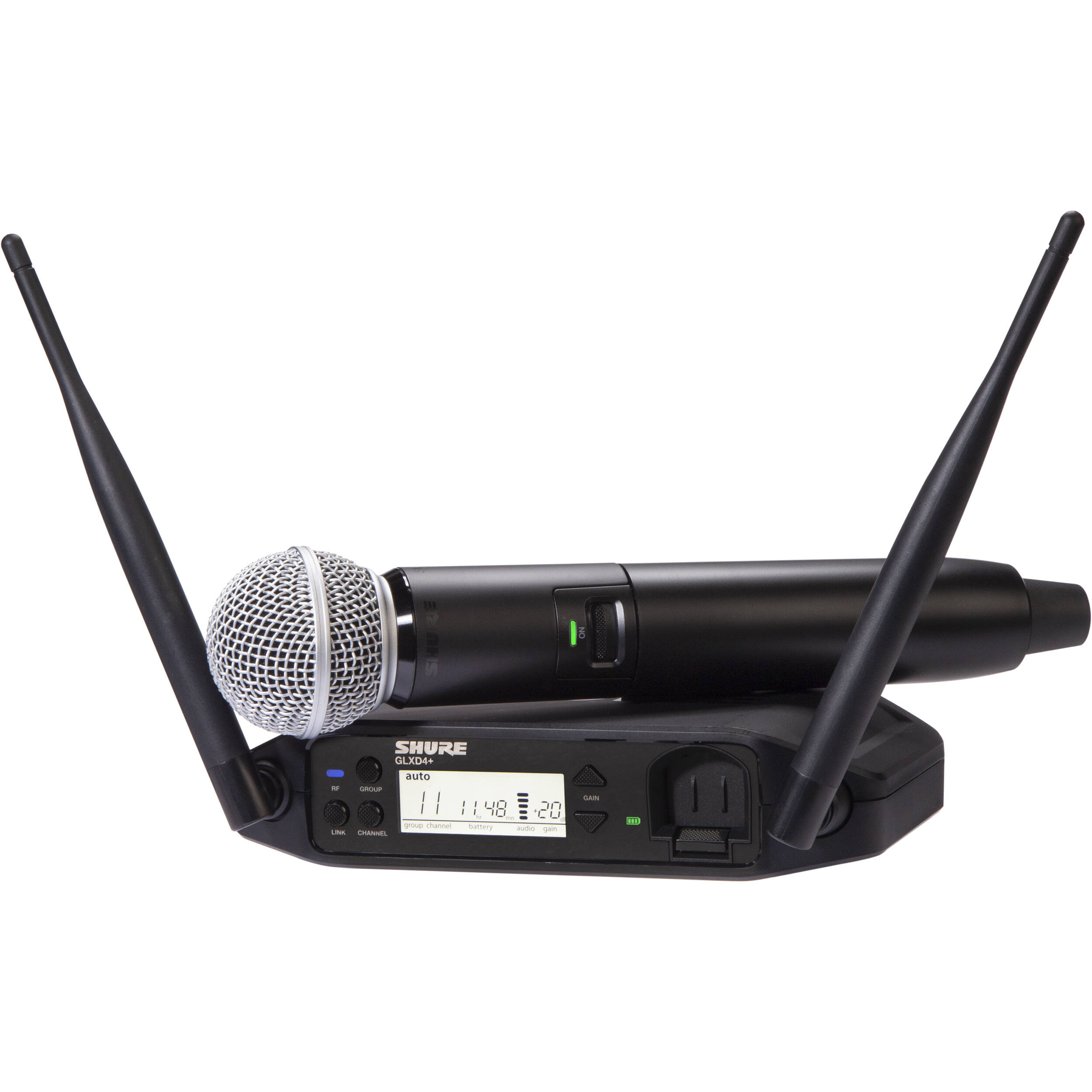

Shure GLXD24+ Dual-Band Wireless Vocal System with SM58 Microphone

Name: Shure GLXD24+ Dual-Band Wireless Vocal System with SM58 Microphone
Brand: Shure
SKU: 103451
Price: 1519.00 NZD
Availability: BackOrder

Product #103451 | SKU GLXD24+-SM58 | Shure

| Write a review


System
Wireless Technology	Digital 2.4 GHz/5.8 GHz
Included Transmitters	1 x Handheld
Diversity	True Digital Diversity
Max Operating Range	100' / 30.5 m (Line of Sight)
Max Transmitters per Band	8
Built-In Recorder	No
Timecode Support	No
Mobile App Compatible	No *As of February, 2023: Cheque with manufacturer for the most up-to-date compatibility
Dynamic Range	120 dBA
Modulation	Proprietary
Receiver
Receiver Type	Tabletop
Antenna	2 x 1/2 Wave Sleeve Dipole, Fixed (Front-Mount)
Number of Audio Channels	1
Audio I/O	1 x XLR 3-Pin Male Balanced Mic/Line Output 1 x 1/4" TRS Female Balanced/Unbalanced Output
Gain Range	-20 to +40 dB (1 dB Steps)
Audio Output Level	XLR Output: +1 dBV 1/4" Output: +8.5 dBV
Phantom Power Protection	On 1/4", XLR Outputs
Frequency Response	20 Hz to 20 kHz (Dependant on Mic)
Network I/O	None
Word Clock I/O	None
USB/Lightning Connectivity	1 x USB-C Female (Firmware Update)
Impedance	XLR Output: 100 Ohms (Balanced) 1/4" Output: 100 Ohms (Balanced) 50 Ohms (Unbalanced)
RF Output Power	10 mW (EIRP, Max)
Spurious	Rejection: >35 dB
Power Requirements	AC/DC Power Adapter
AC/DC Power Adapter	14.5 to 17 VDC at 600 mA (Included)
AC Input Power	100 to 240 VAC, 50 / 60 Hz
Display & Indicators	1 x Backlit LCD (AF Level, Channel, Frequency, Group, Transmitter Battery Status)
Housing	ABS
Operating Temperature	32 to 113°F / 0 to 45°C
Dimensions	7.2 x 1.6 x 4.8" / 183 x 40 x 122 mm
Weight	10.9 oz / 310 g
Transmitter
Transmitter Type	Handheld
RF Output Power	10 mW (EIRP)
Audio I/O	None
Pad	None
Muting	Off/On Switch
Auto-Level Control	No
Gain Range	-18 to +42 dB (1 dB Steps)
Sync Method	Proprietary
Antenna	1 x External, Fixed (Handheld)
Power Requirements	Battery
Battery Type	1 x Shure SB904 (Included, Replaceable)
Internal Battery Capacity	2420 mAh
Battery Charging Time	.25 to 3 Hours
Approx. Battery Life	12 Hours (Lithium Rechargeable)
USB/Lightning I/O	1 x USB-C (Charging)
Display & Indicators	1 x LED (Battery Status, Sync)
Housing	Metal, Plastic
Dimensions	2 x 9.7 x 1.5" / 51 x 246 x 37 mm (without Antennas)
Weight	9.7 oz / 275 g (without Batteries)
Microphone
Microphone Type	Handheld
Colour	Black
Sound Field	Mono
Capsule	Dynamic
Polar Pattern	Cardioid
Frequency Range	50 Hz to 15 kHz
Impedance	300 Ohms
Sensitivity	-54.5 dBV/Pa
