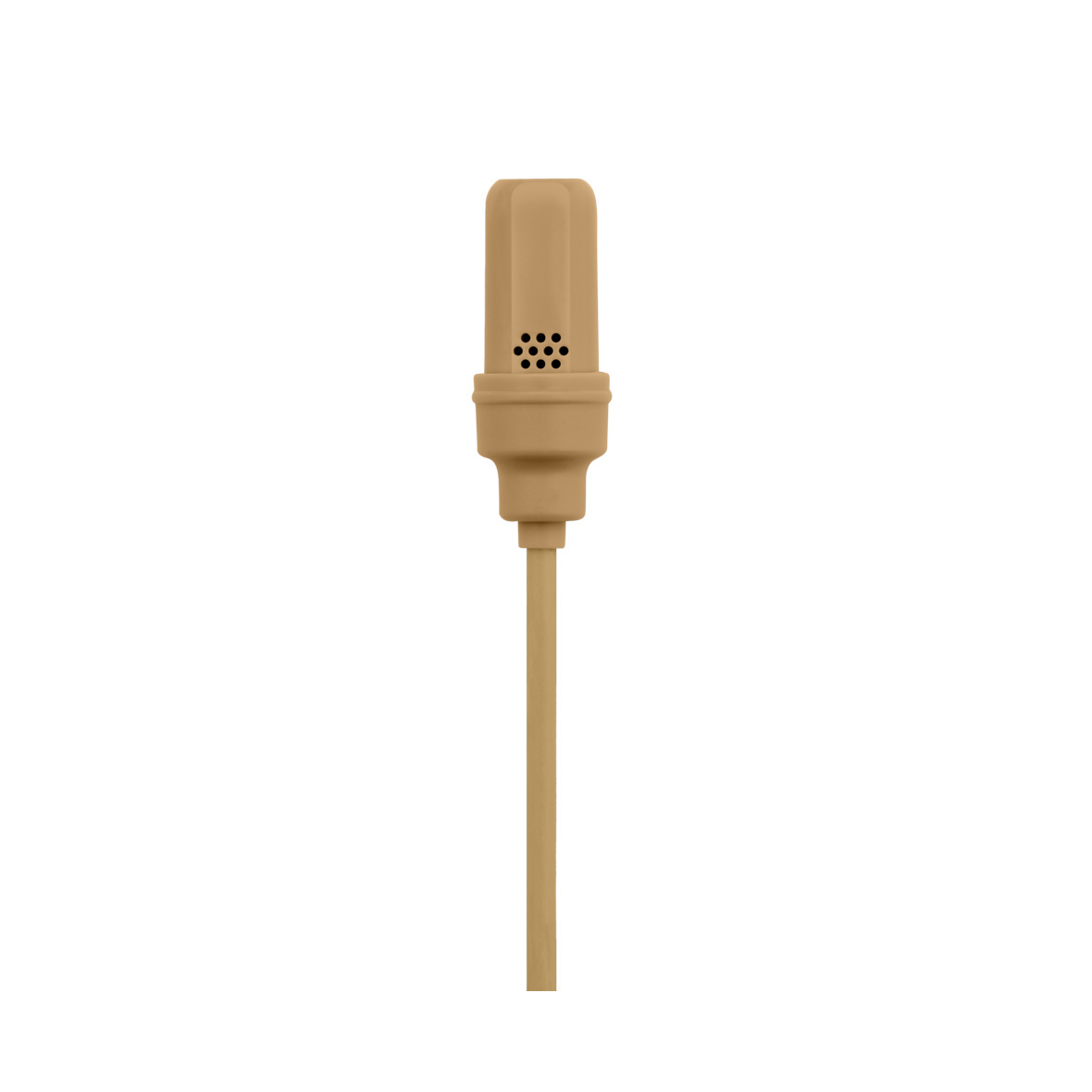

Shure UniPlex UL4 Cardioid Subminiature Lavalier Microphone (Tan, TA4F)
Features
- Professional MEMS Lavalier Microphone
- Includes Single Tie Clip & Snap Fit Windscreen
- Frequency Response of 40 Hz to 20 kHz
- Sensitivity of -42.5 dBV/Pa (Pa=94 dB SPL)
- TA4F Connection
- Tan Colour
Description
The Shure UniPlex UL4 is a professional MEMS lavalier microphone that is ideal for speech and performance applications in broadcast, corporate, and conference environments. The subminiature design and custom cardioid element provide robust audio performance. Each microphone is supplied with a storage pouch, single tie clip, and snap fit windscreen. The advanced 1.6 mm Shure Plex cable, first introduced with the award-winning TwinPlex subminiature microphone, lasts longer than competing cables due to a dual redundant ground which doubles as a secondary shield. It also offers virtually zero “memory effect,” won’t kink, and is fully paintable.
Key Features:
- 5 mm cardioid subminiature design for discrete placement and improved gain-before-feedback
- Professional sound quality for speech and presentation applications
- Advanced 1.6 mm Shure Plex cable: Dual redundant ground in cable serves as secondary shield for unprecedented longevity Immune to memory effect and kinks Fully paintable with typical theatre paints, pens, and polishes
- Kit includes the following accessories: Case, Snap-fit Windscreen, Single Tie Clip
*NOTE: Shure UniPlex UL4 lavalier microphone with LEMO termination is compatible only with Shure LEMO bodypack transmitters and preamplifiers.
Specifications
| Microphone Capsule | MEMS |
| Polar Pattern | Cardioid |
| Frequency Response | 40 Hz to 20 kHz |
| Sensitivity | -42.5 dBV/Pa (Pa=94 dB SPL) |
| Self-Noise | 32 dB SPL-A, A-weighted, Equivalent Acoustical |
| Signal-to-Noise Ratio | 62 dB-A Maximum SPL130.0 dB SPL 1 kHz @ 1% THD, typical |
| Dynamic Range | 98 dB Typical |
| Microphone Current Draw | 530 µA, maximum |
| Bias Voltage, Recommended Operating Voltage | 3.5-5 VDC (5.5VDC MAX) |
| Housing | Molded ABS |
| Polarity | MTQG: Positive Pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1LEMO: Positive pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1 |
| Cable Diameter | 1.6 mm |
| Cable Length | 66.0 in (1.67 m) |
| Net Weight | 12.5 g (0.44 oz) |
| Capsule Dimensions (L × D) | 17 mm × 5 mm |
In The Box
- Shure UniPlex UL4 Cardioid Subminiature Lavalier Microphone (Tan, TA4F)
- Single Tie Clip
- Snap-Fit Windscreen
- Case
- Threaded TA4F Adapter
Reviews
(no ratings yet)Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Shure UniPlex UL4 Cardioid Subminiature Lavalier Microphone (Tan, TA4F)
- Manufacturer: Shure
- Model: UL4T-C-MTQG
- SKU: UL4T-C-MTQG
- RM Product #: 100108
- Polar Pattern: Cardioid
- Element Type: Dynamic
- Warranty: 2 year manufacturer warranty (excluding consumable e.g. lithium-ion batteries).
