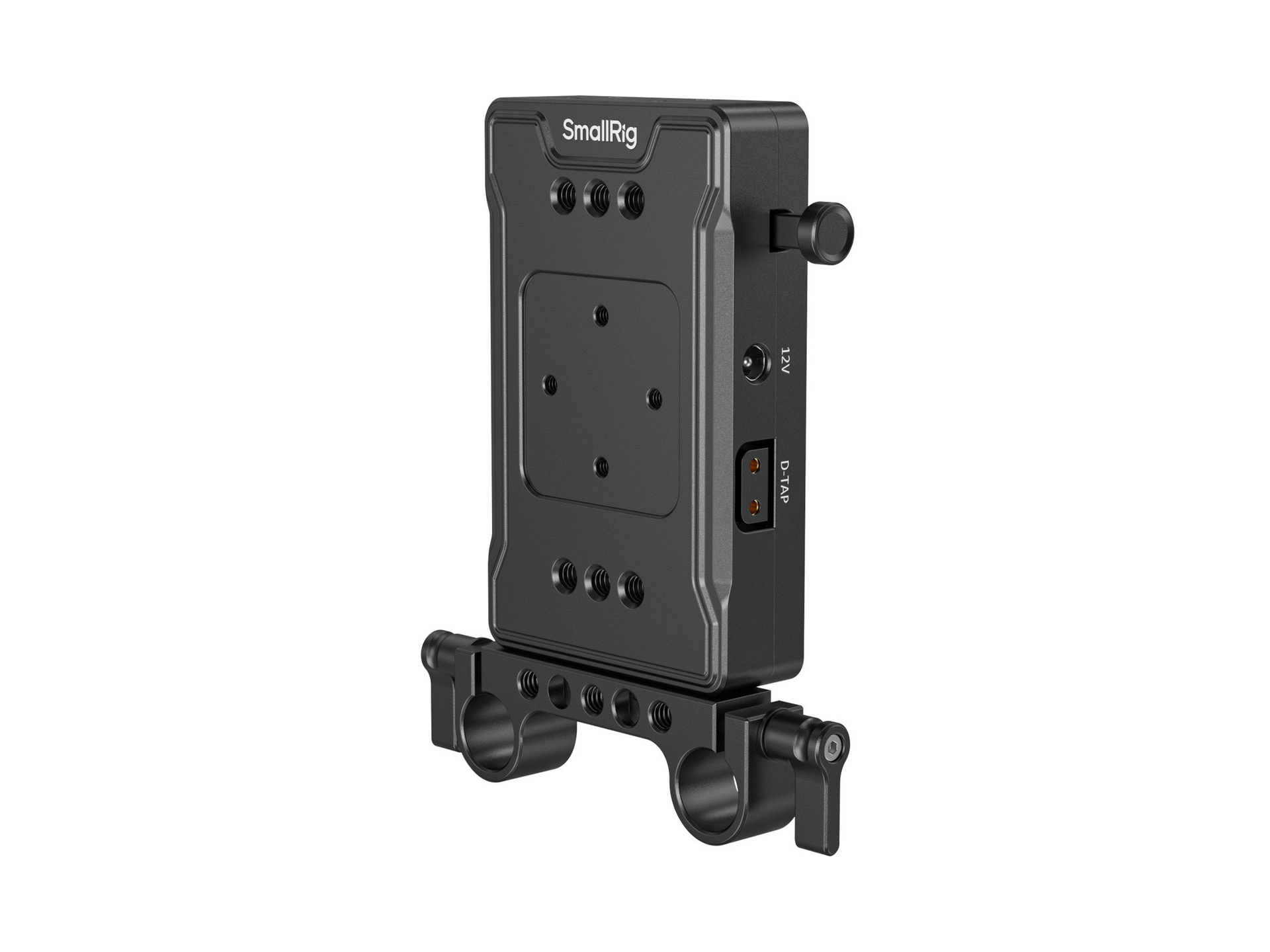

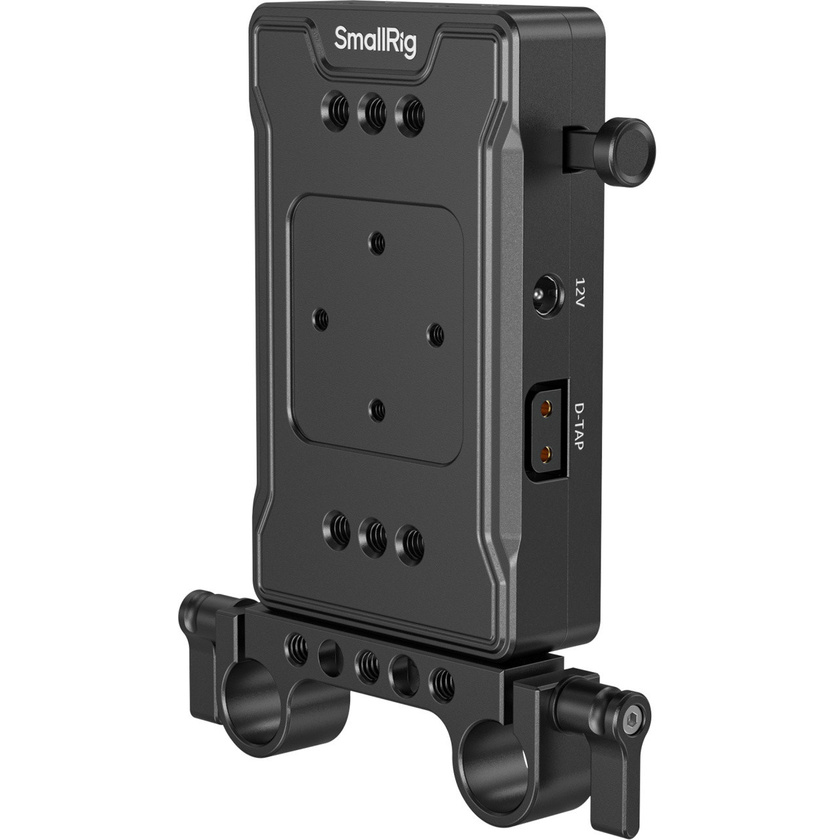

The SmallRig 3498B V Mount Battery Adapter Plate (Basic Version) with Dual Rod Clamp can be quickly attached to a 15mm rod system. This battery adapter plate features a standard V-Mount lock that is compatible with most V-Mount batteries. It incorporates six 1/4"-20 threaded holes and ten M4 threaded holes on the back, as well as five 1/4"-20 threaded holes on the top and bottom, allowing for the attachment of a dual rod clamp and other accessories.
It is equipped with two USB-C input/output ports (65W Max.) that support PD protocol, and one USB-A output port, that supports QC protocol, for fast charging and discharging. Additionally, it has two D-Tap input/output ports (14.8V) and two DC output ports (DC5521 8V x 1 / DC5525 12V x 1) for versatile power solutions.
The power and charging mode indicator lights show the working status and whether fast or slow charging is in effect. The power on / off button can control multiple ports simultaneously. Furthermore, the adapter plate is constructed from high-strength aluminum alloy, providing robust durability and excellent heat dissipation.
Certifications: FCC、CE、ISED、RoHS
Note:
Do not use it in a damp environment to avoid short circuits.
When the indicator light keeps flashing, it means the working temperature exceeds 65℃ / 149°F. Please suspend its use.
Please do not drop the product, use it under high temperatures or when a short circuit occurs.
