SmallRig 3580B VB99 mini V Mount Battery

Product #118139 | SKU 3580B | SmallRig
In stock Ships Monday
SAVE $74
Sale Price $295
was $369.00
In stock Ships Monday
YOU SAVE $74
- +
ON SALE in Sales & Promotions until 14 Jul 11pm or while stock lasts

Shipping & Availability
Ships Monday. Deliver to Auckland for $18 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 3 - 4 working days
Click & Collect

Features

  • BMS intelligent chip
  • Top-class LG battery cells
  • Highly integrated design
  • Fire-proof PC material
  • Smart switch button

Description

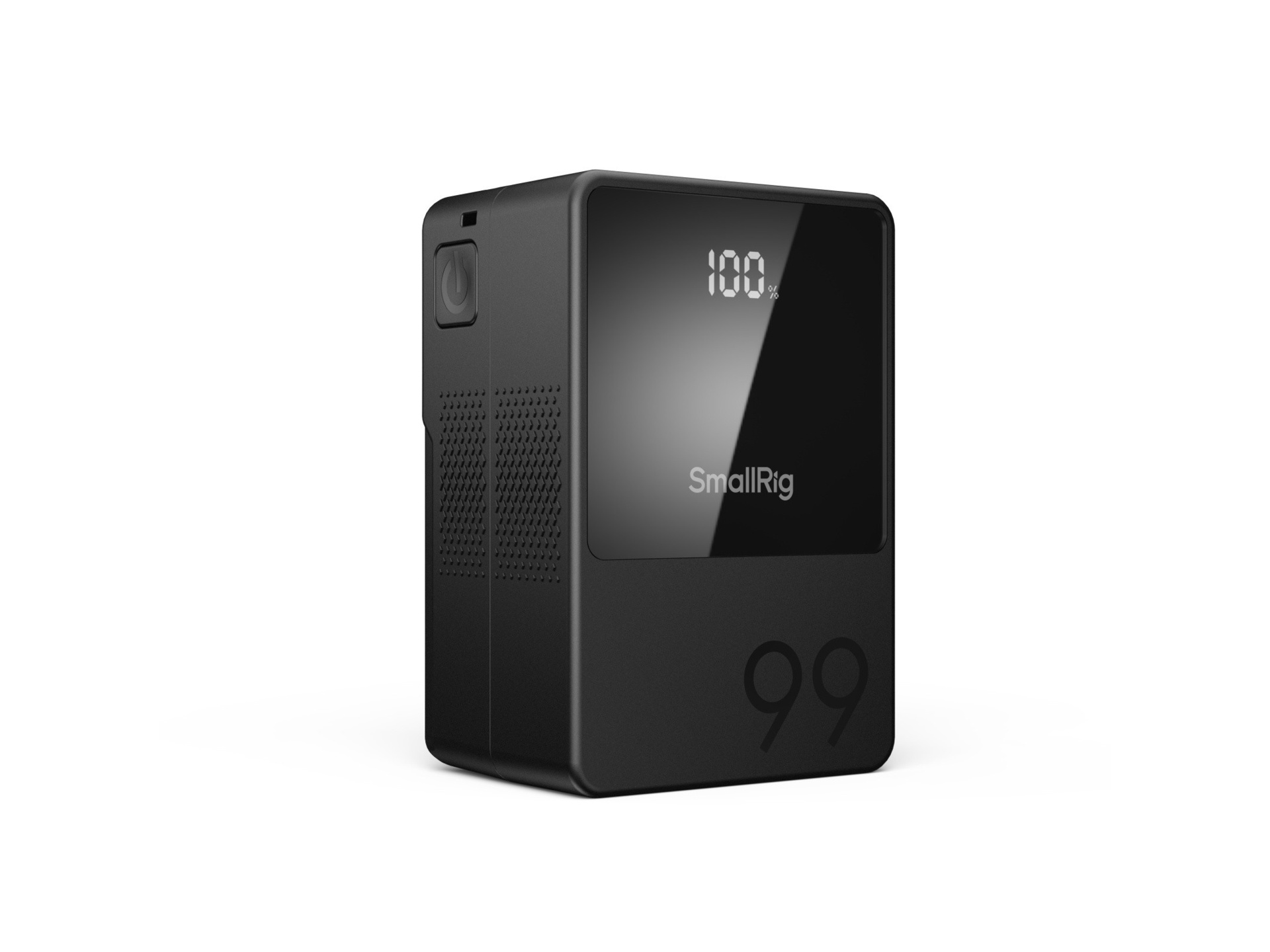

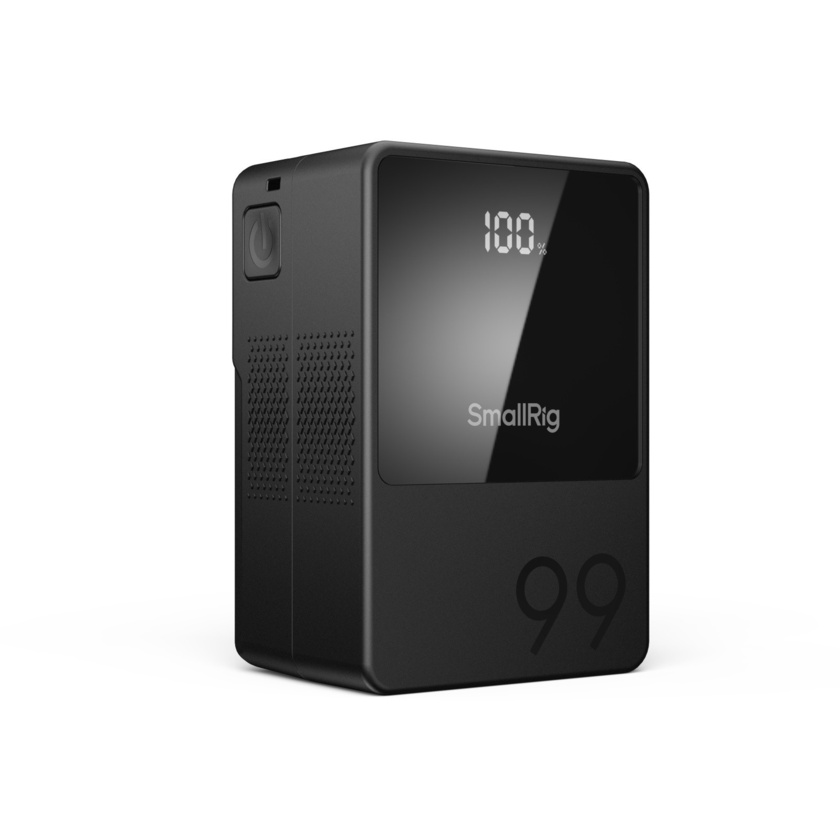

The SmallRig 3580B VB99 mini V Mount Battery is a compact V-mount battery featuring a highly integrated design that effectively reduces the battery's overall size, making it lightweight and portable. It features LG A-grade 18650 high-rate cells, ensuring accurate capacity, cycle performance, and exceptional stability. Designed to meet international standards such as MSDS / UN38.3 / IEC 62133 / UL2054 / UL 62368, it has obtained certifications including CCC / FCC / CE / RoHS / ISED / RCM / PSE / KC / BIS / TISI, ensuring safe and reliable operation for users. The battery is equipped with a BP, a D-Tap, an 8V-OUT DC, a 12V-OUT DC, a USB-C, and a USB-A ports offering a wide range of interfaces for powering multiple devices simultaneously. This includes cameras, mirrorless cameras, monitors, transmitters, video lights, smartphones, tablets, laptops, and more, providing integrated and efficient power supply for all your needs. The battery features a highly integrated fast-charging protocol chip, MCU, boost/buck control chip, and Battery Management System (BMS), offering multiple protections including overcurrent, short circuit, over-temperature, and over-voltage. Additionally, it supports various fast-charging protocols such as PD, QC, and PPS, and enables 100W USB-C bi-directional PD fast charging. The battery exterior is made of fire-resistant PC material, heat-resistant, and flame-retardant, ensuring durability. It features an OLED screen that clearly displays battery level, remaining usage time, voltage, power, and other information, allowing you to accurately monitor the battery status. Featuring a suite of robust safety features, this device instills the confidence to capture every memorable moment with precision and reliability.

Certification: CCC / FCC / CE / RoHS / ISED / RCM / PSE / KC / BIS / TISI

Specifications

Product Dimensions 107.0 × 72.0 × 52.2mm / 4.2 × 2.8 × 2.1in
Package Dimensions 146.0 × 113.0 × 74.0mm / 5.8 × 4.5 × 2.9in
Product Weight 584.6g ± 10g / 20.6oz ± 0.4oz
Package Weight 797.6g ± 10g / 28.1oz ± 0.4oz
Material(s) Fire-Resistant PC Material
Capacity 14.54V 6800mAh 98.872Wh
Rated Discharge Power 100W
Input
USB-C 100W(Max)
D-Tap / BP 6.84A(Max)
Output
USB-C 5V⎓3A﹑9V⎓3A﹑12V⎓3A﹑15V⎓3A﹑20V⎓5A(Max)
USB-A 5V⎓3A﹑9V⎓3A﹑12V⎓2A(Max)
BP/D-Tap 10A(Max)
8V-OUT 8V⎓3A(Max)
12V-OUT 12V⎓3A(Max)
Charging Protocols
USB-C PD3.0 / QC2.0 / QC3.0 / PPS / DCP-1.5A / APPLE-2.4A
USB-A QC2.0 / QC3.0 / DCP-1.5A / APPLE-2.4A
Cutoff Voltage 11.2V
Operating Temperature -15℃ to 60℃ / 5℉ to 140℉
Charging Temperature 0℃ to 45℃ / 32℉ to 113℉
Optional Charging Methods BP port charger, 16.8V D-Tap charger, USB-C

In The Box

  • VB99 mini V Mount Battery 3580B x 1
  • SmallRig Custom Sticker Set x 1
  • User Manual x 1
  • Operation Guide x 1
  • Guarantee Card x 1

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: SmallRig 3580B VB99 mini V Mount Battery
  • Manufacturer: SmallRig
  • Model: 3580B
  • SKU: 3580B
  • RM Product #: 118139
  • Battery Mount / Series: V-Mount
  • Batteries / Chargers: Batteries Only
  • Wattage / mAh: 6800mAh
  • Battery: Lithium-Ion
  • Warranty: 1 year manufacturer warranty
